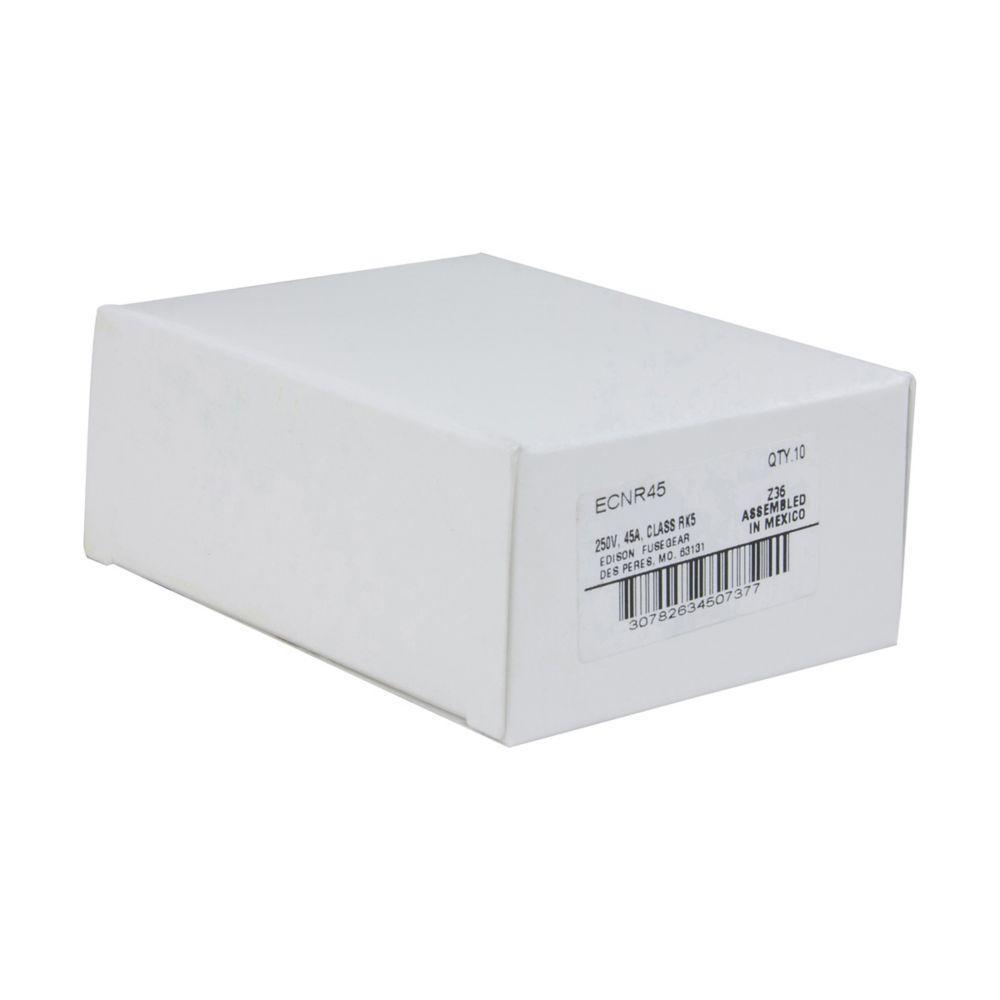

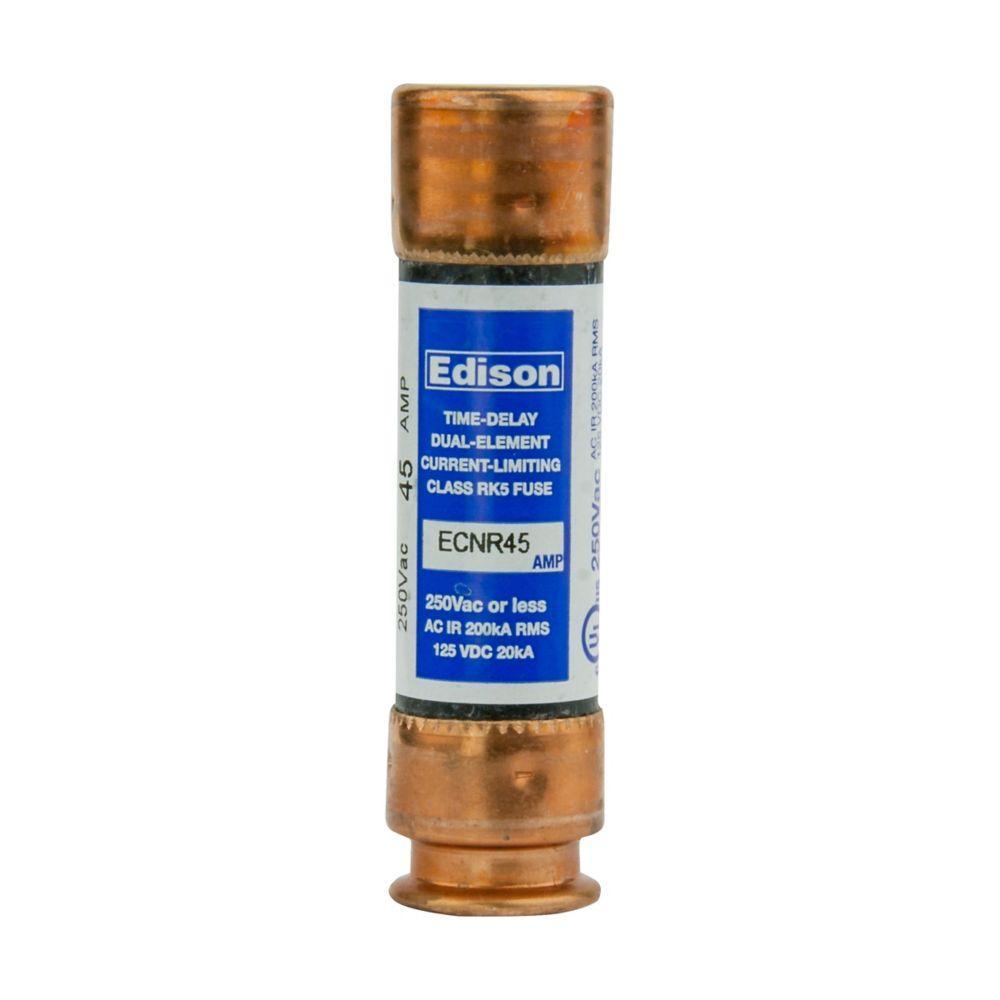

Bussmann Edison ECNR45 Current Limiting Time Delay Fuse, 45 A, 250 V AC/125 V DC, 200 kAIC Interrupt, RK5 Class
Edison's UL Class RK5 dual-element, time-delay fuses provide economical solutions to overcurrent protectioni. Available in both 250Vac and 600Vac, with 200kA RMS Sym interrupting ratings and sizes ranging from 0 to 600 amp.
-
BrandEdison
-
UPC782634507376
-
Manufacturer Part NumberECNR45
-
CountryUSA
-
Terminal TypeFerrule End
-
MaterialFiberglass
-
ClassRK5
-
Response Time10 s at 500%
-
TypeCurrent Limiting Time Delay
-
Voltage Rating250 V AC/125 V DC
-
Amperage Rating45 A
-
SeriesECNR
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating200 kAIC
-
Body Size0.81 in Dia x 3 in L
-
ElementDual
- Superior overload and cycling capabilities
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 12W257 |
-
UNSPSC39121606
-
IDEA Index ID11197137
-
Package DescriptionEACH
-
Standards/ApprovalsCE Certified|CSA C22.2|UL Listed
-
Catalog
-
Specification Sheet
