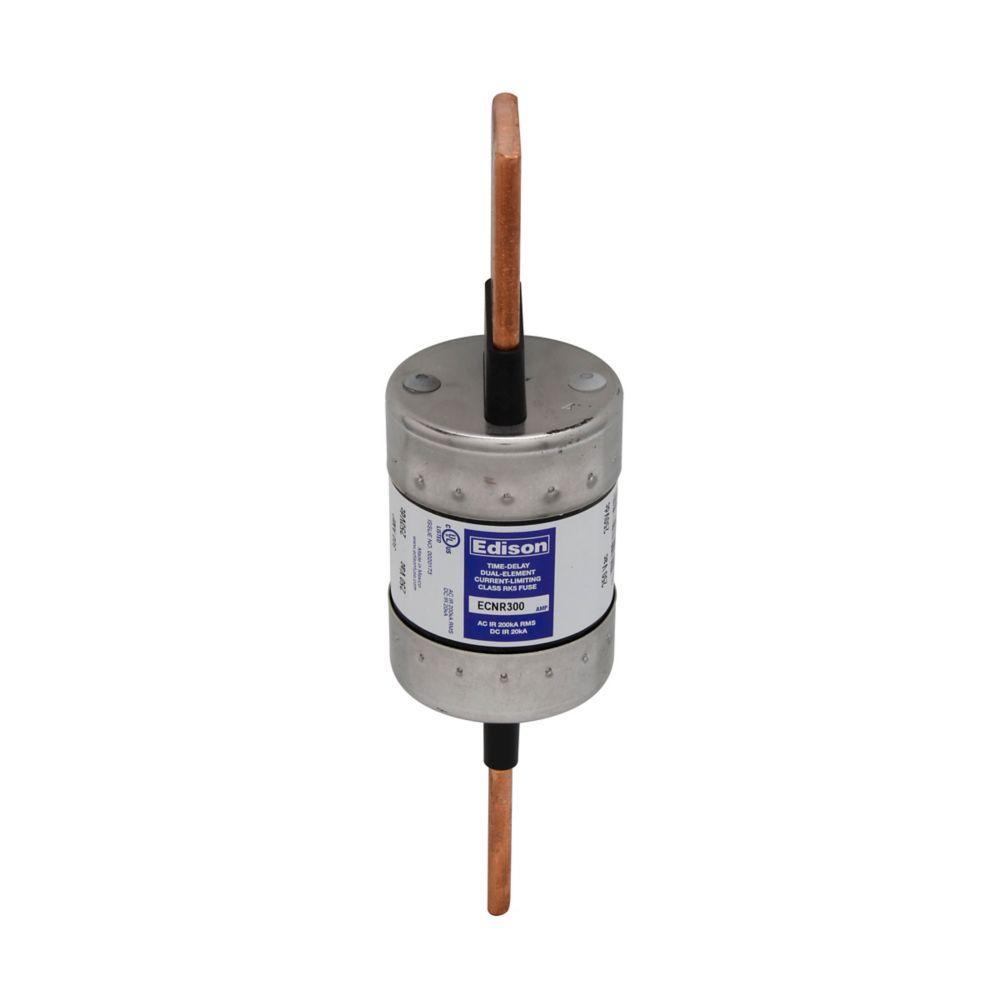

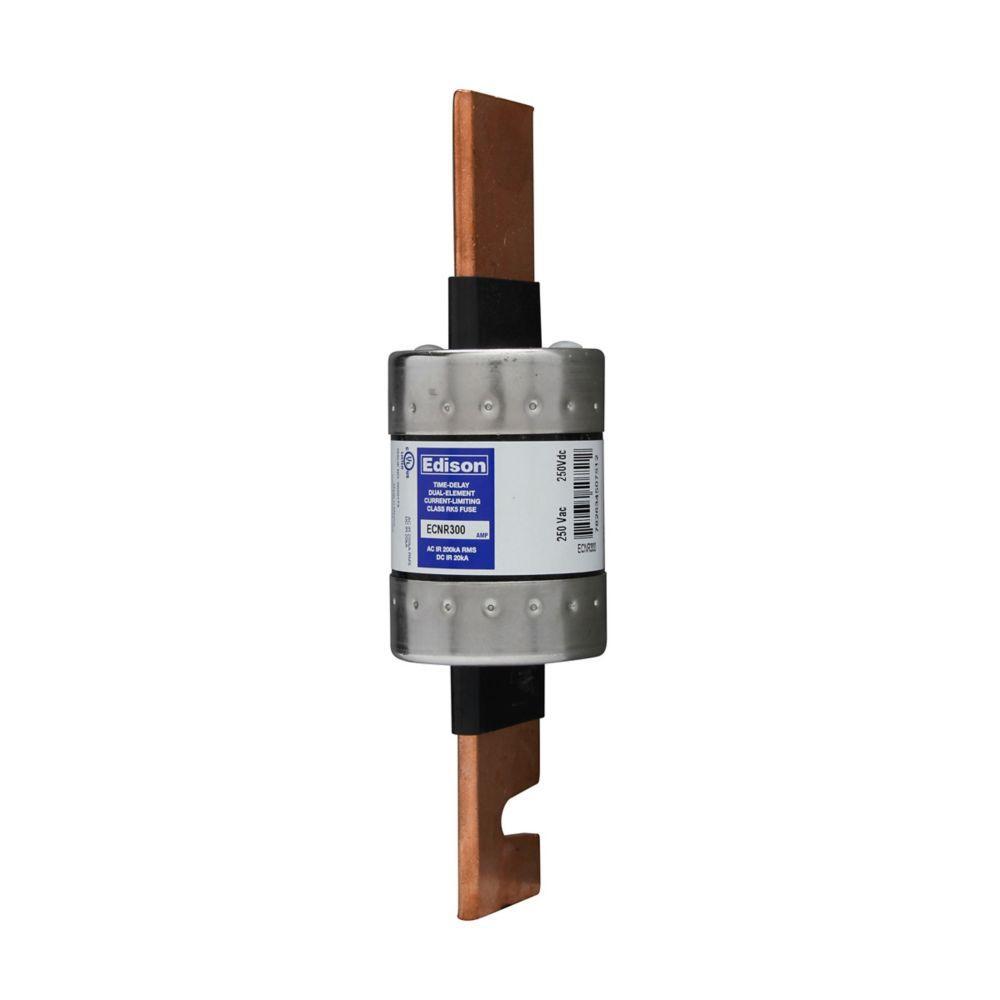

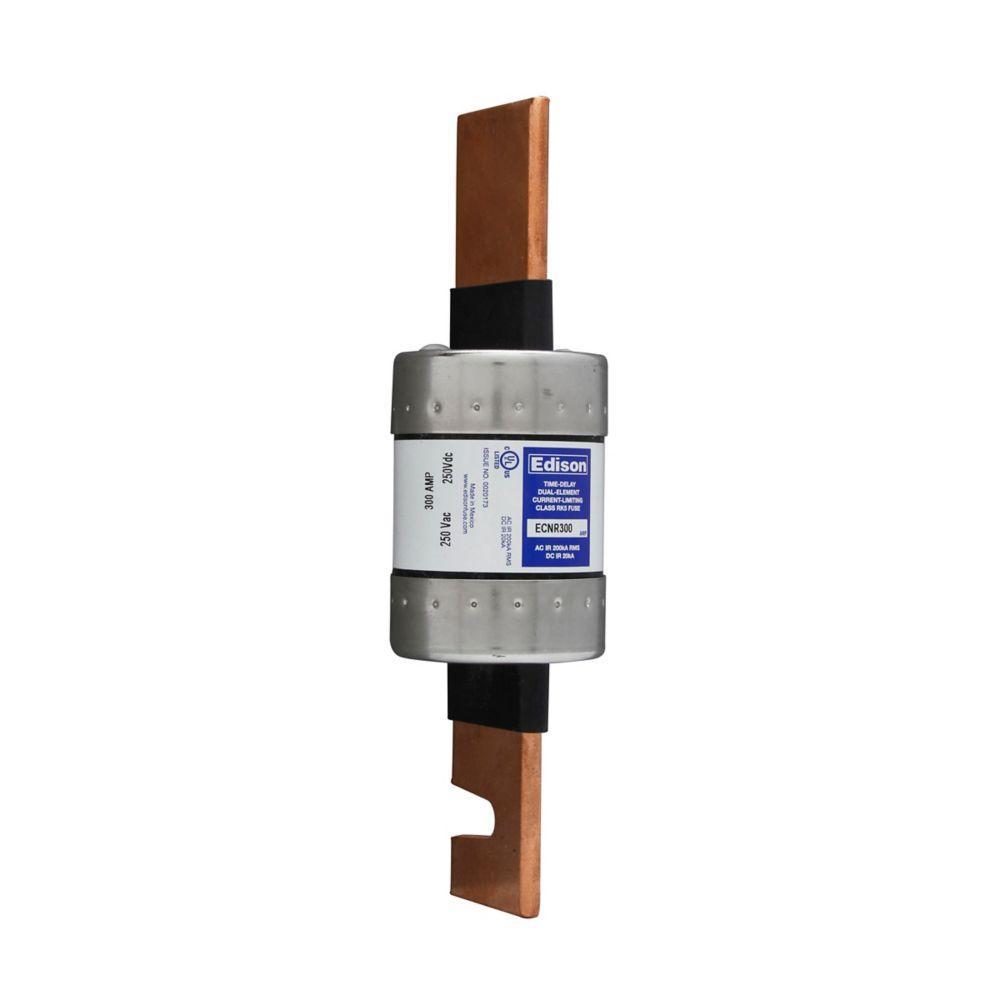

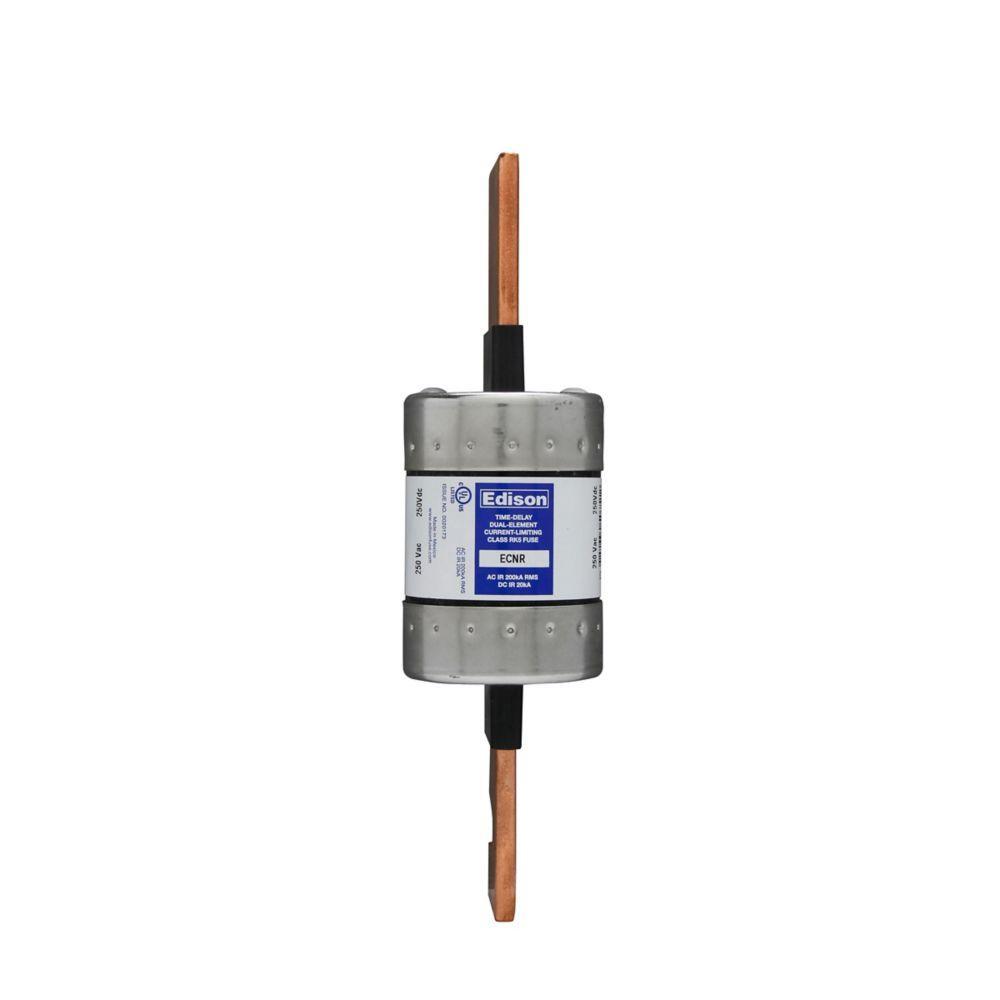

Edison ECNR300 ECNR Current Limiting Time Delay Fuse, 300 A, 250 V AC/125 V DC, 200 kAIC Interrupt, Class: RK5, Cylindrical Body
Edison's UL Class RK5 dual-element, time-delay fuses provide economical solutions to overcurrent protectioni. Available in both 250Vac and 600Vac, with 200kA RMS Sym interrupting ratings and sizes ranging from 0 to 600 amp.
-
BrandEdison
-
UPC782634507512
-
Manufacturer Part NumberECNR300
-
CountryUSA
-
Terminal TypeBlade End
-
MaterialFiberglass
-
ClassRK5
-
Response Time10 s at 500%
-
TypeCurrent Limiting Time Delay
-
Voltage Rating250 V AC/125 V DC
-
Amperage Rating300 A
-
SeriesECNR
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating200 kAIC
-
Body Size2.38 in Dia x 8.63 in L
-
Body TypeCylindrical
-
ElementDual
- Superior overload and cycling capabilities
-
Alternative Part Number11197146|16876324
-
UNSPSC39121606
-
IDEA Index ID11197146
-
Package DescriptionEACH
-
Standards/ApprovalsCE Certified|CSA C22.2|UL Listed
-
Specification Sheet
