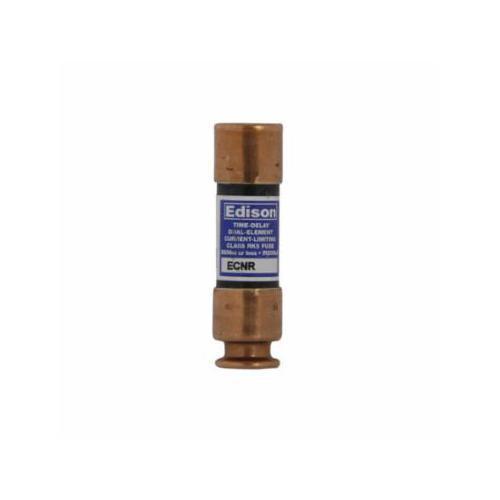

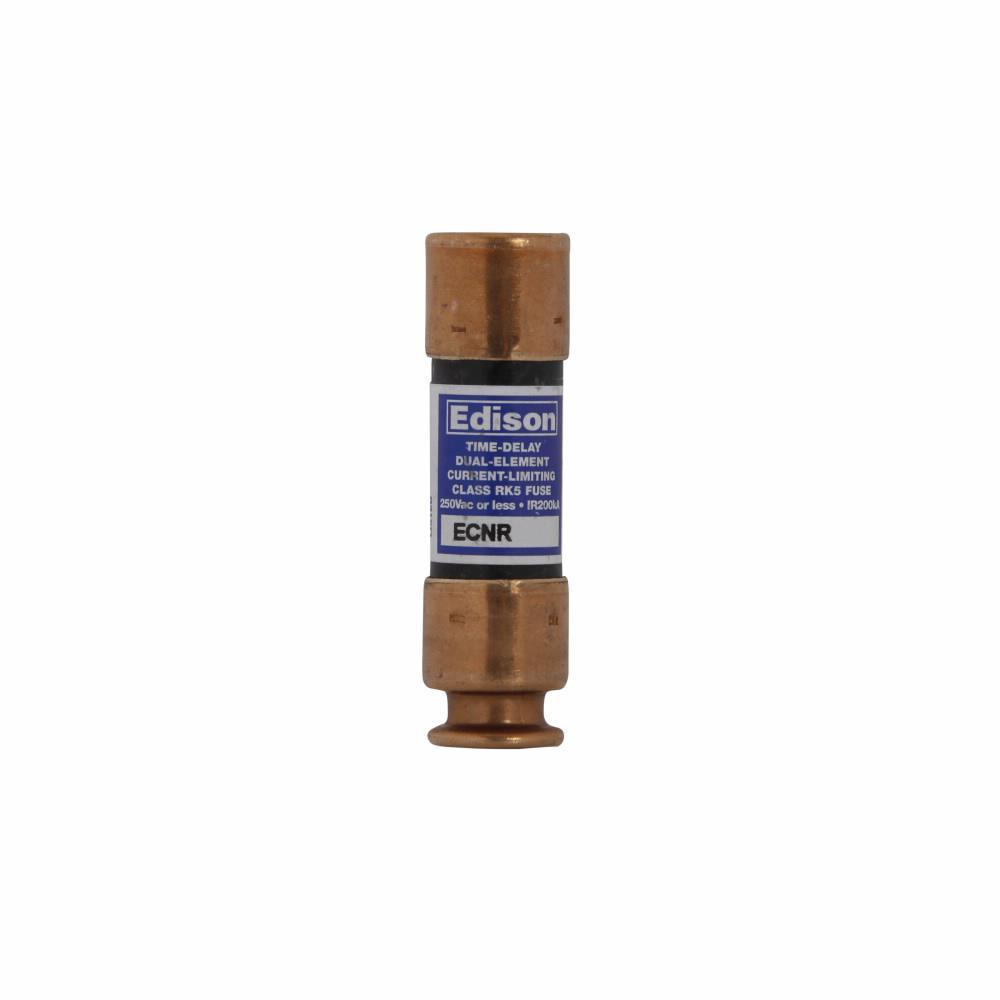

Bussmann Bulletâ„¢ ECNR20 Current Limiting Time Delay Fuse, 20 A, 250 V AC/125 V DC, 200 kAIC Interrupt, RK5 Class, Cylindrical Body
$3.69
In Stock
SKU: EDIECNR20
GTIN (EAN,ISBN): 00782634507321
Edison's UL Class RK5 dual-element, time-delay fuses provide economical solutions to overcurrent protectioni. Available in both 250Vac and 600Vac, with 200kA RMS Sym interrupting ratings and sizes ranging from 0 to 600 amp.
In Stock
HCI of Jackson: 2
HCI of Dyersburg: 0
HCI of Humboldt: 0
HCI of Union City: 0
HCI of Gallatin: 0
Back to: Class RK5 Fuses
Main specs
-
BrandEdison
-
UPC782634507321
-
Manufacturer Part NumberECNR20
-
CountryUSA
Specification
-
Terminal TypeFerrule End
-
MaterialFiberglass
-
ClassRK5
-
Rejection/Non-RejectionRejection
-
Response Time10 s at 500%
-
TypeCurrent Limiting Time Delay
-
Voltage Rating250 V AC/125 V DC
-
Amperage Rating20 A
-
SeriesECNR
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating200 kAIC
-
Body Size0.56 in Dia x 2 in L
-
Body TypeCylindrical
-
ElementDual
Features
- Provides motor overload, ground fault and short circuit protection
- Helps protect motors against burnout from overloads
- Helps protect motors against burnout from 1 ph on 3 ph systems
- Simplifies and improves blackout prevention (selective co-ordination ratios)
- Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
- The overload element provides protection against low level overcurrent of overloads and will hold an overload which is 5X greater than the amperage rating of the fuse for a minimum of 10 s
- Superior overload and cycling capabilities
Competitor Information
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 13M230 |
Additional Information
-
Alternative Part Number11197132
-
UNSPSC39121606
-
IDEA Index ID11197132
-
Package DescriptionEACH
-
Standards/ApprovalsCE Marked
