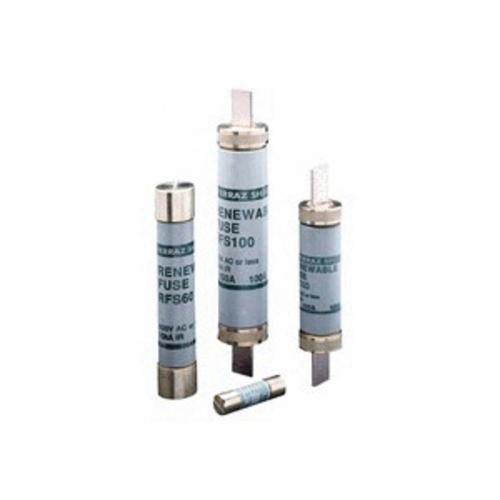

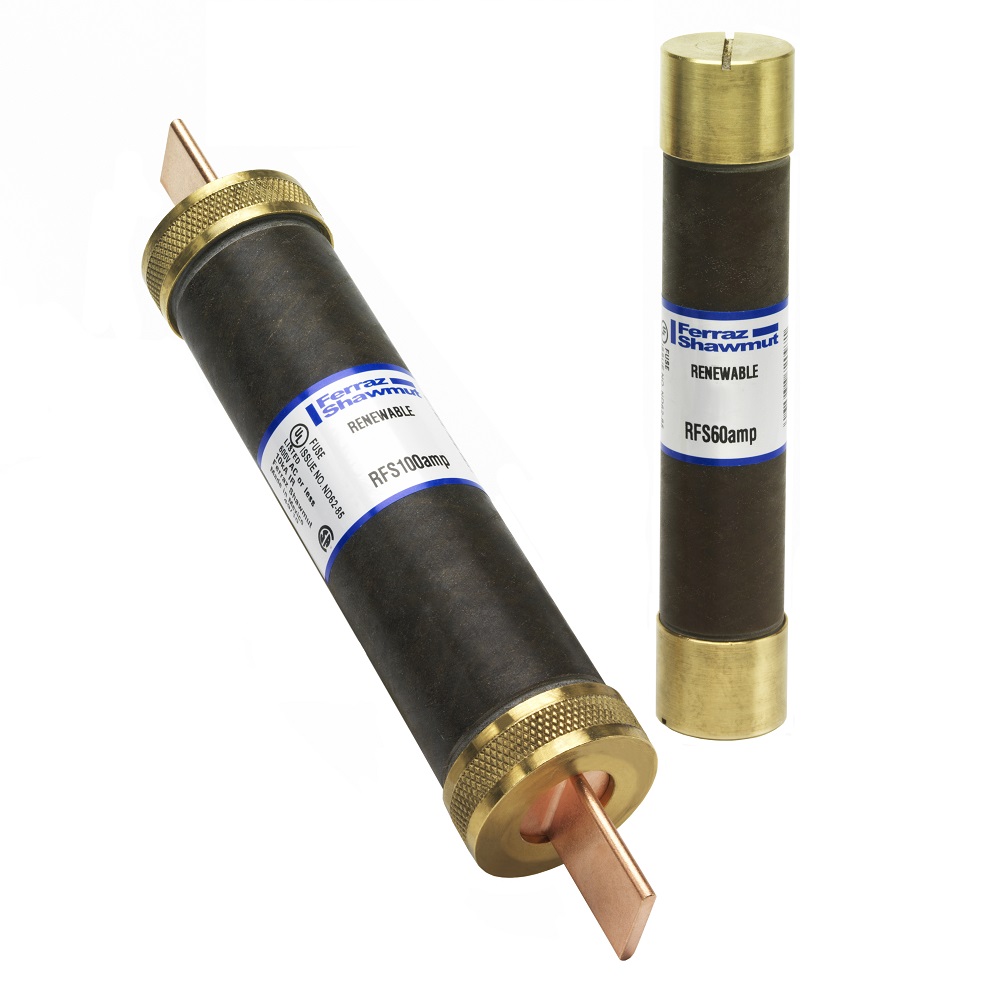

Mersen RFS20 Low Voltage Renewable Fast Acting Fuse, 20 A, 600 V AC, 10 kA Interrupt, H Class, Cylindrical Body
RFS general purpose Class H renewable fuses are suitable for application where available short-circuit currents do not exceed 10,000 amperes. For replacement fuse links select RLS series die-cut zinc replacement links from 3 to 600 amperes in 30 ratings.
-
BrandMersen
-
UPC068938720810
-
Manufacturer Part NumberRFS20
-
CountryUSA|Canada
-
Terminal TypeFerrule
-
ClassH
-
TypeLow Voltage Renewable
-
Mounting TypeClip
-
Voltage Rating600 V AC
-
Amperage Rating20 A
-
SeriesRFS
-
Interrupt Rating10 kA
-
Body Size13/16 in Dia x 5 in L
-
Body TypeCylindrical
- Knurled bushings for ease of disassembly
- Rugged construction for maximum service life
- Precision die-cut renewal links renew quickly and give repeatable performance
- 32 renewable link ratings
- North American power fuses
- Brass contact
-
Alternative Part Number7645081
-
UNSPSC39121627
-
IDEA Index ID7645081
-
Package DescriptionEACH
-
Standards/ApprovalsUL 248-7 File No. E2137|CSA C22.2 No.248.7
-
Specification Sheet
-
Line Drawing
