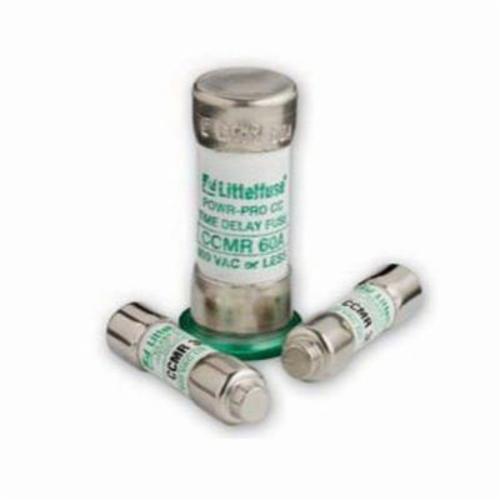

Littelfuse 4-AMP 600-VOLT AC TD FUSES LIT CCMR-4
The CCMR series is ideal for space saving protection of motors up to 40 hp. It was designed specifically to withstand sustained starting currents of small motors. The CCMR 60 fuse is the smallest 60 A fuse available rated at 600 V. Compared to other UL Listed fuses, class CC fuses are the most current limiting, rating for rating.
-
BrandLittelfuse®
-
UPC007945896824
-
Manufacturer Part NumberCCMR-4
-
CountryUSA|Canada
-
Terminal TypeFerrule
-
ClassCC
-
TypeCurrent Limiting
-
Mounting TypeHolder
-
Voltage Rating600 V AC/250 V DC
-
Amperage Rating4 A
-
SeriesCCMR
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating200/20 kA
-
Body Size0.41 in Dia x 1.5 in L
-
Body TypeCartridge
-
ElementDual
- POWR-PRO® performance
-
UNSPSC39121604
-
Standards/ApprovalsUL File No E81895|CSA File No LR29862|RoHS Compliant
