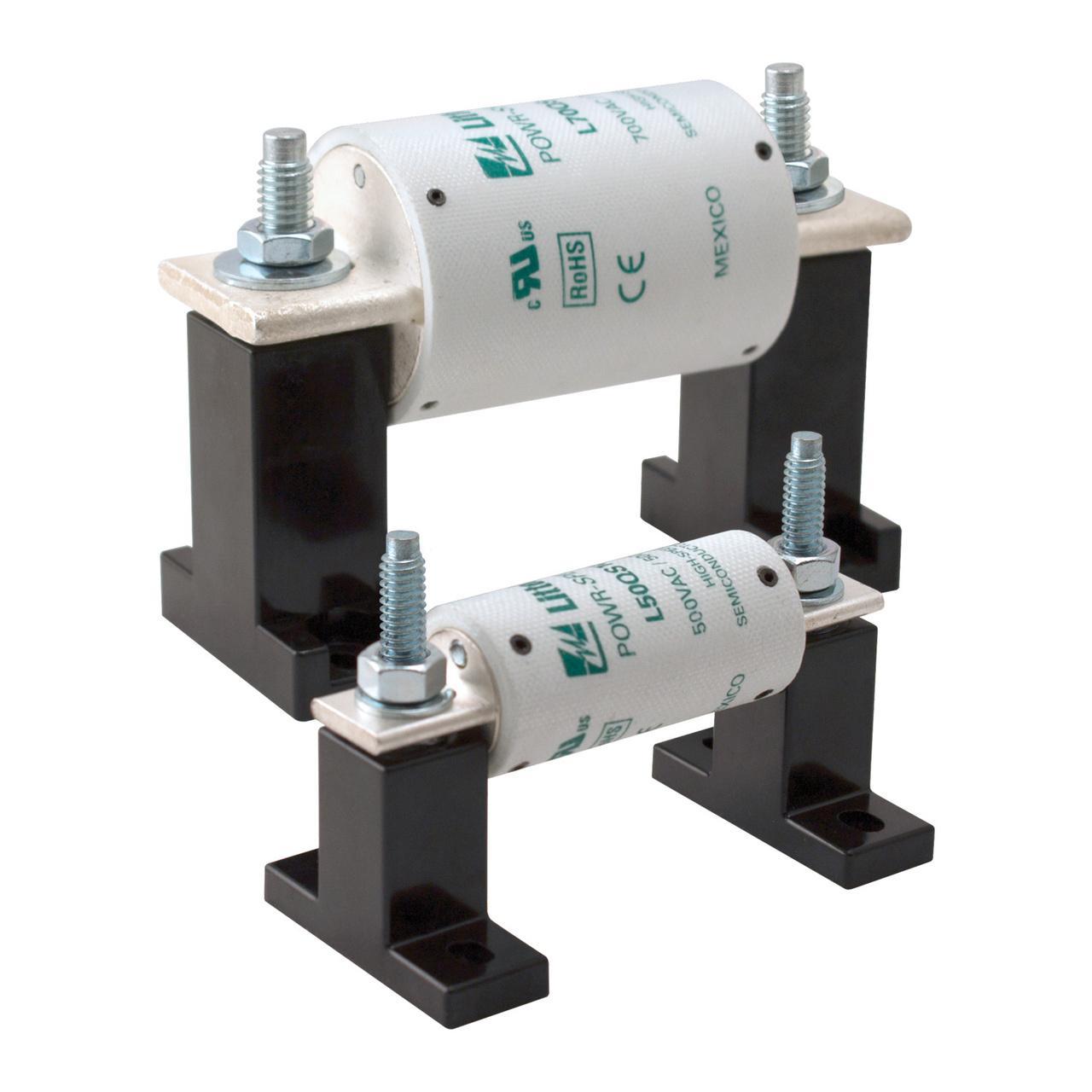

Littelfuse® POWR-GARD® LSCR001 Semiconductor Fuse Block, 700 V AC/DC, 400 A, 1 Pole
Littelfuse® LSCR series is a comprehensive line of modular fuse blocks, designed to accommodate a wide range of high speed and UL power Fuses. These LSCR series blocks have modular stud type design that enables easy mounting in panel boards. LSCR series blocks are CE certified and RoHS Compliant.
-
BrandLittelfuse®
-
UPC079458015218
-
Manufacturer Part NumberLSCR001
-
CountryUSA
-
Temperature Rating302 deg F
-
MaterialPhenolic
-
ClassT
-
ColorBlack
-
Mounting TypeThreaded
-
Voltage Rating700 V AC/DC
-
Amperage Rating400 A
-
SeriesLSCR
-
Number of Poles1
-
Dimensions47.75 mm L x 17.78 in W x 62.87 mm H
- Modular design reduces inventory requirements
- Sold in pairs for convenience
- Supplied with nut and belleville washer
- Constructed of molded phenolic (with plated steel studs) provide greater heat dissipation
- 302 deg F maximum base temperature
- 61 in-lb, 6.9 Nm stud torque
- 1/4-20 UNC terminal
-
Alternative Part Number8557130
-
UNSPSC39121629
-
IDEA Index ID8557130
-
Package DescriptionEACH
-
Standards/ApprovalsUL|UR Listed|CE Certified|CSA Certified|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
-
Specification Sheet
-
Owners/User Manual
-
Technical Bulletin
