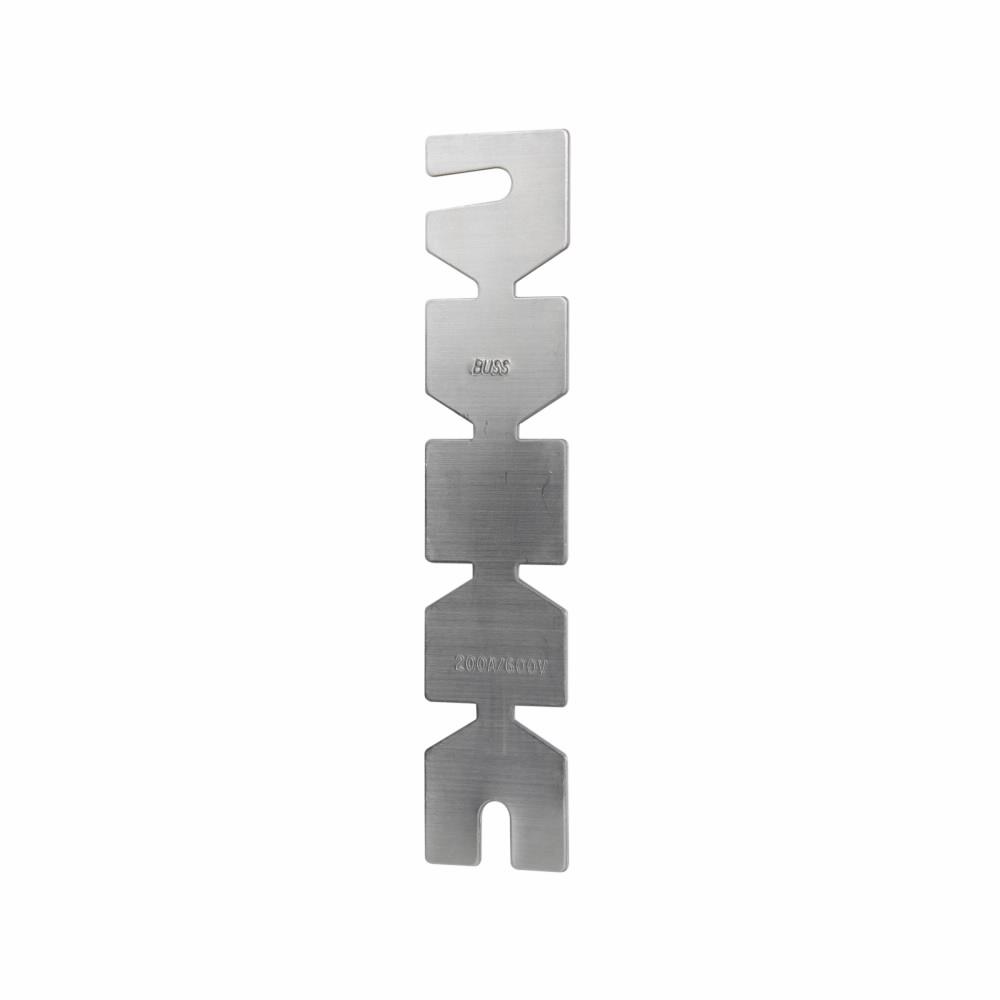

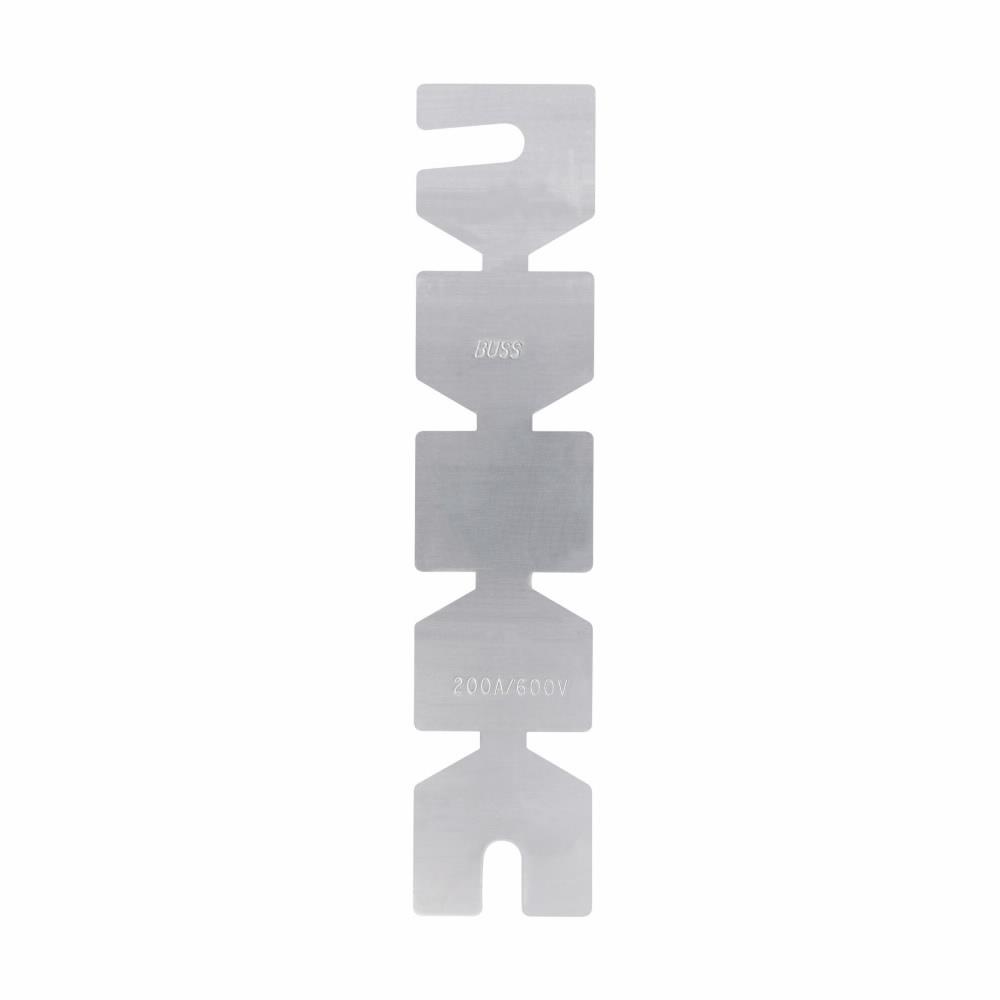

Edison LKS-150 Non-Current Limiting Renewable Fuse Link, 600 VAC, 150 A, For Use With RES-150 Class H 9.63 in L Fuse
Edison LKS-150 Non-Current Limiting Renewable Fuse Link, 600 VAC, 150 A, For Use With RES-150 Class H 9.63 in L Fuse
-
BrandEdison
-
UPC051712141505
-
Manufacturer Part NumberLKS-150
-
CountryUSA
-
TypeNon-Current Limiting Renewable
-
Mounting TypeStud
-
Voltage Rating600 V AC
-
Amperage Rating150 A
-
SeriesLKS
-
Suitable For Use WithRES-150 Class H 9.63 in L Fuse
- Designed for easy replacement
- No multiple links to complicate replacement
- Buss super-lag renewable fuses with longer time lag than other class H fuses of this type can better sustain overloads without needlessly opening
- Super-lag fuses are used in circuits of industrial and commercial structures where maximum short circuit currents are of a low level (below 10 kA) and frequent outages dictate the economy of the "renewable" type fuse
- These fuses are generally sized at the amperage rating of non-inductive circuits and 300% for motor circuits
-
Alternative Part Number19869105
-
UNSPSC39121606
-
IDEA Index ID19869105
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
Specification Sheet
