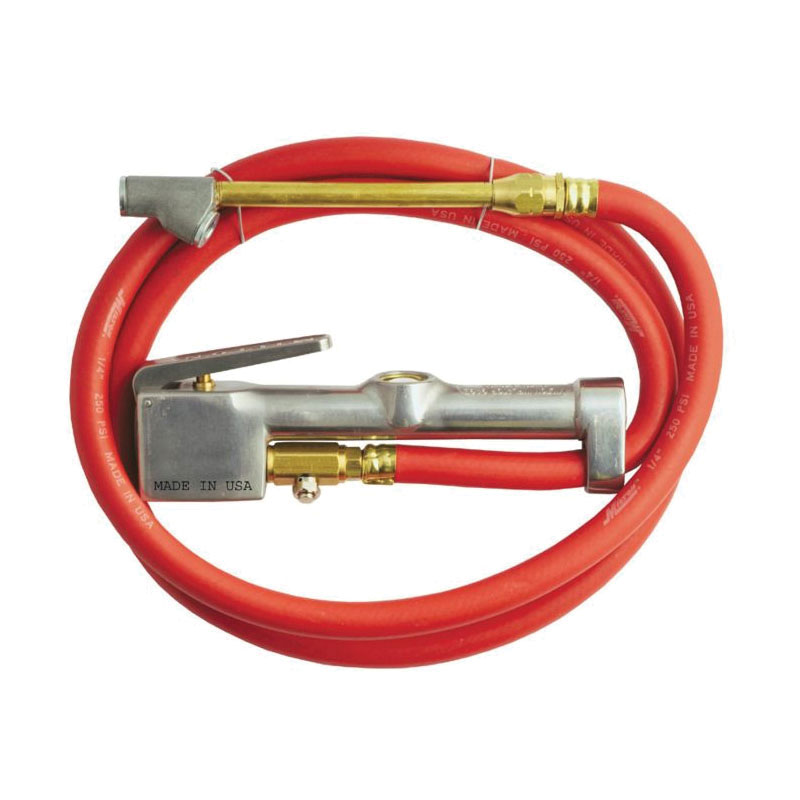

Milton® 501 500 Dual Head Straight Foot Heavy Duty Chuck Inflator Gauge With Viewing Window, 5 ft L, Die Cast Aluminum
Milton® is well known for inflator gauges. This dual head straight Chuck Inflator Gauge is made with heavy duty construction, providing for long life even under extreme use and conditions. Perfect for high pressure applications, this inflator gauge offers a pressure range of 10 to 160 psi. The dual heads allow for easy access into inner duals. Equipped with a magnified viewing window, this tire inflator gauge has a full swivel chuck and deflator valve. Gauge and valve cartridges are both replaceable. 1/4 in NPT air inlet. Meets OSHA regulation 1910.17.
-
BrandMilton®
-
UPC030937300904
-
Manufacturer Part Number501
-
CountryUSA
-
MaterialDie Cast Aluminum
-
Pressure Rating10 to 160 psi
-
TypeDual Head Straight Foot Heavy Duty
-
Series500
-
Hose Size5 ft L
-
Dimensions14 in L x 9-3/4 in W x 1-3/4 in H
- Full swivel chuck head
- 1/4 in NPT inlet
-
UNSPSC25172500
-

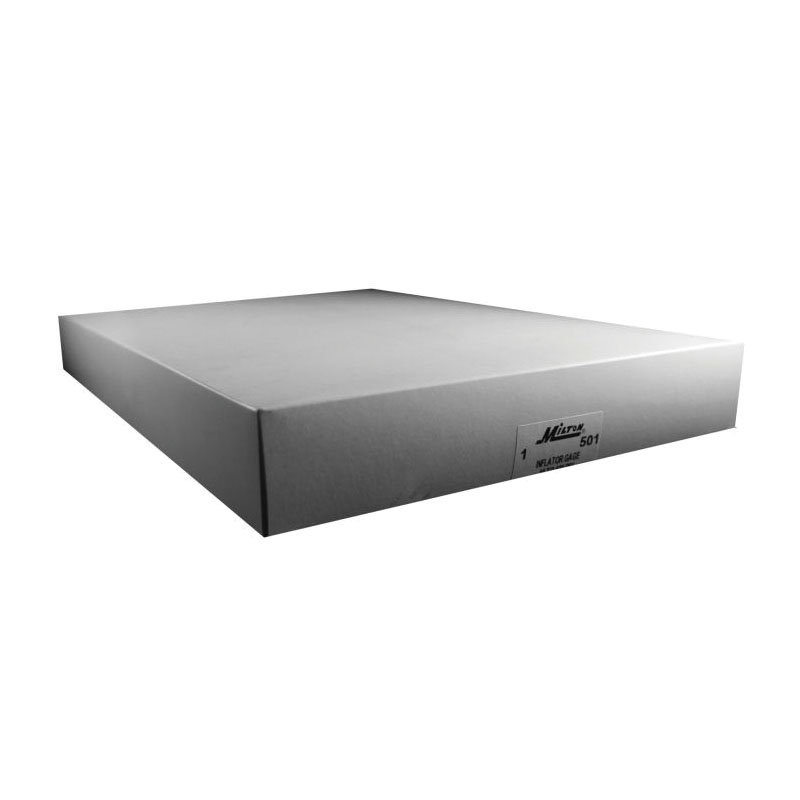

Package Description1/PK
-
Standards/ApprovalsANSI/ASME B40.1|OSHA 1910.177|PROP65: CANCER AND REPRODUCTIVE HARM www.P65Warnings.ca.gov
-
WarrantyLimited
