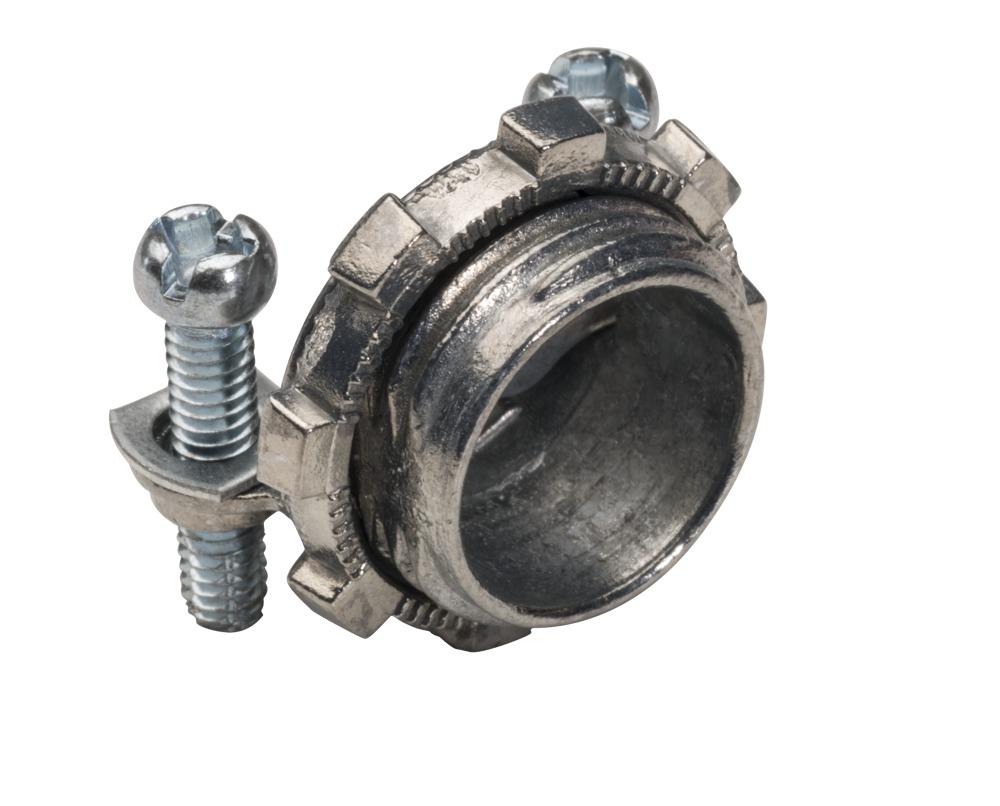

Southwire - Topaz 120 Non-Watertight Cable Clamp Connector With (2) Screws, 3/8 in Trade, 0.3 to 0.56 in Cable Openings, Die Cast Zinc
Topaz's 3/8” NM Clamp Connectors are designed for use in dry locations to bond nonmetallic sheathed cable to boxes or enclosures. Naturally corrosion resistant zinc die cast construction with two screw assembly to assure a secure connection. Long lasting and dependable fabrication; 1/2” size for cable from 2 # 14-2 with ground and 2 # 12-2 with ground. UL listed.
-
BrandSouthwire - Topaz
-
UPC751338106901
-
Manufacturer Part Number120
-
CountryUSA
-
Cable Openings0.3 to 0.56 in
-
Cable TypeNM
-
MaterialDie Cast Zinc
-
Trade Size3/8 in
-
TypeNon-Watertight
-
Connection TypeMale Threaded x Clamp
-
Dimensions0.814 in L x 0.92 in W
- Fits NM Cable - 14/2, 12/2, 12/3,AWG or 2 14/2 AWG or flex cord
- 300 to .560 in diameter 3/8 in(1/2 in KO)
-
Alternative Part Number18197249
-
UNSPSC39121311
-
IDEA Index ID18197249
-
Package DescriptionEACH
-
Standards/ApprovalscULus File No. E26593|CSA Certified
-
