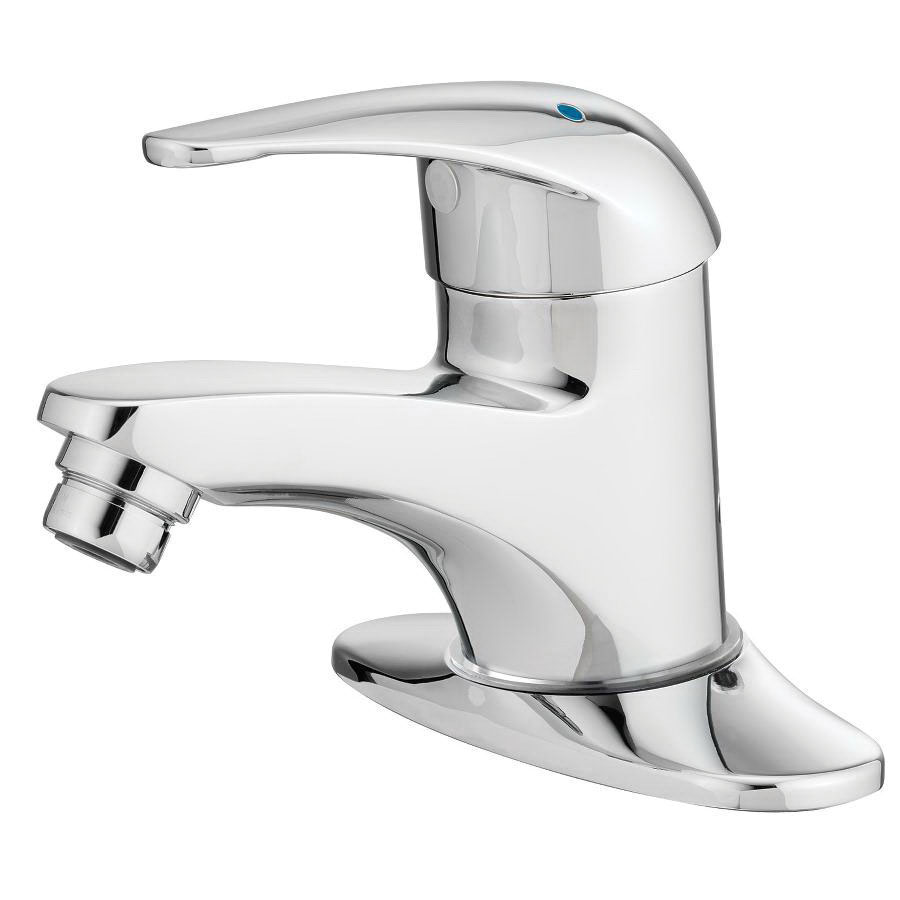

Powers™ TempTAP™ 115 Traditional Standard Lavatory Faucet, 1 Handles, 2 gpm Flow Rate
Series 105 and 115 TempTAP™ thermostatic faucets feature an advanced thermal actuator to provide the latest in thermal protection. The single-lever cartridge, with integral ceramic discs, provides both temperature and volume control. TempTAP™ automatically mixes hot and cold water to deliver pre-set water within a specific range. In the event of cold water failure, the thermal actuator virtually shuts off the flow of hot water. TempTAP™ is listed to ASSE 1070, IAPMO cUPC, and NSF 61 Section 9 Annex G.
-
BrandPowers™
-
UPC686408610371
-
Manufacturer Part Number115
-
CountryUSA|Canada
-
MaterialBrass
-
Flow Rate2 gpm
-
TypeTraditional Standard
-
Valve/Cartridge TypeThermostatic/Self-Contained
-
Connection Size3/8 in
-
Connection TypeCompression
-
Handle TypeLever
-
Series115
-
Number of Handles1
-
Spout Height2-1/16 in
-
Spout Reach4-7/8 in
-
Spray PatternAerated
- Advanced thermal actuator
- Eliminates installation of under-the-counter thermostatic valve
- Mixes hot and cold water to deliver tempered water within specified range
- Heavy duty lead free brass body for durability and to comply with low lead installation requirements
- Copper supplies feature integrated check valves
- Self-contained cartridge installs in a minute to simplify repairs
- Limits flow to less than 0.5 gpm in the event of cold water failure
-
UNSPSC30181700
-
Standards/ApprovalsADA Compliant|Advanced Thermal Activation|ASSE 1070|CSA B125.3|cUPC Listed|IAPMO Listed|NSF 61|Section 9 Annex G|WaterSense®|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Warranty1 Year
-
Instruction/Installation Manual
-
Specification Sheet
-
Catalog
