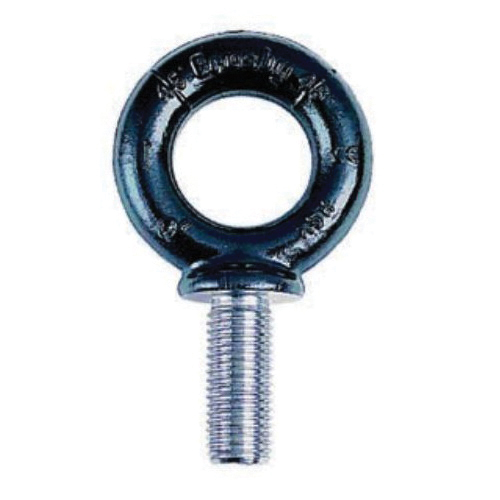

Crosby® 1046029 M-279 Full Threaded Machinery Eye Bolt, M24x3, 36 mm L Shank, Forged Steel
Crosby® 1046029 M-279 Full Threaded Machinery Eye Bolt, M24x3, 36 mm L Shank, Forged Steel
-
BrandCrosby®
-
UPC662547460299
-
Manufacturer Part Number1046029
-
CountryUSA
-
MaterialForged Steel
-
Measurement SystemMetric
-
TypeFull Threaded Machinery
-
SeriesM-279
-
Working Load4000 lb
-
Shank Length36 mm
-
Diameter - Thread SizeM24x3
-
Inside Eye Diameter51 mm
-
Outside Eye Diameter95.5 mm
-
Overall Length142 mm
- Working load limits shown are for in-line pull
- Fatigue rated at 1-1/2 times the working load limit at 20000 cycles
- Recommended for in-line pull
- Importantly, these bolts meet other critical performance requirements including fatigue life, impact properties and material traceability
-
UNSPSC31161610
-
Standards/ApprovalsASME B30.26
-
