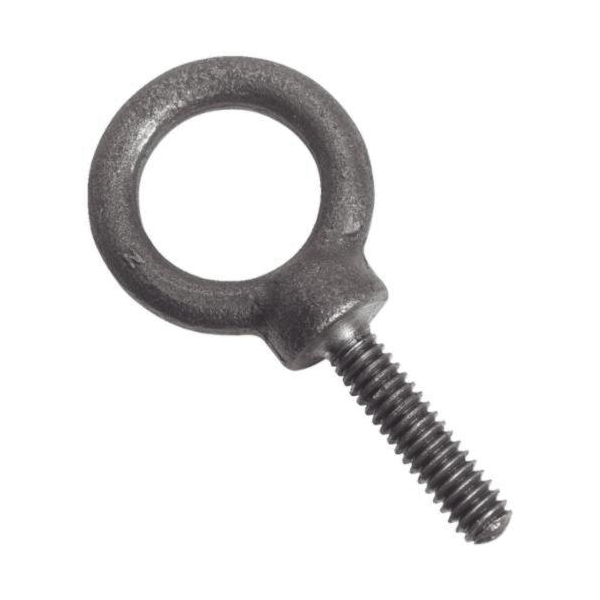

Proto Tools 1-1/2"-6 X 3-1/2" EYEBOLTS W/SHLDR PRO J-94032
Proto® J94032 Full Threaded Shoulder Pattern Eye Bolt, 1-1/2-6, 3-1/2 in L Shank, Forged Steel, Plain
-
BrandProto®
-
UPC662679490270
-
Manufacturer Part NumberJ94032
-
CountryUSA
-
FinishPlain
-
Thread Length3-1/2 in
-
MaterialForged Steel
-
Material SpecificationASME B18.15
-
Thread TypeUNC-2A
-
Measurement SystemImperial
-
TypeFull Threaded Shoulder Pattern
-
Working Load21000 lb
-
Shank Length3-1/2 in
-
Diameter - Thread Size1-1/2-6
-
Inside Eye Diameter2.44 to 2.56 in
-
Outside Eye Diameter5.19 in
-
Overall Length9.72 in
- Maximum load ratings for eye bolts are drastically reduced when loading at an angle
- Angular loads should be avoided whenever possible
- For angular loads of 15 deg or more
- Certified mercury free
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 4R271 |
-
UNSPSC31161610
-
Standards/ApprovalsASME B18.15
-
