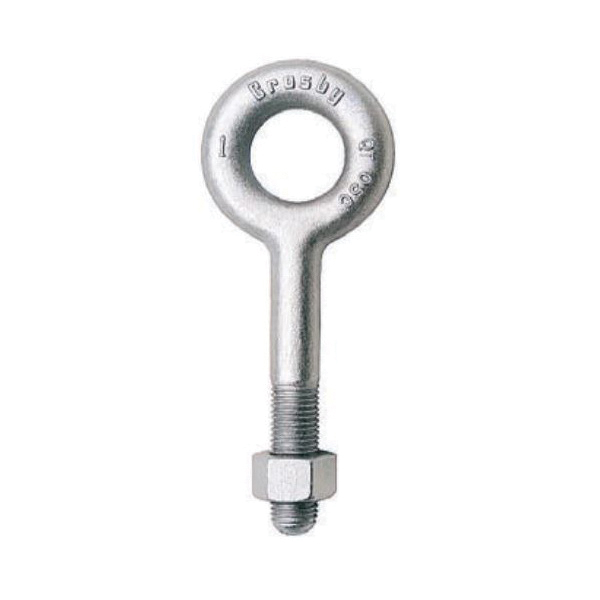

Crosby® 1043338 G-291-3/8 X 4 1/2 Eye Bolt With Regular Nut, 3/8 in, 4-1/2 in L Shank, Forged Steel, Hot Dipped Galvanized
Crosby® 1043338 G-291 Eye Bolt With Regular Nut, 3/8 in, 4-1/2 in L Shank, Forged Steel, Hot Dipped Galvanized
-
BrandCrosby®
-
UPC662547433385
-
Manufacturer Part Number1043338
-
CountryUSA
-
FinishHot Dipped Galvanized
-
Thread Length2-1/2 in
-
MaterialForged Steel
-
Thread TypeUNC
-
Measurement SystemImperial
-
SeriesG-291
-
Working Load1550 lb
-
Shank Length4-1/2 in
-
Diameter - Thread Size3/8 in
-
Inside Eye Diameter3/4 in
-
Outside Eye Diameter1-1/2 in
-
Overall Length6.12 in
- Fatigue rated at 1-1/2 times the working load limit at 20000 cycles
- Hot dip galvanized after threading (UNC)
- Furnished with standard hot dip galvanized hex nuts
- Recommended for in-line pull
- Importantly, these bolts meet other critical performance requirements including fatigue life, impact properties and material traceability
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 48FR76 |
-
UNSPSC31161610
-
Standards/ApprovalsASME B30.26|CE Certified
-
