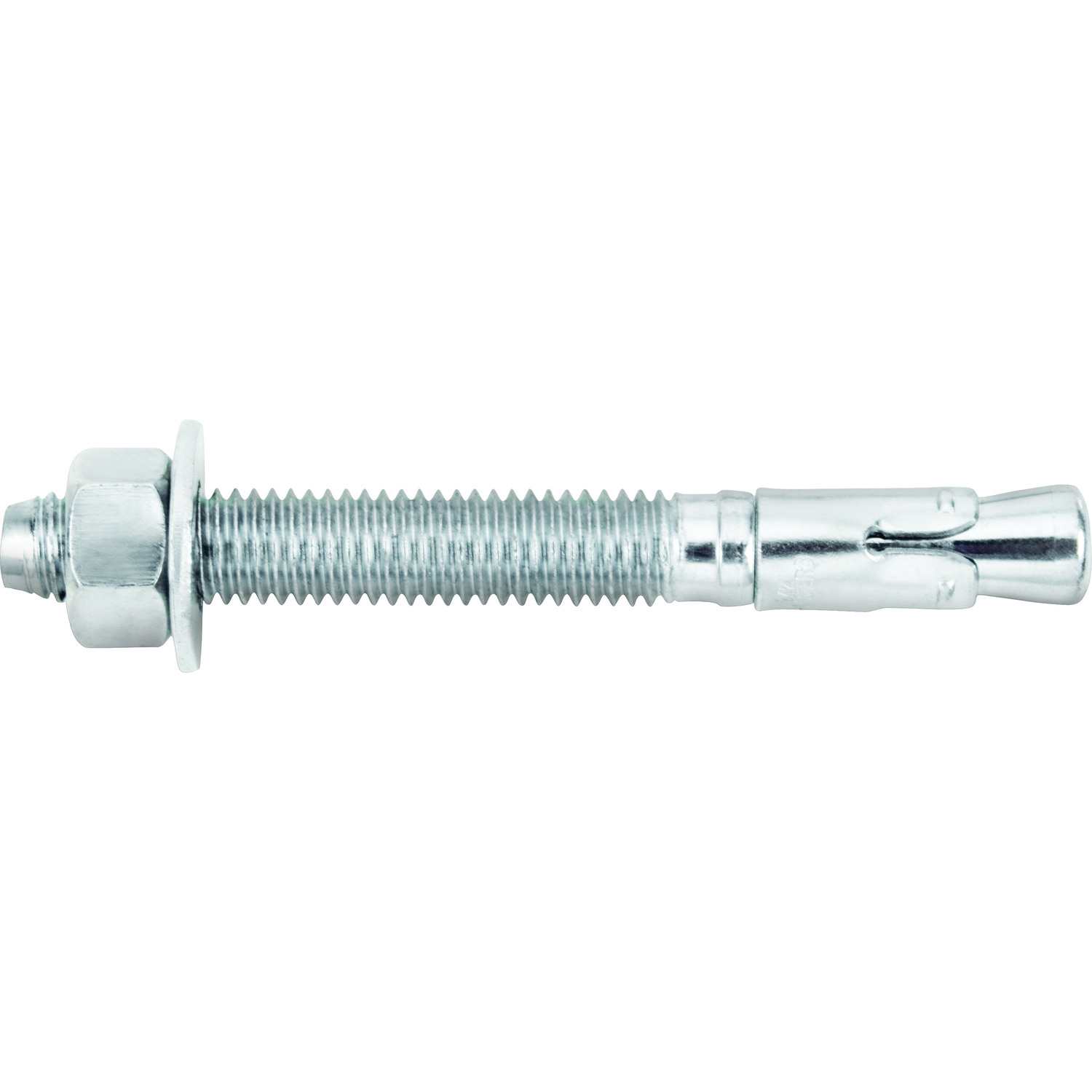

DeWALT® Power-Stud®+ Powers® 7400SD1-PWR Expansion Wedge Anchor, 1/4 in Dia, 1-3/4 in OAL, 3/4 in L Thread, Carbon Steel, Zinc Plated
The Power-Stud®+ SD1 Anchor is a fully threaded, torque controlled, wedge expansion Anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal weight concrete, sand lightweight concrete, concrete over steel deck and grouted concrete masonry. The Anchor is manufactured with a zinc plated carbon steel body and expansion clip for premium performance. Nut and washer are included.
-
BrandDeWALT®
-
UPC075352775876
-
Manufacturer Part Number7400SD1-PWR
-
CountryUSA|Canada
-
FinishZinc Plated
-
Tensile Strength1600 lb
-
Thread Length3/4 in
-
MaterialCarbon Steel
-
Thread Size1/4-20
-
Thread TypeUNC
-
Maximum Work Thickness3/8 in
-
Minimum Embedment Depth1-1/8 in
-
TypeExpansion
-
Head TypeThreaded Stud
-
SeriesSD1
-
Shear Strength1255 lb
-
Diameter1/4 in
-
Overall Length1-3/4 in
- Consistent performance in high and low strength concrete
- Anchor can be installed through standard fixture holes
- Anchor design allows for follow-up expansion after setting under tensile loading
- Nominal drill bit diameter same as Anchor diameter
- Length ID code and identifying marking stamped on head of each Anchor
- Ultimate load capacity: 1320 lb tensile strength when embedded in 2500 psi, 1435 lb tensile strength when embedded in 3000 psi and 1660 lb tensile strength when embedded in 4000 psi compressive strength concrete
- Ultimate load capacity: 1160 lb shear strength when embedded in 2500 psi, 1255 lb shear strength when embedded in 3000 psi and 1255 lb shear strength when embedded in 4000 psi compressive strength concrete
- Ultimate load capacity - 1320 lb tensile strength when embedded in 2500 psi, 1435 lb tensile strength when embedded in 3000 psi, 1660 lb tensile strength when embedded in 4000 psi normal-weight concrete
- Ultimate load capacity - 1160 lb shear strength when embedded in 2500 psi, 1255 lb shear strength when embedded in 3000 psi/4000 psi normal-weight concrete
- Allowable load capacity - 330 lb tensile strength when embedded in 2500 psi, 360 lb tensile strength when embedded in 3000 psi, 415 lb tensile strength when embedded in 4000 psi normal-weight concrete
- Allowable load capacity - 290 lb shear strength when embedded in 2500 psi, 315 lb shear strength when embedded in 3000 psi/4000 psi normal-weight concrete
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 2140515 |
-
UNSPSC31162102
-
IncludesCarbon Steel Expansion Clip, Nut and Washer
-
Package Description100/BX
-
Standards/Approvals2015 IBC/IRC|2012 IBC/IRC|2009 IBC/IRC|ACI 318-14 Chapter 17|ACI 318-11/08 Appendix D|ACI 355.2|ASTM E488|ICC-ES ESR-2818|ICC-ES ESR-2966|Evaluated and Qualified by an Accredited Independent Testing Laboratory|FM Approved|ICC-ES AC193|ICC-ES AC01|UL EX1289
-
