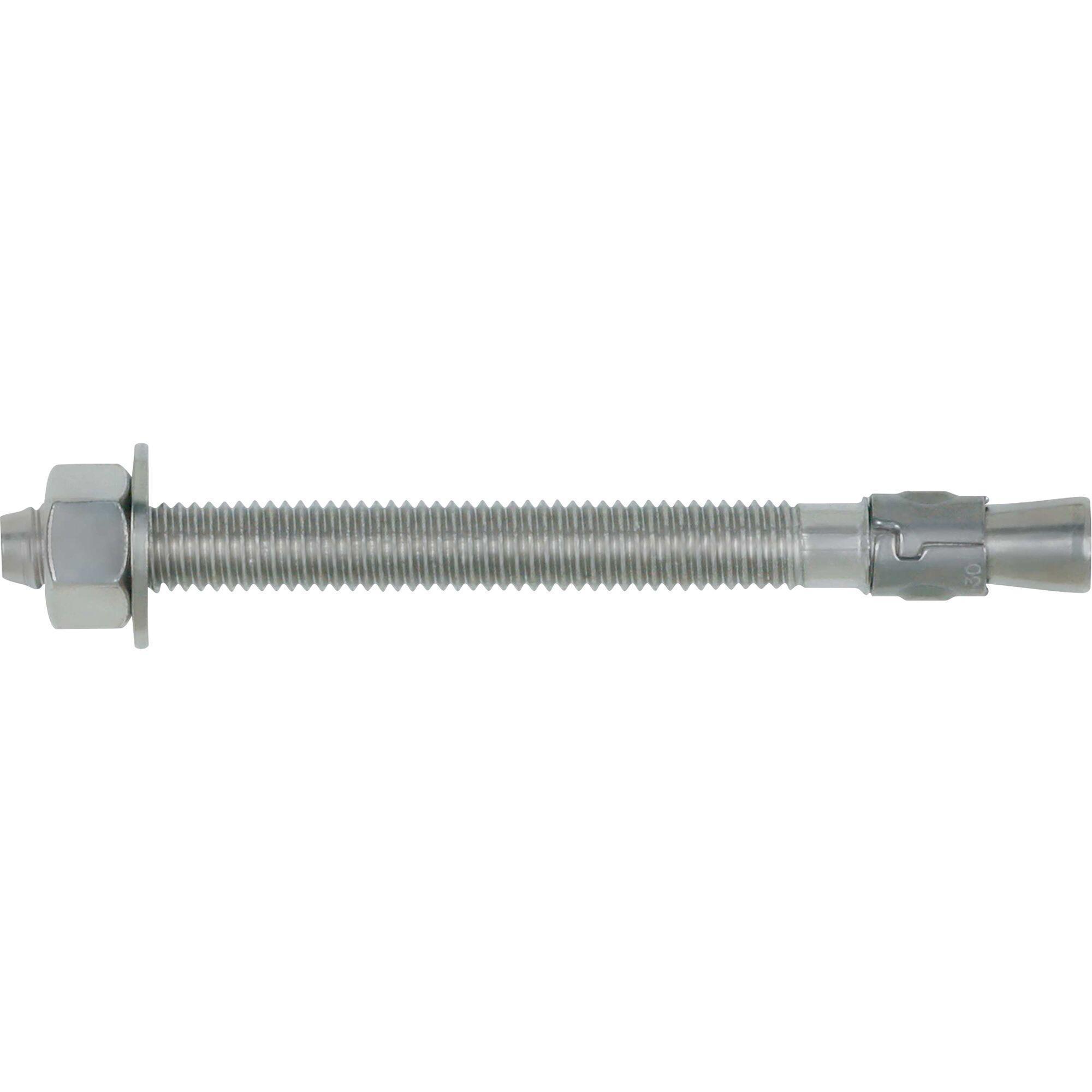

DeWALT® Power-Stud® 07332-PWR Wedge Expansion Anchor, 5/8 in Dia, 4-1/2 in OAL, 3 in L Thread, 304 Stainless Steel
The Power-Stud® anchor, is a fully threaded, torque controlled, Wedge Expansion Anchor. It is available in a threaded version suitable for applications in solid concrete and grout-filled concrete masonry. The threaded version is produced in type 304 and type 316 stainless steel.
-
BrandDeWALT®
-
UPC075352073323
-
Manufacturer Part Number07332-PWR
-
CountryUSA|Canada
-
Thread Length3 in
-
Material304 Stainless Steel
-
Thread Size5/8-11
-
Thread TypeUNC
-
Maximum Work Thickness1-3/4 in
-
Minimum Embedment Depth2-3/4 in
-
Head TypeThreaded Stud
-
Diameter5/8 in
-
Drill Size5/8 in
-
Overall Length4-1/2 in
- Fully threaded, medium duty all purpose anchor
- Anchors can be installed through the fixture for hole spotting not required
- Clip design prevents spinning during installation
- Length ID stamped on each threaded anchor
- Chamfered impact section prevents damage to threads
- Nominal drill bit size is the same as the anchor diameter
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 2140571 |
-
Alternative Part Number15600889
-
UNSPSC31162102
-
IDEA Index ID15600889
-
Standards/ApprovalsASTM E488|Federal GSA Specification Meets the Descriptive and Proof Load requirements of CID A-A-1923A, Type 4|UL EX1289
-
Specification Sheet
