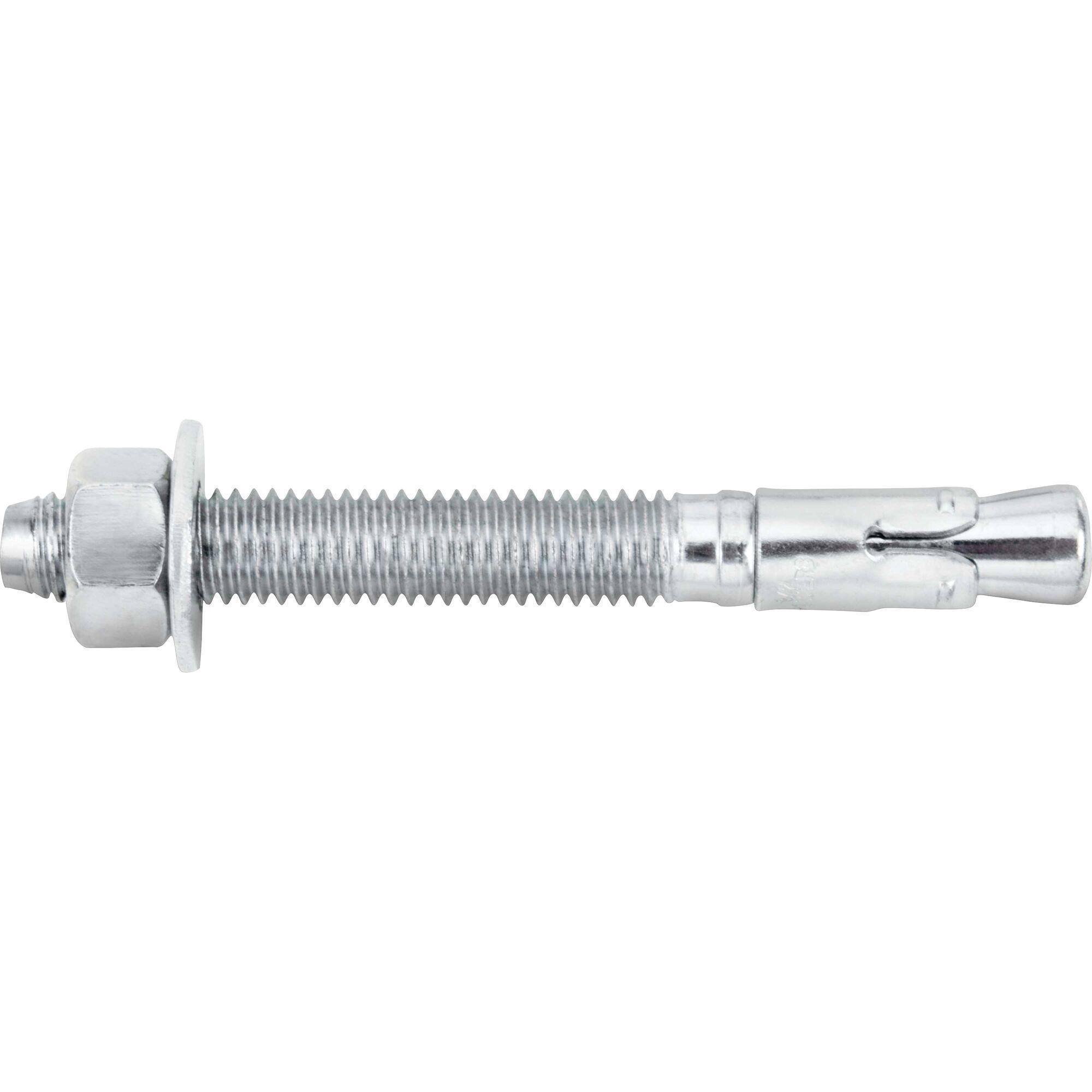

3/8" X 3-3/4" ZINC CONCRETE ANCHOR PWR7415
The Power-Stud®+ SD1 Anchor is a fully threaded, torque controlled, wedge expansion Anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal weight concrete, sand lightweight concrete, concrete over steel deck and grouted concrete masonry. The Anchor is manufactured with a zinc plated carbon steel body and expansion clip for premium performance. Nut and washer are included.
-
BrandDeWALT®
-
UPC075352776019
-
Manufacturer Part Number7415SD1-PWR
-
CountryUSA|Canada
-
FinishZinc Plated
-
Tensile Strength3100 lb
-
Thread Length2-3/8 in
-
MaterialCarbon Steel
-
Thread Size3/8-16
-
Thread TypeUNC
-
Maximum Work Thickness1-3/4 in
-
Minimum Embedment Depth1-5/8 in
-
TypeExpansion
-
Head TypeThreaded Stud
-
SeriesSD1
-
Shear Strength2540 lb
-
Diameter3/8 in
-
Overall Length3-3/4 in
- Anchor can be installed through standard fixture holes
- Anchor design allows for follow-up expansion after setting under tensile loading
- Nominal drill bit diameter same as Anchor diameter

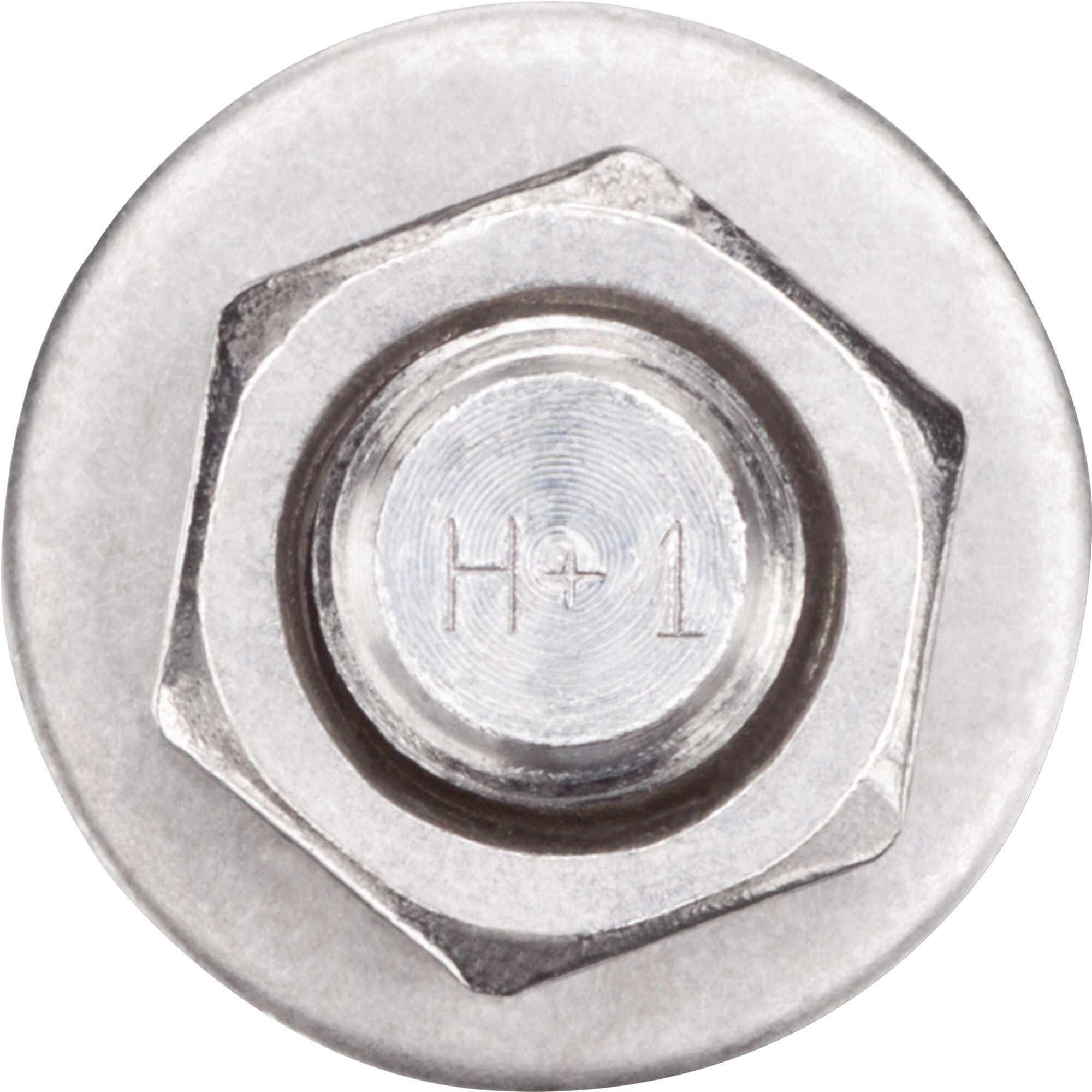

- Length ID code and identifying marking stamped on head of each Anchor
- Ultimate load capacity - 2240 lb tensile strength when embedded in 2500 psi, 2685 lb tensile strength when embedded in 3000 psi, 3100 lb tensile strength when embedded in 4000 psi normal-weight concrete
- Anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and uncracked concrete
- Suitable base materials include normal-weight concrete, structural sand-lightweight
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 2140523 |
-
UNSPSC31162102
-
Includes
-
Package Description50/BX
-
Standards/Approvals2015 IBC/IRC|2012 IBC/IRC|2009 IBC/IRC|ACI 318-14 Chapter 17|ACI 318-11/08 Appendix D|ACI 355.2|ASTM E488|ICC-ES ESR-2818|ICC-ES ESR-2966|Evaluated and Qualified by an Accredited Independent Testing Laboratory|FM Approved|ICC-ES AC193|ICC-ES AC01|UL EX1289
-
