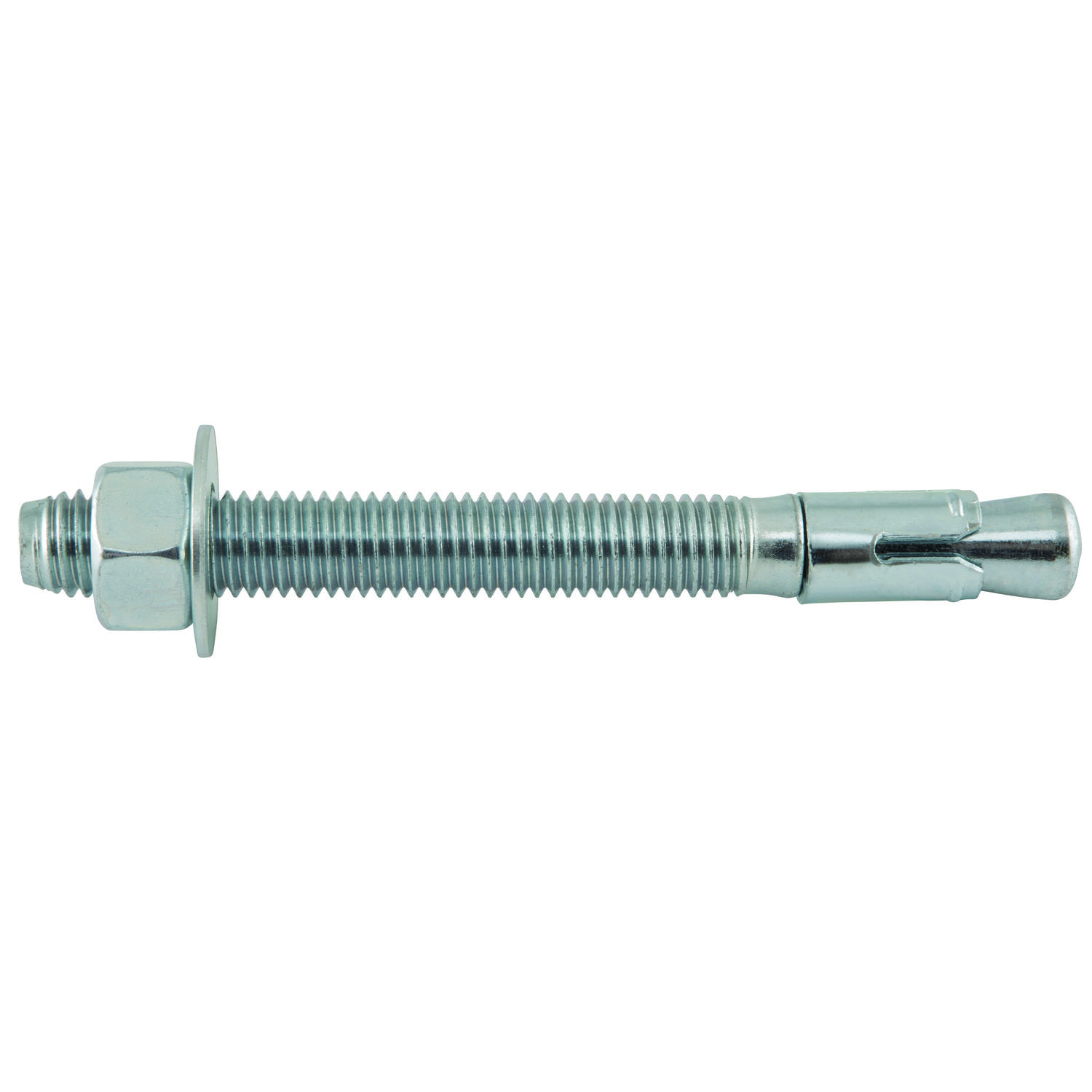

DeWALT® 7434SD1-PWR SD1 Expansion Wedge Anchor, 5/8 in Dia, 6 in OAL, 4 in L Thread, Carbon Steel, Zinc Plated
The Power-Stud®+ SD1 Anchor is a fully threaded, torque controlled, wedge expansion Anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal weight concrete, sand lightweight concrete, concrete over steel deck and grouted concrete masonry. The Anchor is manufactured with a zinc plated carbon steel body and expansion clip for premium performance. Nut and washer are included.
-
BrandDeWALT®
-
UPC075352776231
-
Manufacturer Part Number7434SD1-PWR
-
CountryUSA|Canada
-
FinishZinc Plated
-
Tensile Strength6285 lb
-
Thread Length4 in
-
MaterialCarbon Steel
-
Thread Size5/8-11
-
Thread TypeUNC
-
Maximum Work Thickness2-5/8 in
-
Minimum Embedment Depth2-3/4 in
-
TypeExpansion
-
Head TypeThreaded Stud
-
SeriesSD1
-
Shear Strength6815 lb
-
Diameter5/8 in
-
Drill Size5/8 in
-
Overall Length6 in
- Consistent performance in high and low strength concrete
- Anchor can be installed through standard fixture holes
- Nominal drill bit diameter same as Anchor diameter
- Length ID code and identifying marking stamped on head of each Anchor
- Allowable load capacity - 1240 lb tensile strength when embedded in 2500 psi, 1360 lb tensile strength when embedded in 3000 psi, 1570 lb tensile strength when embedded in 4000 psi normal-weight concrete
- Anchor design allows for follow-up expansion after setting under tensile loading ultimate pullout 5440 lb
- Normal weight concrete, structural sand-light weight concrete, concrete over steel deck and grouted concrete masonry are applicable materials
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 2140536 |
-
UNSPSC31162102
-
IncludesCarbon Steel Expansion Clip, Nut and Washer
-
Package Description25/BX
-
Standards/Approvals2015 IBC/IRC|2012 IBC/IRC|2009 IBC/IRC|ACI 318-14 Chapter 17|ACI 318-11/08 Appendix D|ACI 355.2|ASTM E488|ICC-ES ESR-2818|ICC-ES ESR-2966|Evaluated and Qualified by an Accredited Independent Testing Laboratory|FM Approved|ICC-ES AC193|ICC-ES AC01|UL EX1289
-
