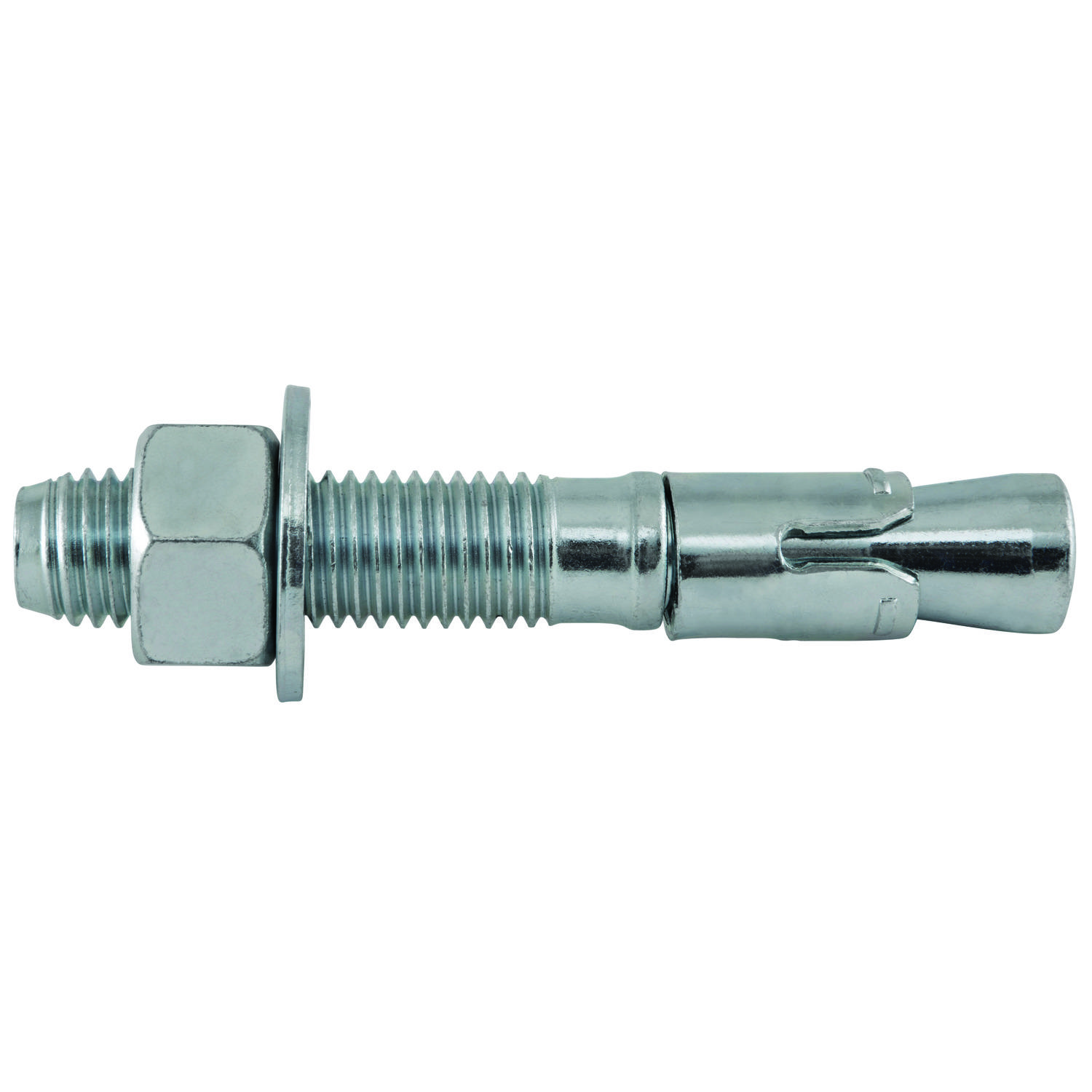

DeWALT® 7441SD1-PWR SD1 Expansion Wedge Anchor, 3/4 in Dia, 4-3/4 in OAL, 2-1/4 in L Thread, Carbon Steel, Zinc Plated
The Power-Stud®+ SD1 Anchor is a fully threaded, torque controlled, wedge expansion Anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal weight concrete, sand lightweight concrete, concrete over steel deck and grouted concrete masonry. The Anchor is manufactured with a zinc plated carbon steel body and expansion clip for premium performance. Nut and washer are included.
-
BrandDeWALT®
-
UPC075352781150
-
Manufacturer Part Number7441SD1-PWR
-
CountryUSA|Canada
-
FinishZinc Plated
-
Tensile Strength9075 lb
-
Thread Length2-1/4 in
-
MaterialCarbon Steel
-
Thread Size3/4-10
-
Thread TypeUNC
-
Maximum Work Thickness5/8 in
-
Minimum Embedment Depth3-3/8 in
-
TypeExpansion
-
Head TypeThreaded Stud
-
SeriesSD1
-
Shear Strength12580 lb
-
Diameter3/4 in
-
Drill Size3/4 in
-
Overall Length4-3/4 in
- Consistent performance in high and low strength concrete
- Anchor can be installed through standard fixture holes
- Anchor design allows for follow-up expansion after setting under tensile loading ultimate pullout 5440 lb
- Nominal drill bit diameter same as Anchor diameter
- Length ID code and identifying marking stamped on head of each Anchor
- Ultimate load capacity - 8850 lb shear strength when embedded in 1500 psi, 9375 lb shear strength when embedded in 2000 psi at 12 in minimum edge/end distance and 10200 lb shear strength when embedded in 1500 psi, 10800 lb shear strength when embedded in 2000 psi at 20 in minimum edge/end distance grout-filled concrete masonry wall faces
- Normal weight concrete, structural sand-light weight concrete, concrete over steel deck and grouted concrete masonry are applicable materials
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 2140541 |
-
UNSPSC31162102
-
IncludesCarbon Steel Expansion Clip, Nut and Washer
-
Package Description20/BX
-
Standards/Approvals2015 IBC/IRC|2012 IBC/IRC|2009 IBC/IRC|ACI 318-14 Chapter 17|ACI 318-11/08 Appendix D|ACI 355.2|ASTM E488|ICC-ES ESR-2818|ICC-ES ESR-2966|Evaluated and Qualified by an Accredited Independent Testing Laboratory|FM Approved|ICC-ES AC193|ICC-ES AC01|UL EX1289
-
