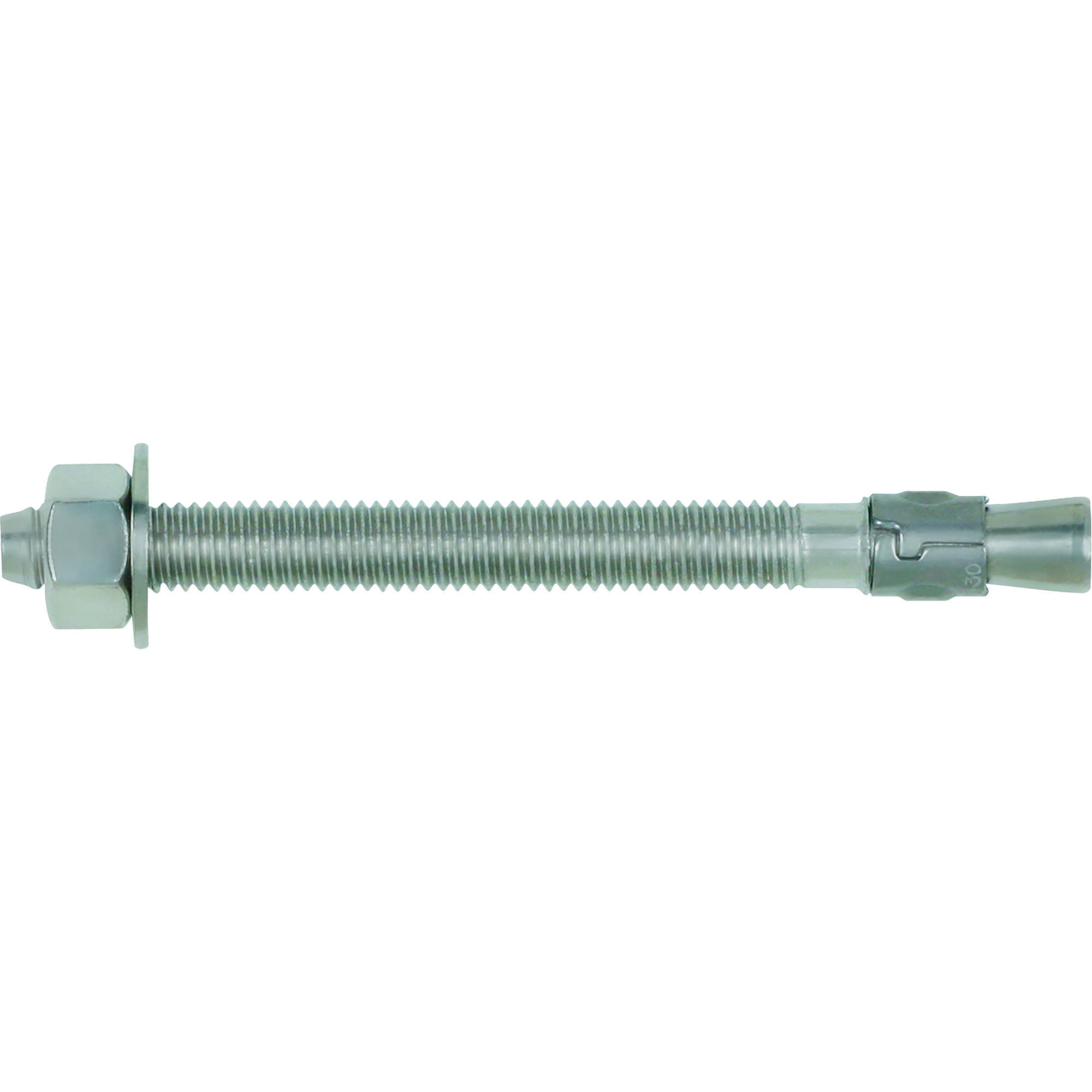

DeWALT® Power-Stud® 07316-PWR Wedge Expansion Anchor, 3/8 in Dia, 5 in OAL, 3-1/8 in L Thread, 304 Stainless Steel
The Power-Stud® anchor, is a fully threaded, torque-controlled, wedge expansion anchor. It is available in a threaded version suitable for applications in solid concrete and grout-filled concrete masonry. The threaded version is produced in type 304 and type 316 stainless steel.
-
BrandDeWALT®
-
UPC753520731632
-
Manufacturer Part Number07316-PWR
-
CountryUSA
-
Tensile Strength4075 lb
-
Thread Length3-1/8 in
-
Material304 Stainless Steel
-
Thread Size3/8-16
-
Thread TypeUNC
-
Maximum Work Thickness3-3/8 in
-
Minimum Embedment Depth1-5/8 in
-
Shear Strength3760 lb
-
Diameter3/8 in
-
Drill Size3/8 in
-
Overall Length5 in
- Fully threaded, medium duty all-purpose anchor
- Anchors can be installed through the fixture for hole spotting not required
- Clip design prevents spinning during installation
- Length ID stamped on each threaded anchor
- Chamfered impact section prevents damage to threads
- Nominal drill bit diameter same as anchor diameter
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 2140564 |
-
UNSPSC31162102
-
Standards/ApprovalsASTM E488|FM Approved|Federal GSA Specifications|GSA: A-A-1923A|UL File No. EX1289
