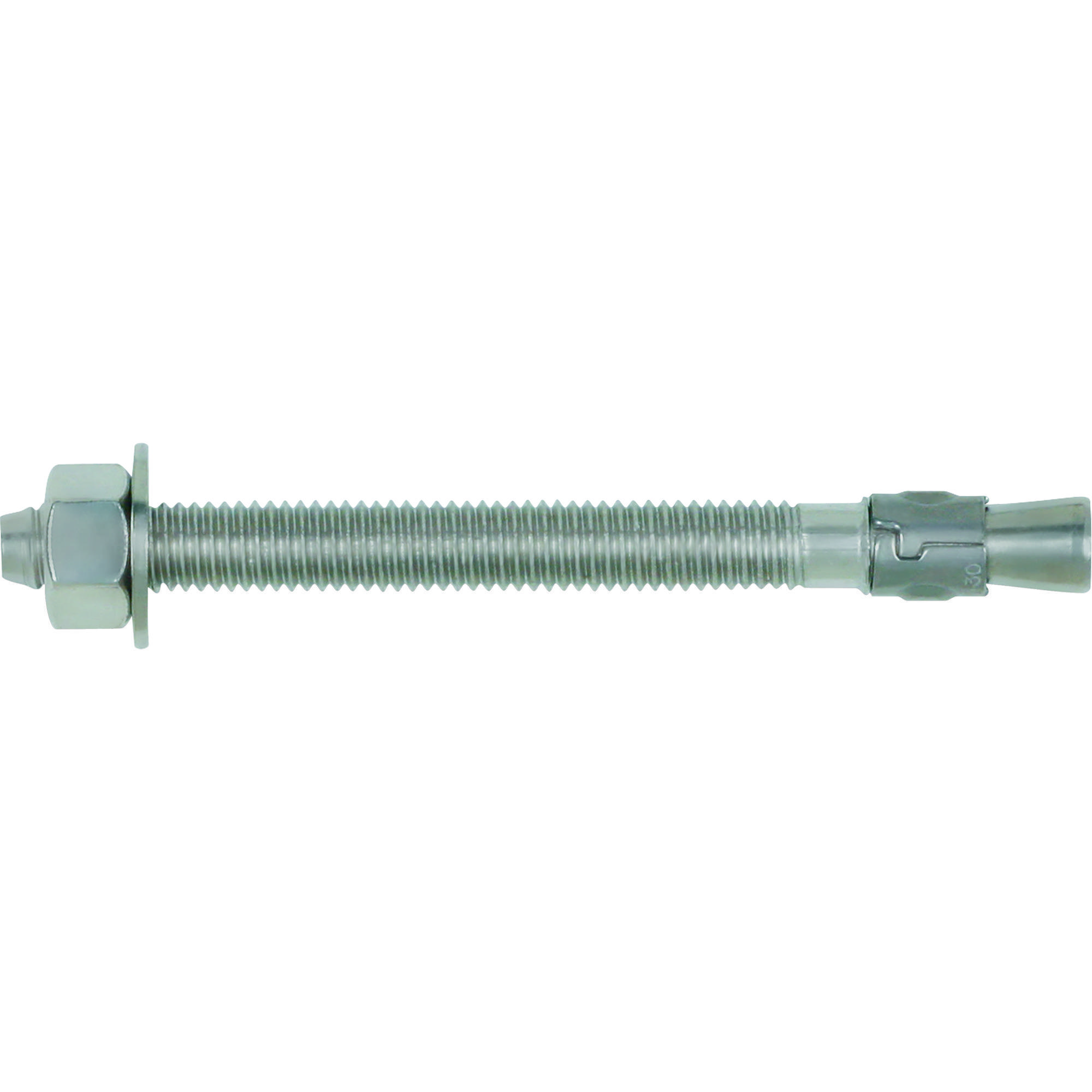

DeWALT® Power-Stud® 7312 Wedge Expansion Anchor, 3/8 in Dia, 2-3/4 in OAL, 1-5/8 in L Thread, 304 Stainless Steel, Galvanized
The Power-Stud® anchor is a one piece fully threaded, wedge style anchor available in carbon steel and stainless steel. Threaded, rod hanger and tie wire versions are designed for use in solid concrete. The drill bit diameter needed for proper installation is the same as the anchor diameter.
-
BrandDeWALT®
-
UPC075352073125
-
Manufacturer Part Number7312
-
CountryUSA
-
Tensile Strength4075 lb
-
Thread Length1-5/8 in
-
Material304 Stainless Steel
-
Thread Size3/8-16
-
Thread TypeUNC
-
Maximum Work Thickness1-1/8 in
-
Minimum Embedment Depth1-5/8 in
-
Shear Strength3760 lb
-
Diameter3/8 in
-
Drill Size3/8 in
-
Overall Length2-3/4 in
-
FinishGalvanized
-
Head TypeThreaded Stud
- Fully threaded, medium duty all-purpose anchor
- Length ID stamped on each threaded anchor
- Anchors can be installed through the fixture for hole spotting not required
- Chamfered impact section prevents damage to threads
- Clip design prevents spinning during installation
- Nominal drill bit diameter same as anchor diameter
- 21/64 in nut height
- 13/16 in OD washer
- 9/16 in wrench
- 28 ft-lbs tightening torque
- 7/16 in fixture clearance hole
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 2140560 |
-
UNSPSC31162102
-
Standards/ApprovalsFM J.I. OK3A9.AH|UL EX1289|ASTM E488|CID A-A-1923A
-
IncludesNut and Washer
-
Package Description50/BX
-
Specification Sheet
