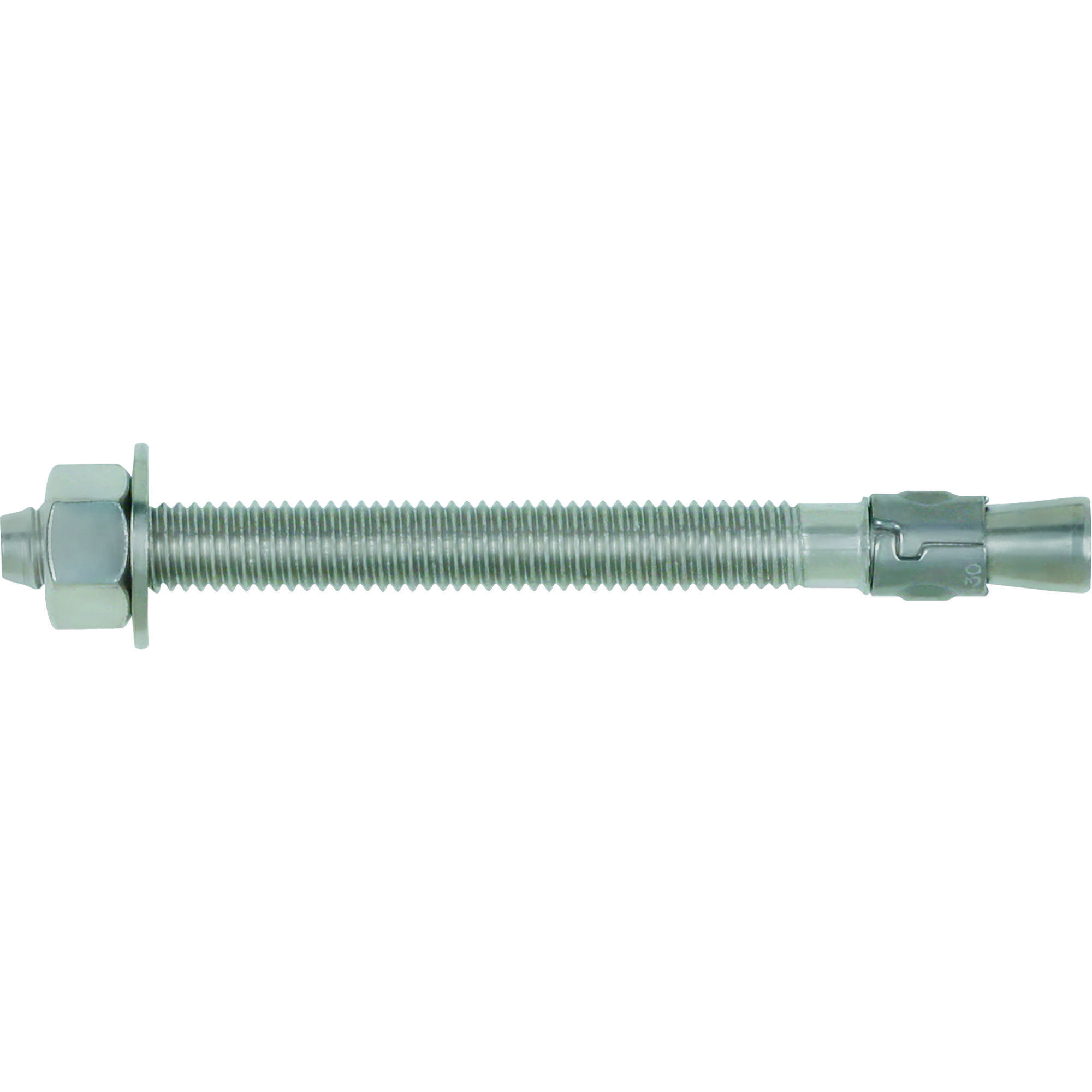

DeWALT® Power-Stud® 7342 Wedge Expansion Anchor, 3/4 in Dia, 5-1/2 in OAL, 3-5/8 in L Thread, 304 Stainless Steel, Galvanized
The Power-Stud® anchor is a one piece fully threaded, wedge style anchor available in carbon steel and stainless steel. Threaded, rod hanger and tie wire versions are designed for use in solid concrete. The drill bit diameter needed for proper installation is the same as the anchor diameter.
-
BrandDeWALT®
-
UPC075352073422
-
Manufacturer Part Number7342
-
CountryUSA
-
Tensile Strength14630 lb
-
Thread Length3-5/8 in
-
Material304 Stainless Steel
-
Thread Size3/4-10
-
Thread TypeUNC
-
Maximum Work Thickness2-1/8 in
-
Minimum Embedment Depth3-3/8 in
-
Shear Strength15060 lb
-
Diameter3/4 in
-
Drill Size3/4 in
-
Overall Length5-1/2 in
-
FinishGalvanized
-
Head TypeThreaded Stud
- Fully threaded, medium duty all-purpose anchor
- Length ID stamped on each threaded anchor
- Anchors can be installed through the fixture for hole spotting not required
- Chamfered impact section prevents damage to threads
- Clip design prevents spinning during installation
- Nominal drill bit diameter same as anchor diameter
- 41/64 in nut height
- 2 in OD washer
- 1-1/8 in wrench
- 175 ft-lbs tightening torque
- 13/16 in fixture clearance hole
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 2140578 |
-
UNSPSC31162102
-
Standards/ApprovalsUL EX1289|ASTM E488|CID A-A-1923A
-
IncludesNut and Washer
-
Package Description20/BX
-
