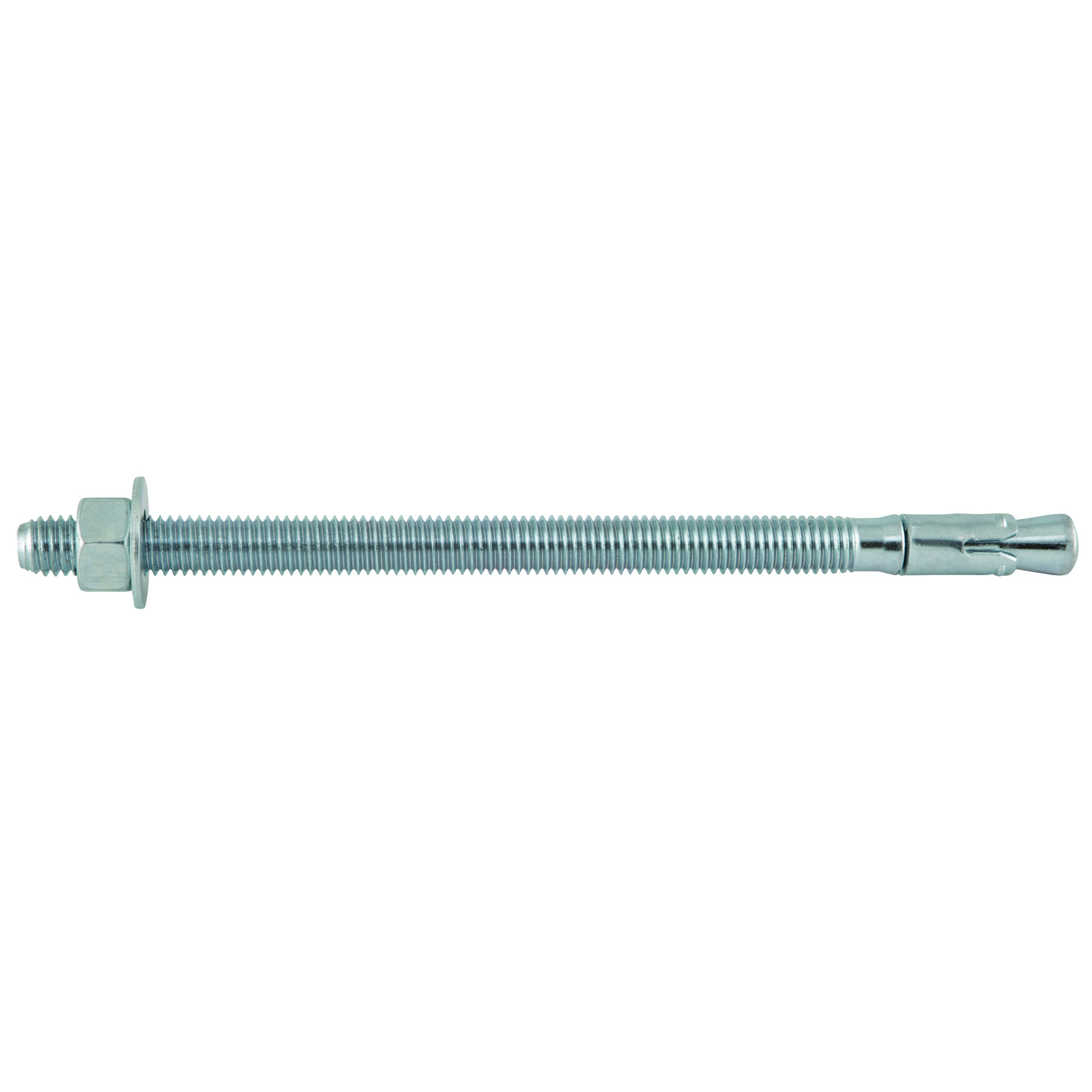

DeWALT® 7427SD1-PWR Wedge Expansion Anchor, 1/2 in Dia, 8-1/2 in OAL, 6-3/4 in L Thread, Carbon Steel, Zinc Plated
The Power-Stud®+ SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal-weight concrete, sand-lightweight concrete, concrete over steel deck and grouted concrete masonry. The anchor is manufactured with a zinc plated carbon steel body and expansion clip for premium performance. Nut and washer are included.
-
BrandDeWALT®
-
UPC753527761564
-
Manufacturer Part Number7427SD1-PWR
-
CountryUSA
-
FinishZinc Plated
-
Tensile Strength4155 lb
-
Thread Length6-3/4 in
-
MaterialCarbon Steel
-
Thread Size1/2-13
-
Thread TypeUNC
-
Maximum Work Thickness5-3/4 in
-
Minimum Embedment Depth2-1/4 in
-
Shear Strength4195 lb
-
Diameter1/2 in
-
Drill Size1/2 in
-
Overall Length8-1/2 in
- Consistent performance in high and low strength concrete
- Anchor can be installed through standard fixture holes
- Anchor design allows for follow-up expansion after setting under tensile load
- Nominal drill bit size is the same as the anchor diameter
- Length ID code and identifying marking stamped on head of each anchor
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 2140531 |
-
UNSPSC31162102
-
Package DescriptionEACH
