1/2" X 3"- WEDGE BOLT ANCHOR PWR7244

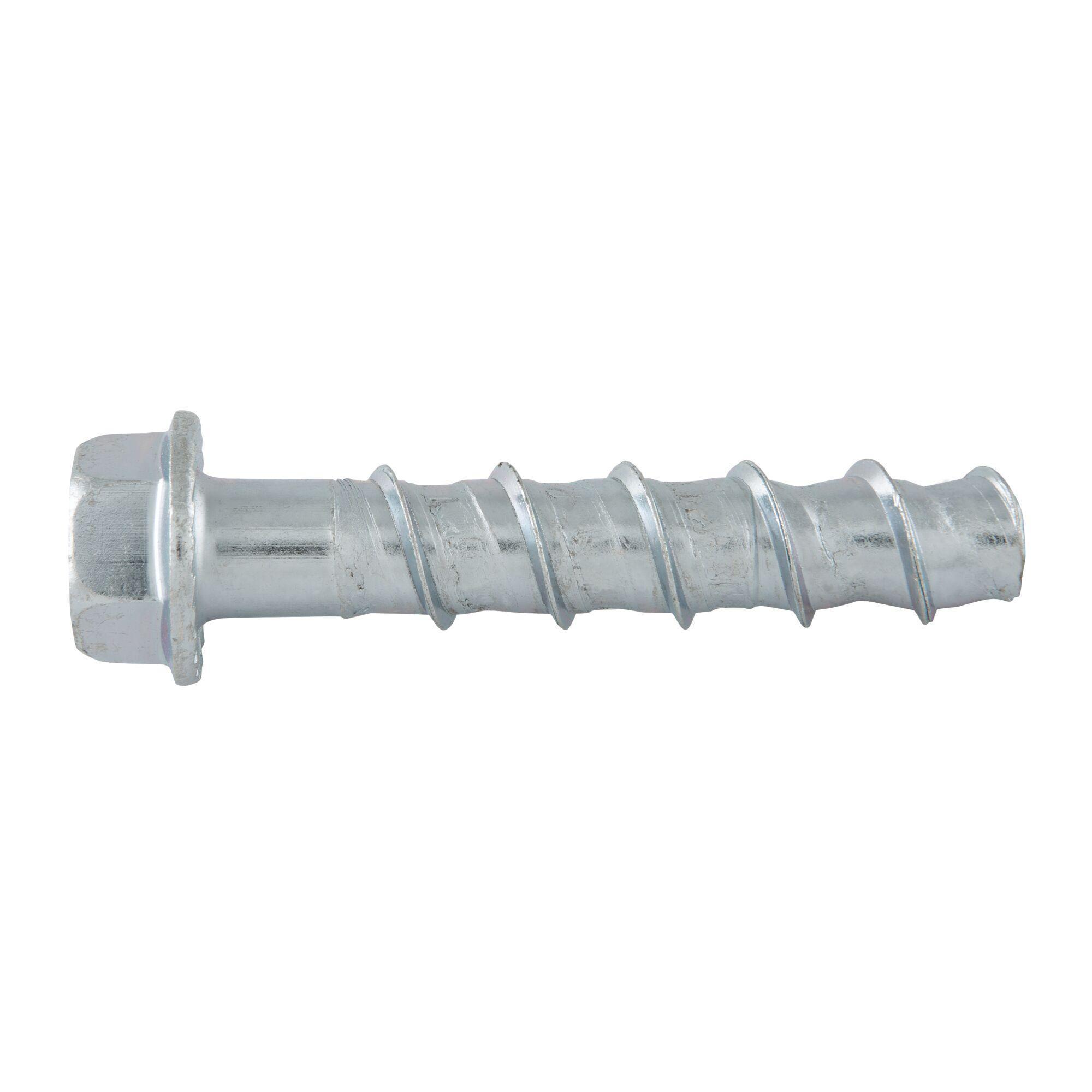

The Screw-Bolt+™ anchor is a one piece, heavy duty screw anchor with a finished hex head. It is simple to install, easy to identify and fully removable. The patented thread design, designed for use with standard ANSI drill bits, reduces installation torque and enhances productivity. The steel threads along the anchor body tap into the hole during installation to provide keyed engagement and allow for reduced edge and spacing distances. The Screw-Bolt+™ finish is available in bright zinc plated and mechanically galvanized. Suitable base materials include normal weight concrete, sand lightweight concrete, concrete over steel deck, concrete masonry and solid clay brick.
-
BrandDeWALT®
-
UPC075352305035
-
Manufacturer Part NumberPFM1411380
-
CountryUSA|Canada
-
FinishZinc Plated
-
Tensile Strength2840/3115/3595/4400 lb
-
MaterialSteel
-
Maximum Work Thickness1-1/4 in
-
Minimum Embedment Depth1-3/4 in
-
TypeHigh Performance
-
Head Drive TypeHex
-
Head Size3/4 in
-
Applicable MaterialsNormal Weight Concrete/Sand Lightweight Concrete/Concrete Over Steel Deck/Concrete Masonry/Solid Clay Brick
-
Shear Strength5985/6555/7570/9270/10705 lb
-
Diameter1/2 in
-
Drill Size1/2 in
-
Overall Length3 in
- Designed for standard ANSI tolerance drill bits
- Tough threads for tapping high strength concrete
- Can be installed closer to the edge than traditional expansion anchors
- Fast installation with powered impact wrench
- 1-piece, finished head design
- Patented thread design offers low installation torque
- Ratchet teeth on underside of hex washer head lock against the fixture
- Fully removable and re-installable in same hole

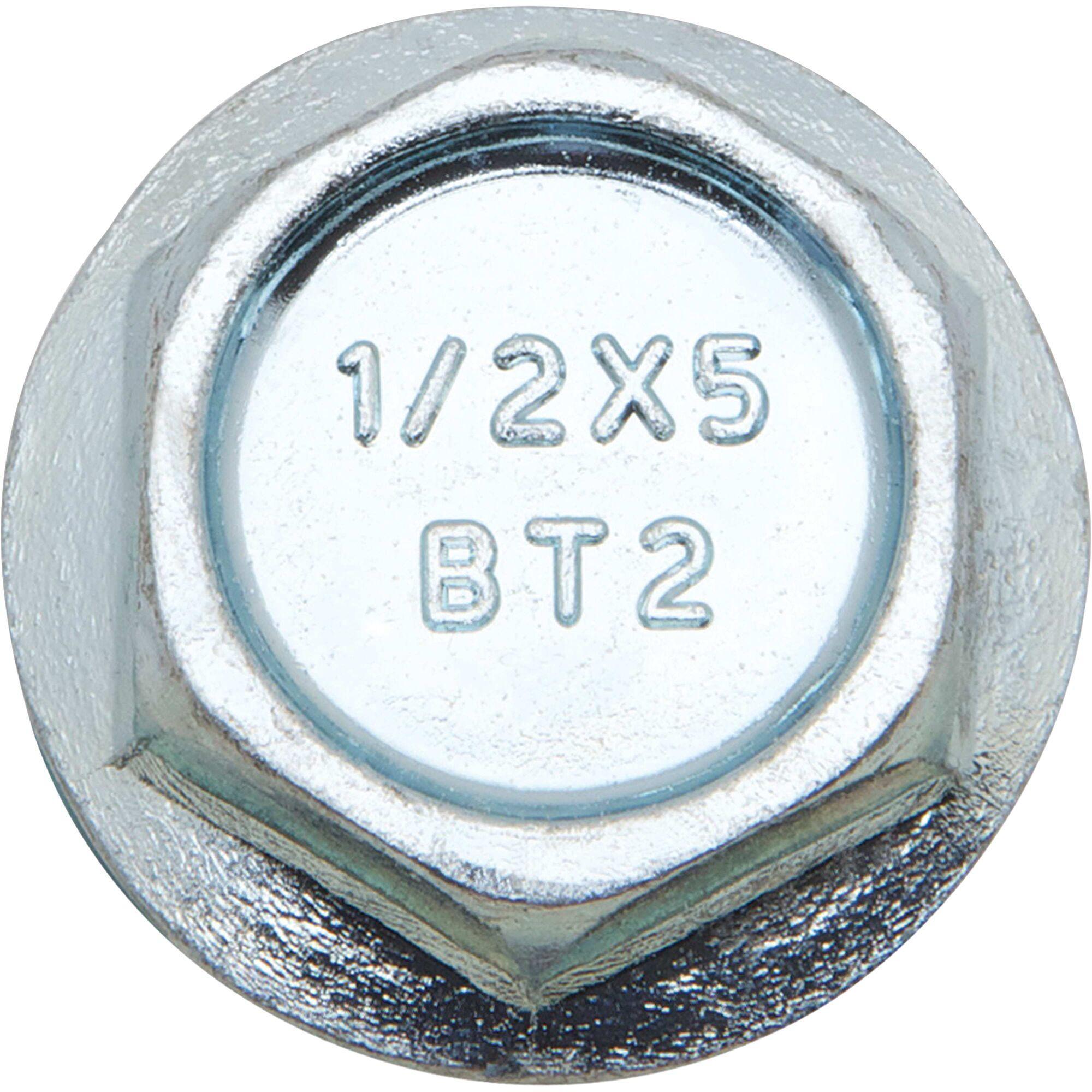

- Diameter, length and identifying marking stamped on head of each anchor
- 5985/6555/7570/9270/10705 lb at 2500/3000/4000/6000/8000 psi in normal weight concrete shear strength
- 2840/3115/3595/4400/4400 lb at 2500/3000/4000/6000/8000 psi in normal weight concrete tensile strength
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 11572554 |
-
UNSPSC31162104
-
Standards/ApprovalsICC-ES ESR-3889|ICC-ES ESR-4042|2015 IBC|2015 IRC|2012 IBC|2012 IRC|2009 IBC|2009 IRC|ACI 355.2|ICC-ES AC193
-
