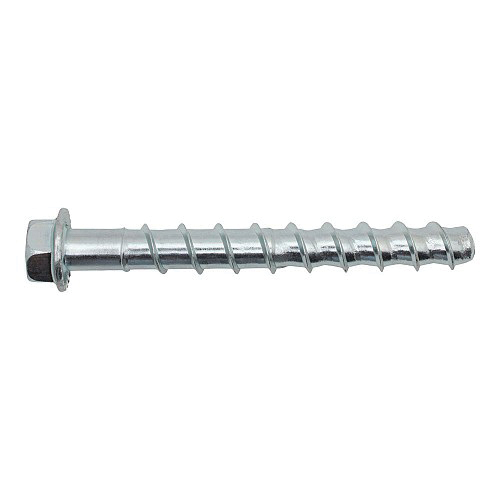

DeWALT® Screw-Bolt™ PFM1411060 1-Piece Heavy Duty High Performance Screw Anchor, 1/4 in Dia, 2-1/4 in OAL, Hex Washer Head Drive, Carbon Steel, 1 in D Min Embedment
The Screw-Bolt™ anchor is a 1-piece, heavy duty Screw Anchor with a finished hex head or flat head (countersunk). It is simple to install, easy to identify and fully removable. The patented thread design, designed for use with standard ANSI drill bits, reduces installation torque and enhances productivity. The steel threads along the anchor body tap into the hole during installation to provide keyed engagement and allow for reduced edge and spacing distances. The Screw-Bolt™ is available as bright zinc plated or mechanically galvanized plating. Suitable base materials include normal weight concrete.
-
BrandDeWALT®
-
UPC075352304922
-
Manufacturer Part NumberPFM1411060
-
CountryUSA|Canada
-
FinishZinc Plated
-
MaterialCarbon Steel
-
Minimum Embedment Depth1 in
-
Type1-Piece Heavy Duty High Performance
-
Head Drive TypeHex Washer
-
Head Size21/64 in H
-
Applicable MaterialsBrick Masonry, Concrete Over Steel Deck, Grouted Concrete Masonry, Lightweight Concrete and Normal Weight Concrete
-
Diameter1/4 in
-
Drill Size1/4 in
-
Overall Length2-1/4 in
- Designed for standard ANSI tolerance drill bits
- Low installation torque in concrete and masonry
- Ratchet teeth on underside of hex washer head lock against the fixture
- Fully removable and reinstallable in same hole

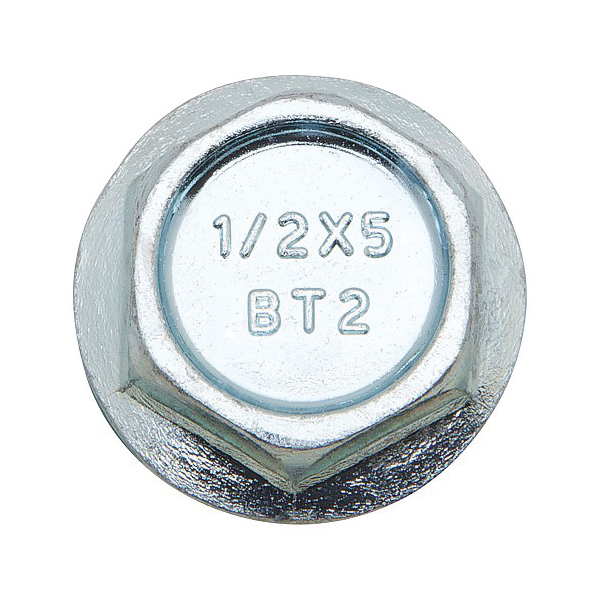

- Diameter, length and identifying marking stamped on head of each anchor
- Patented thread design offers toughened threads for tapping high strength concrete
- Universal product for concrete and grouted/solid masonry
- Can be installed closer to a free edge than traditional expansion anchors
- Fast installation with powered impact wrench, but can also be installed manually
- 1-piece, finished head design
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 11572543 |
-
UNSPSC31161526
-
Standards/ApprovalsACI 318|ACI 355.2|ASTM E488|ASTM B633, SC1 Type II|ESR-388|ESR-4042|IBC/IRC 2018/2015/2012/2009|ICC-ES AC193
-
Specification Sheet
