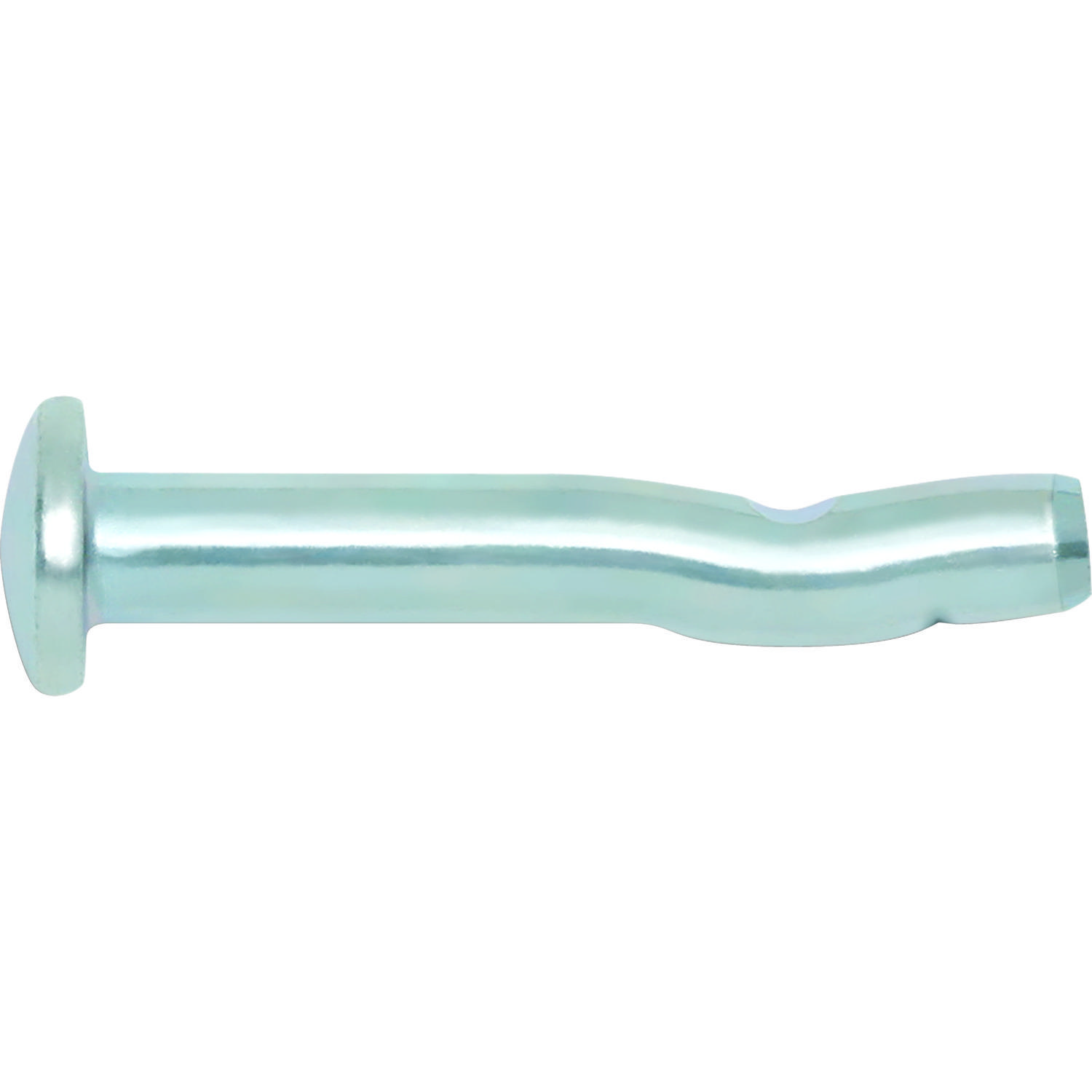

DeWALT® 5508 SPIKE® Tamperproof Pre-Expanded Pin Anchor, 3/16 in Dia, 2-1/2 in OAL, Carbon Steel Body Shell, Carbon Steel Pin, Mushroom Head Head
The SPIKE® anchor is a patented, 1-piece, tamper proof vibration-resistant anchor for use in concrete, block, brick or stone. Several head styles and anchor materials are available. The SPIKE® anchor is formed with an "s" shaped configuration at the working end of the anchor to create an expansion mechanism. Since the anchor is pre-expanded, there is no secondary tightening operation required which greatly reduces the overall cost of an anchor installation.
-
BrandDeWALT®
-
UPC075352155081
-
Manufacturer Part Number5508
-
CountryUSA
-
FinishZinc Plated
-
MaterialCarbon Steel
-
Minimum Embedment Depth1-1/4 in
-
TypeTamperproof
-
Head Size7/16 in OD x 7/64 in H
-
Head TypeMushroom Head
-
Hole Diameter1/4 in
-
Diameter3/16 in
-
Drill Size3/16 in
-
Overall Length2-1/2 in
-
SeriesSPIKE®
-
Body Shell MaterialCarbon Steel
-
Pin MaterialCarbon Steel
- Pre-expanded anchor design allows for easy installation
- Mushroom and flat head Spike anchors are tamperproof
- Forming SPIKE®, which is removable, can be used for temporary installations
- Pipe and tie wire SPIKE® is an easy to install alternative to direct fastening
| Competitor Name | Cross-Reference Number |
|---|---|
| Fastenal | 2141120 |
-
UNSPSC31162100
-
Standards/ApprovalsASTM E488|AC01
-
Package Description100/BX
-
