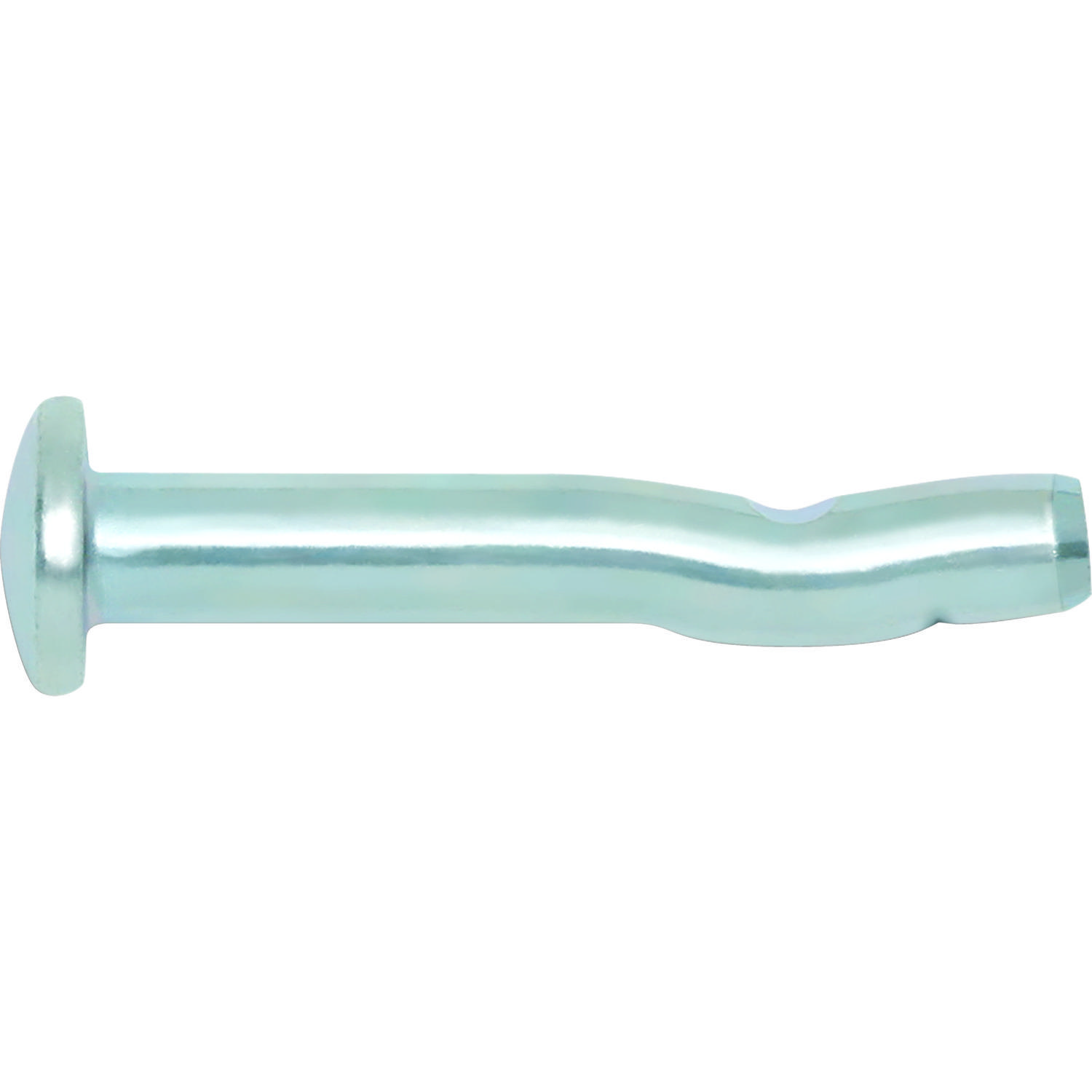

DeWALT® Spike® 05506-PWR 1-Piece Pin Anchor, 3/16 in Dia, 2 in OAL, Mushroom Head, Carbon Steel
The Spike® is a 1-piece, vibration-resistant anchor for use in concrete block or stone. Several head styles, including tamperproof versions and anchor materials are available. The Spike® anchor is formed with an "s" shaped configuration at the working end of the anchor to create an expansion mechanism. Since the anchor is pre-formed, there is no secondary tightening operation required which greatly reduces the overall cost of an anchor installation.
-
BrandDeWALT®
-
UPC075352055060
-
Manufacturer Part Number05506-PWR
-
CountryUSA|Canada
-
FinishZinc Plated
-
MaterialCarbon Steel
-
Minimum Embedment Depth1-1/4 in
-
Type1-Piece
-
Head Size7/16 in OD x 7/64 in H
-
Head TypeMushroom
-
Hole Diameter1/4 in
-
Diameter3/16 in
-
Drill Size3/16 in
-
Overall Length2 in
- Pre-expanded anchor design allows for easy installation
- Forming Spike®, which is removable, can be used for temporary installations
- Mushroom and flat head Spike® anchors are tamperproof
- Pipe and tie-wire Spike® is a simple to install alternative to direct fastening (e.g. powder actuated)
-
UNSPSC31162100
-
Standards/ApprovalsAC01|AISI 1038|ASTM B633, SC1, Type III (Fe/Zn5)|ASTM E488
-
Specification Sheet
