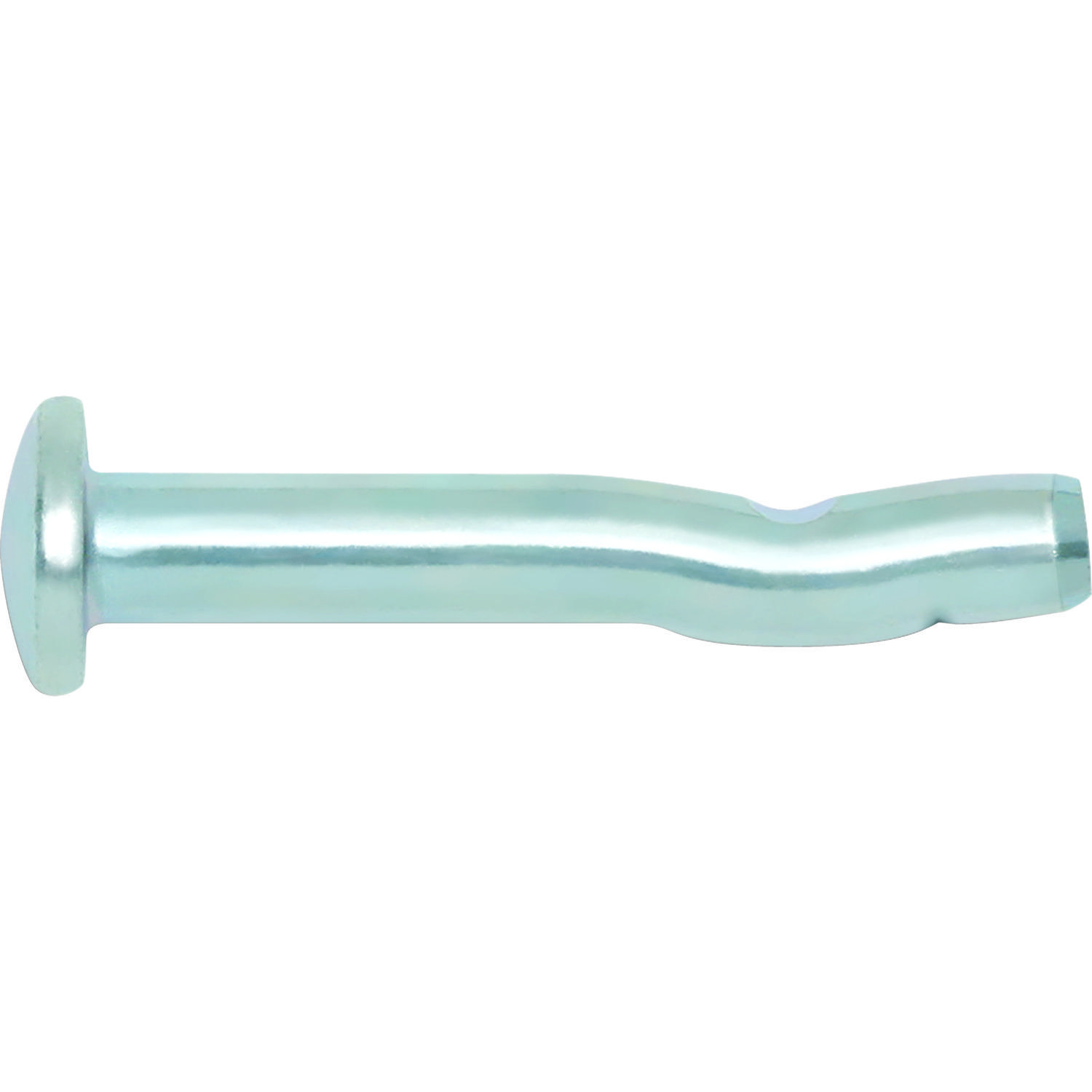

POWERS 1/4" X 3" MUSH/HD MASONRY SPIKES PWR 5530
The Spike® is a, one-piece, vibration-resistant Anchor for use in concrete block or stone. Several head styles, including tamperproof versions and Anchor materials are available. The Spike® Anchor is formed with an "s" shaped configuration at the working end of the Anchor to create an expansion mechanism. Since the Anchor is pre-formed, there is no secondary tightening operation required which greatly reduces the overall cost of an Anchor installation.
-
BrandDeWALT®
-
UPC075352055305
-
Manufacturer Part Number05530-PWR
-
CountryUSA|Canada
-
FinishZinc Plated
-
MaterialCarbon Steel
-
Minimum Embedment Depth1-1/4 in
-
Head Size1/2 in OD x 7/64 in H
-
Head TypeMushroom
-
Diameter1/4 in
-
Drill Size1/4 in
-
Overall Length3 in
- Pre-expanded Anchor design allows for easy installation
- Mushroom and flat head Spike® Anchors are tamper-proof
- Pipe and tie-wire Spike® is a simple to install alternative to direct fastening
| Competitor Name | Cross-Reference Number |
|---|---|
| Fastenal | 2141129 |
-
UNSPSC31162100
-
Package Description100/BX
-
Standards/ApprovalsASTM E488|AC01|AISI 1038|ASTM B633 SC1 Type III
-
