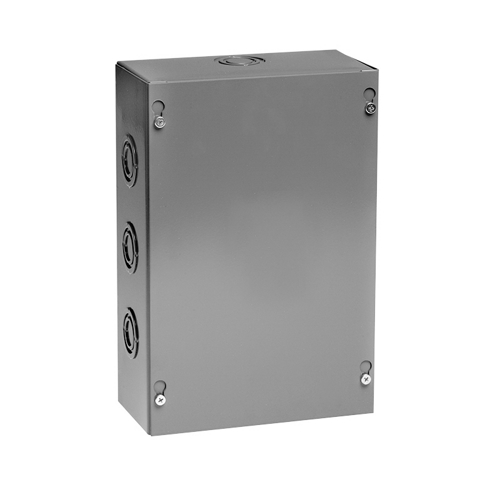

UNITY 10" X 10" X 4" ELEC/PULL BOXES UNY 10104-SC
Unity Manufacturing's nationwide network of sales representatives are your source for type 1, 3, and 3R electrical enclosures and custom, engineered-to-order solutions. Our robust inventory levels enable us to meet even the most challenging and immediate customer needs with speed, accuracy and reliability.
-
BrandUnity
-
UPC761515224304
-
Manufacturer Part Number10104SC
-
CountryUSA
-
Cable Entry Size(2) 1/2 to 3/4 in, (2) 1/2 to 3/4 in Bottom
-
FinishPowder Coated
-
MaterialSteel
-
ColorGun Smoke Gray
-
Mounting TypeSurface
-
NEMA RatingNEMA 1/IP30
-
Height10 in
-
Cover TypeThreaded
-
Width10 in
-
Depth4 in
- Enclosure and cover are manufactured from 16 code gauge, low carbon steel
- Covers have keyhole slots which allow the plated screws to stay in place and make for easy installation
- Embossed grounding provision on sizes up to 24 x 24 x 12 in
- Holes are incorporated into the back of enclosure for easy mounting
- ANSI 61 light gray, thermoset polyester powder coated over phosphatized surface finish
- Intended for indoor use primarily to provide a degree of protection against limited amounts of falling dirt
- Cover is secured to the body with plated hex head combo screws, protects against contact with enclosed equipment
- Screw terminal connection
- Box comes with knockouts at (2) (1/2 to 3/4 in) conduit concentric knockout top, (2) (3/4 to 1 in) conduit concentric knockout top, (1) (1 to 1-1/4 in) conduit concentric knockout top, (2) (1/2 to 3/4 in) conduit concentric knockout bottom, (2) (3/4 to 1 in) conduit concentric knockout bottom, (1) (1 to 1-1/4 in) conduit concentric knockout bottom, (1/2 to 3/4 in), (3/4 to 1 in), (1/2 to 3/4 in), (3/4 to 1 in) each side freeform pattern knockout location to provide entry for wires
-
UNSPSC39121332
-
Standards/ApprovalscULus Listed|CSA C22.2 File No. 40 Certified|IEC 60529|RoHS Compliant|UL 50/50E Listed
