B-3188-4-SS-4 B-LINE

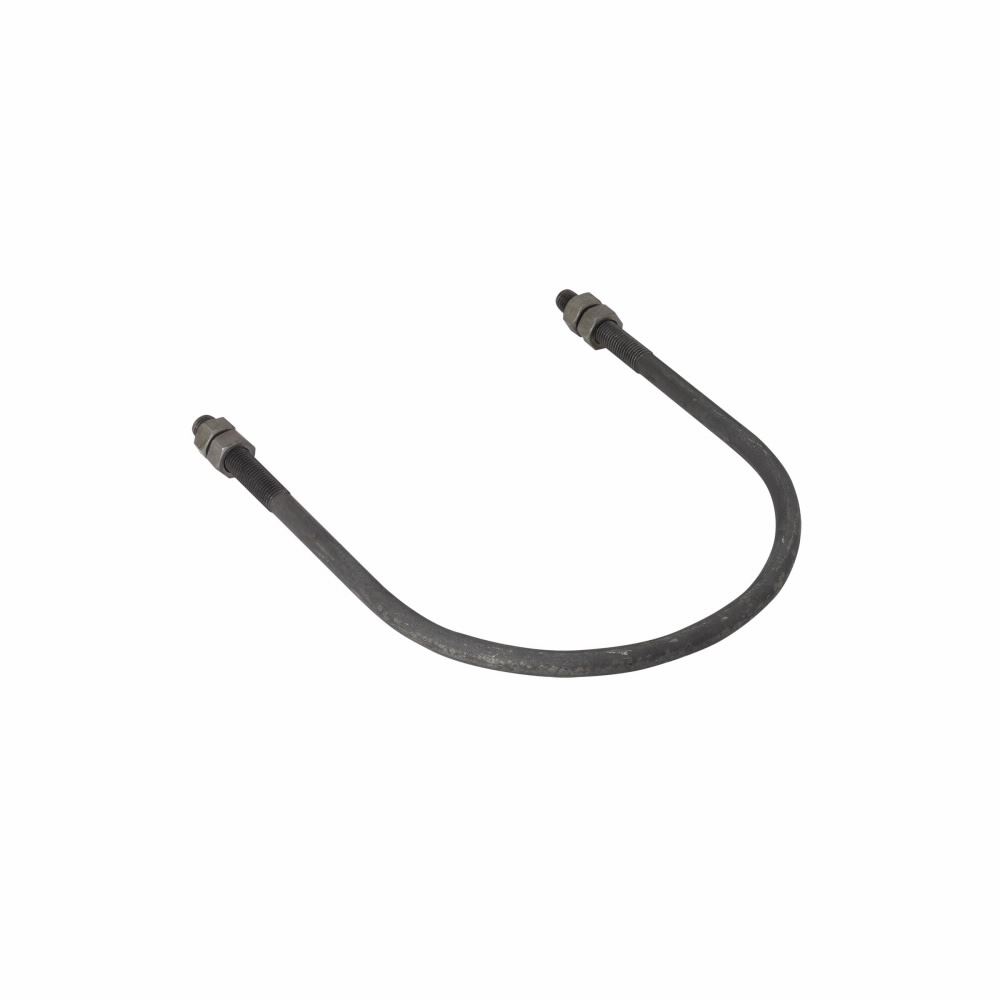

4" STAINLESS STEEL U-BOLT-BLNB31884SS4 >
Recently Viewed
4" STAINLESS STEEL U-BOLT-BLNB31884SS4 >
Description
–
5" Standard U-Bolt (Zinc Plated)
Size Range: Size 1/2" (15mm) thru 30" (900mm) pipe
Material: Steel
Function: Recommended for support, anchor or guide of pipe.
Approvals: Underwriters Laboratories Listed 3/4" (20mm) thru 12" (300mm). Conforms to Federal Specification WW-H-171E & A-A-1192A, Type 24 and Manufacturers Standardization Society ANSI/MSS SP-69 & SP-58, Type 24.
Maximum Temperature: 750°F (399°C)
Finish: Zinc Plated
Size Range: Size 1/2" (15mm) thru 30" (900mm) pipe
Material: Steel
Function: Recommended for support, anchor or guide of pipe.
Approvals: Underwriters Laboratories Listed 3/4" (20mm) thru 12" (300mm). Conforms to Federal Specification WW-H-171E & A-A-1192A, Type 24 and Manufacturers Standardization Society ANSI/MSS SP-69 & SP-58, Type 24.
Maximum Temperature: 750°F (399°C)
Finish: Zinc Plated
Standard U-Bolt with 4 Hex Nut, 304 Stainless Steel, 1/2 in. -13 Thread, 3 in. L Thread, 7.5 H x 3 D in.
