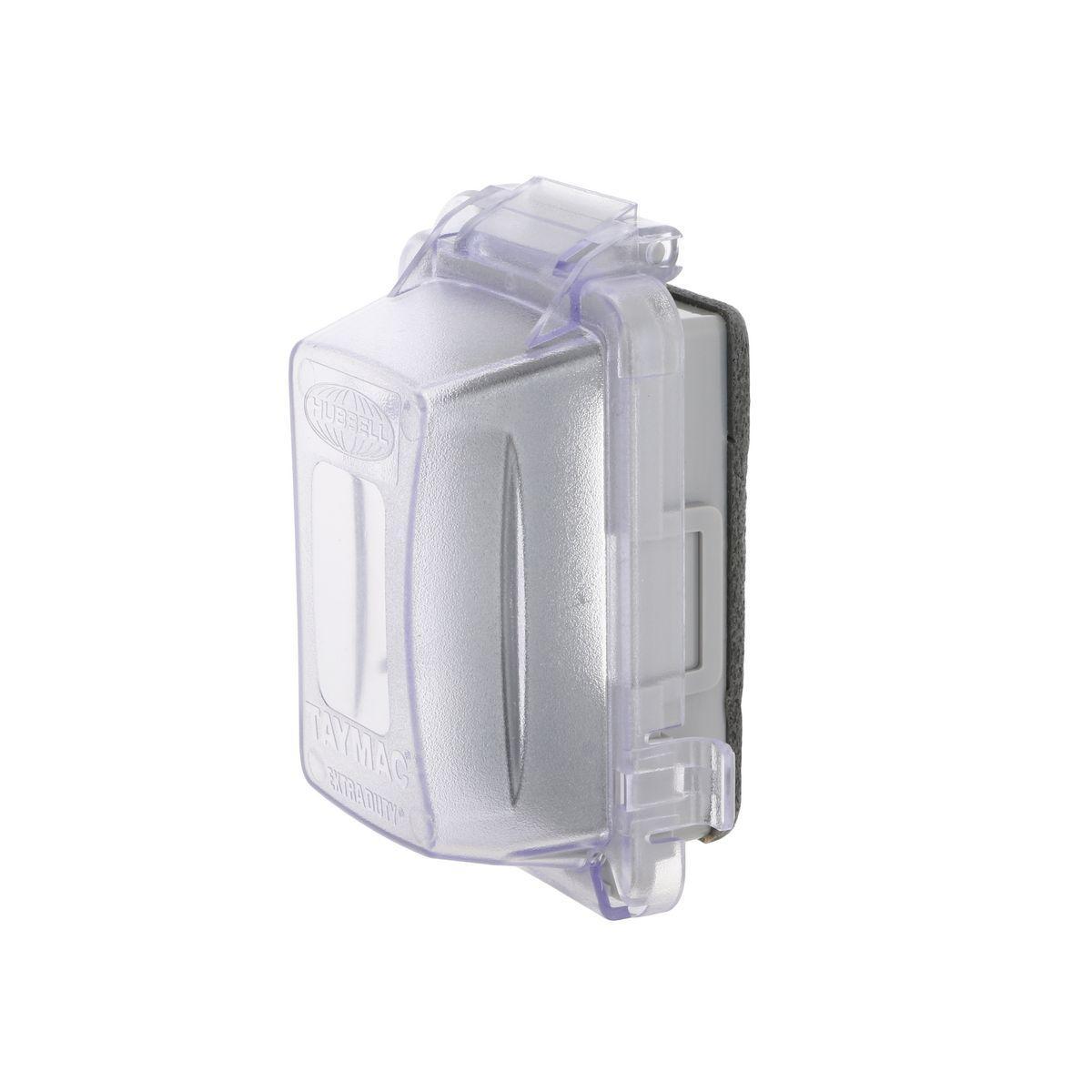

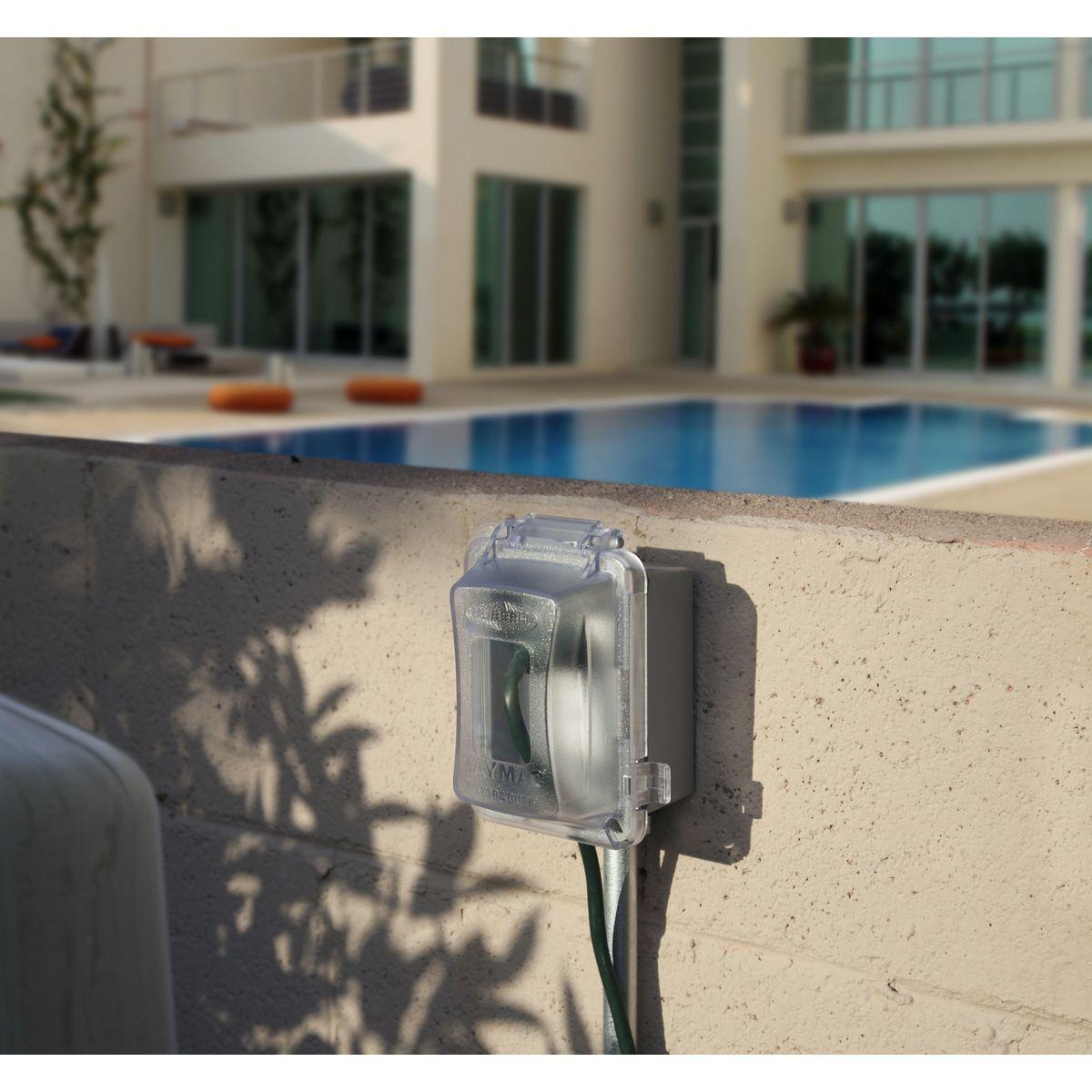

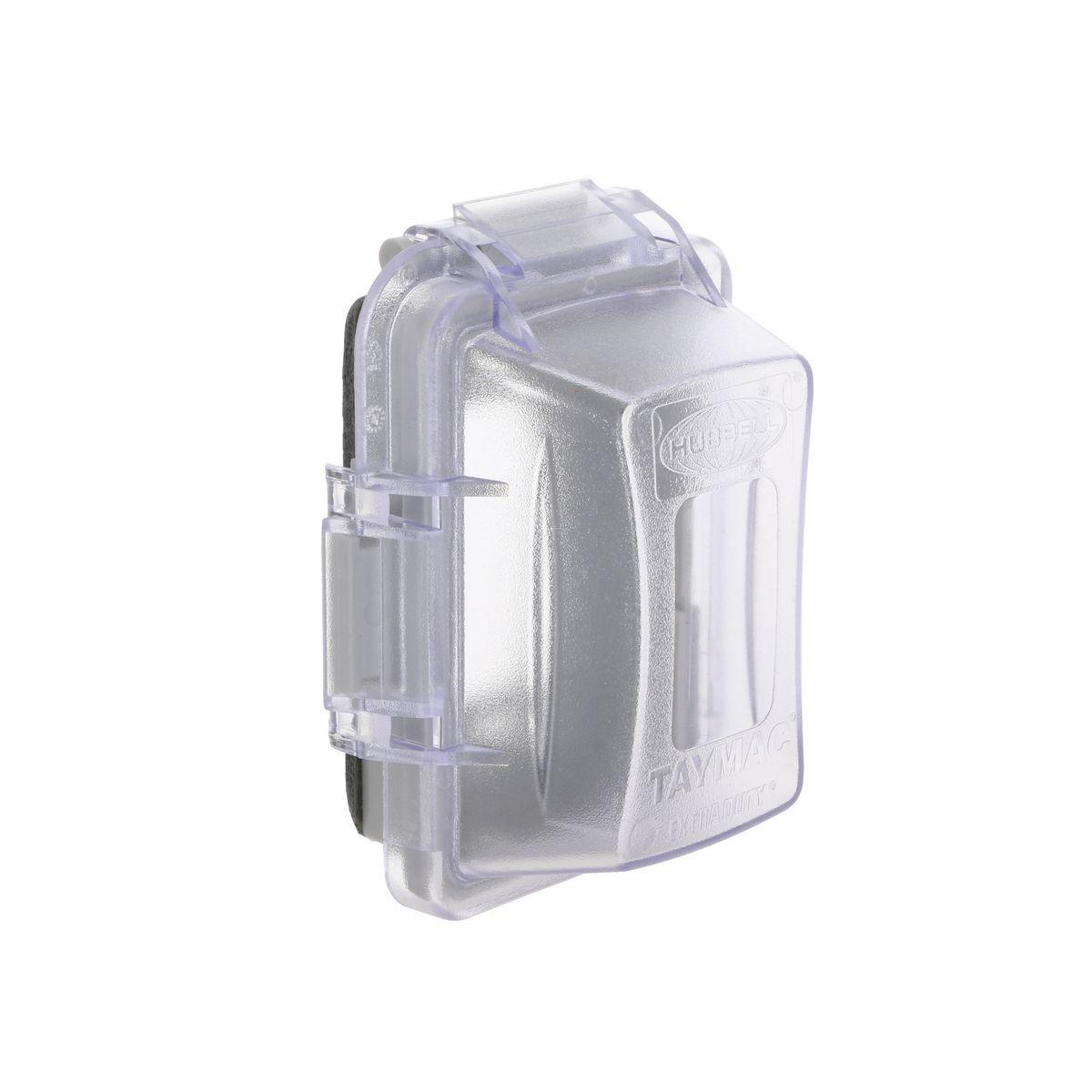

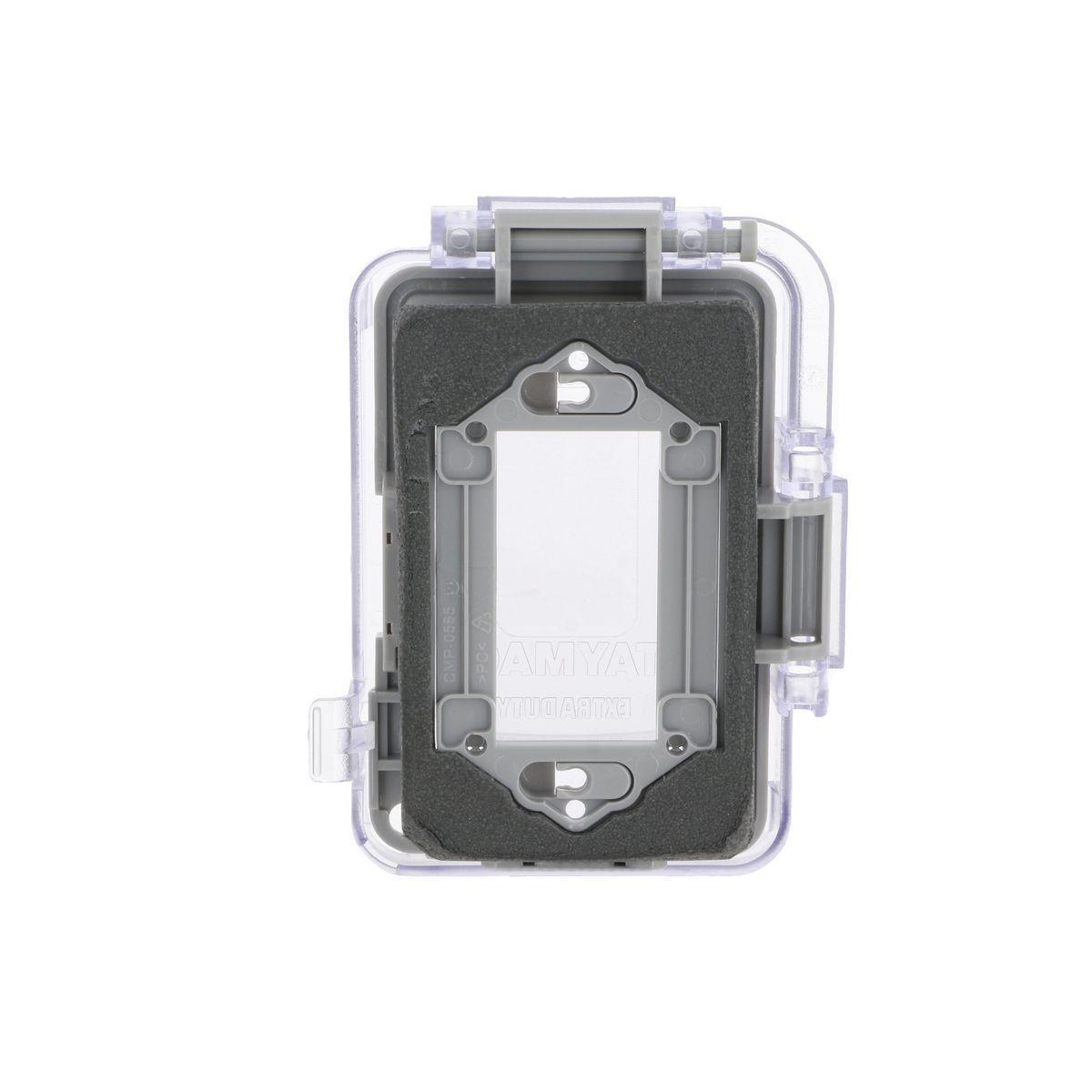

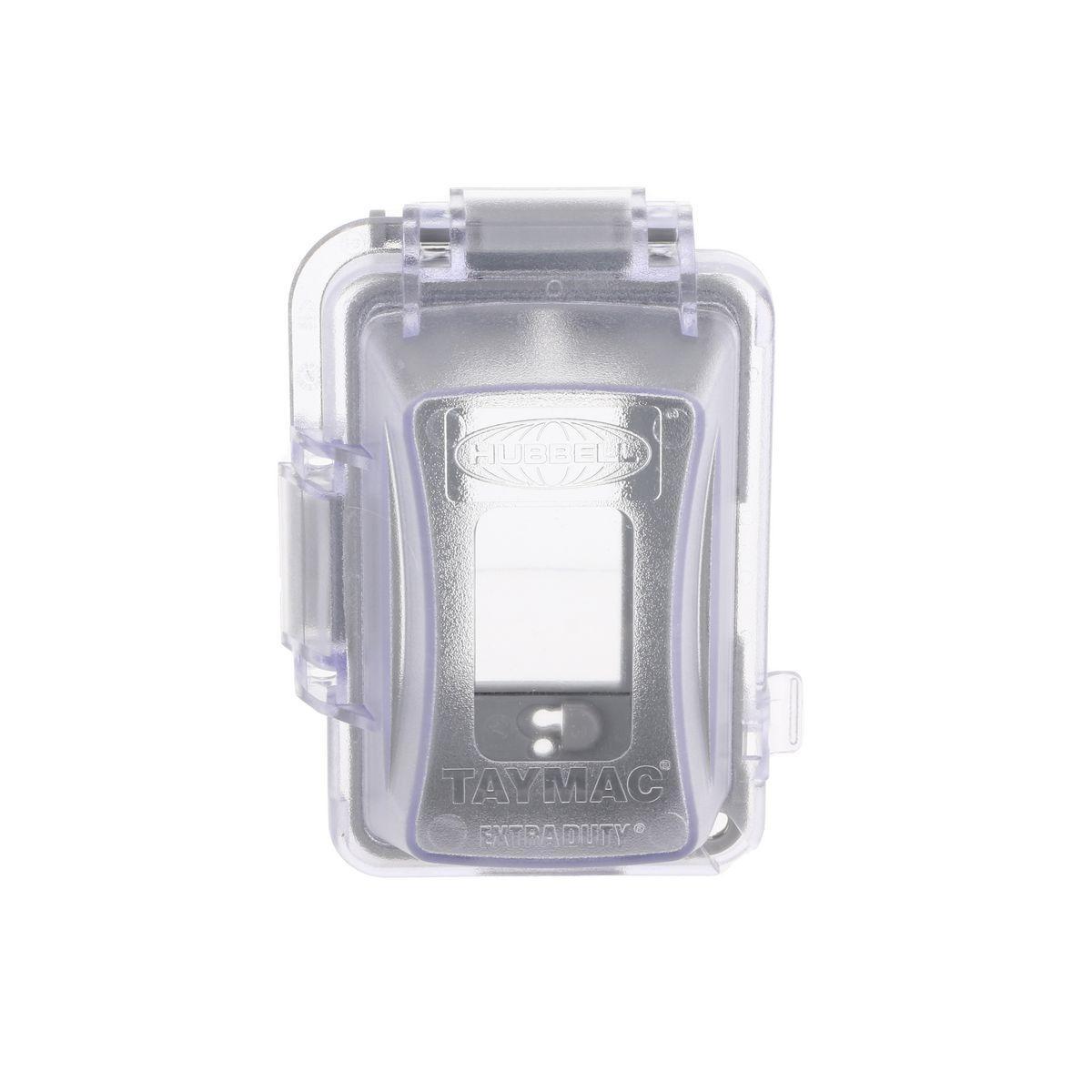

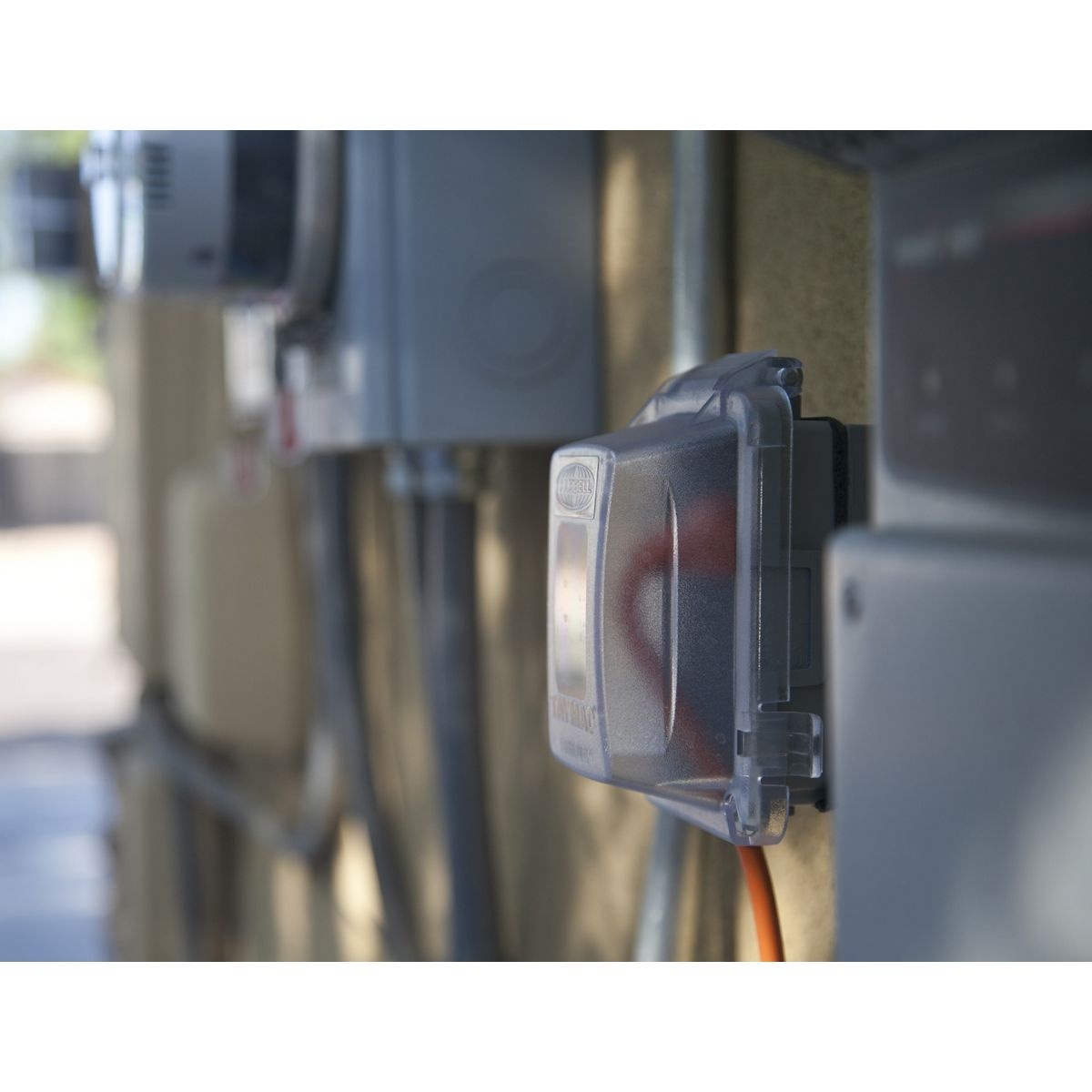

TAYMAC® MM420C Extra Duty Non-Metallic Standard While-In-Use Cover, 5.9 in L 4.18 in W 2-3/4 in D, Weatherproof Cover, Polycarbonate
1-Gang Weatherproof In-Use Cover, EXTRA DUTY®, 16-in-1, 2-3/4 in. Deep, Clear
-
BrandTAYMAC®
-
UPC050169917275
-
Manufacturer Part NumberMM420C
-
CountryUSA|Canada
-
MaterialPolycarbonate
-
ColorClear
-
TypeExtra Duty Non-Metallic Standard
-
Mounting TypeSurface
-
Width4.18 in
-
Number of Gangs1
-
Depth2-3/4 in
-
Length5.9 in
-
Capacity72.76 cu-in
-
Mounting OrientationHorizontal/Vertical
-
Cover TypeWeatherproof
- Lockable tab (1/4 in shackle)
- Quick-Fit keyhole mounting system allows installation in under a minute
- Universal Fit Adapter System Technology (U-Fast) for 16-in-1 custom device configurations, comes pre-configured for GFCI
- High-impact polycarbonate construction provides maximum durability
- Horizontal or vertical mount
-
Alternative Part Number14881416
-
UNSPSC39121700
-
IDEA Index ID14881416
-
IncludesGasket and Mounting Hardware
-
Package DescriptionEACH
-
Standards/Approvals2015 CEC Compliant|cULus Listed|TAA Compliant
-
Warranty1 Year
-
Warranty Information
-
Owners/User Manual
-
Full Engineering Drawing
-
Specification Sheet
-
Line Drawing
