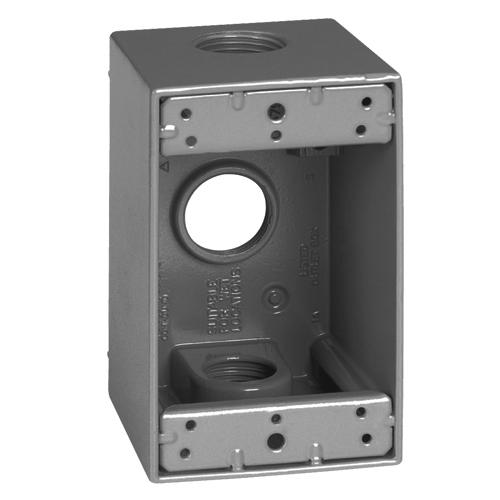

Appleton® ETP™ WDM175 Weatherproof Outlet Box, Die Cast Aluminum, 25.5 cu-in, 1 Gang, 3 Outlets, 4.56 in H x 2.81 in W x 2.63 in D
Appleton™ and O-Z/Gedney™ one-and two-gang metallic weatherproof outlet boxes, extension and covers are designed for branch circuit wiring in wet, damp or dry locations. They may be used as a junction box or a device box for switches, receptacles, GFCIs, etc. The continuous, seamless die cast construction prevents entry of dirt, dust and moisture. A polyester powder coating provides weatherproof durability. Continuous box and cover compression ensure complete sealing at gasket interface to prevent moisture entry.
-
BrandAppleton®
-
UPC687855030309
-
Manufacturer Part NumberWDM175
-
CountryUSA|Canada
-
Capacity25.5 cu-in
-
FinishPolyester Powder Coated
-
MaterialDie Cast Aluminum
-
ColorGray
-
Number of Gangs1
-
Hub Size3/4 in
-
Number of Outlets3
-
Dimensions4.56 in H x 2.81 in W x 2.63 in D
- Rugged continuous and seamless die cast construction prevents entry of dirt, dust and moisture
- Polyester powder coating is applied for uniform cosmetic coating and weatherproof durability
- Mounting can be achieved with mounting lugs (provided) or by using the integral mounting knockouts
- Smooth, accurately tapped hubs prevent wire abrasion
- Clear UL marking and volumetric marking cast into each box and extension ring facilitate electrical inspection
- Continuous box and cover compression ensure complete sealing at gasket interface to prevent moisture entry
- Lockable covers and covers with integral devices are offered
- Mounting hardware and gasket provided with each cover
- Locking swivel knuckle on lamp holders permits positive lamp positioning and accurate directional aiming
- Lamp holders are supplied with all hardware including locknuts, porcelain sockets and internal gaskets for reliability and weather protection
- Photocells and lamp holders are supplied with long leads (4 in from the end of the knuckle) to facilitate wiring
- Lighting fixtures are factory assembled and fully gasketed to ensure fast and easy installation
- Complete installation instructions are provided with each item
- In use covers include patented inserts and comply with NEC requirements
-
Alternative Part Number8987383
-
UNSPSC39121305
-
IDEA Index ID8987383
-
Package DescriptionEACH
-
Standards/ApprovalsCSA C22.2 No. 18.1/250.0|cUL File No. E2527|NEMA FB-1/OS-1|UL Standard 514A|UL 514D|UL 1598|UL Listed E2527/E53330
-
Specification Sheet
