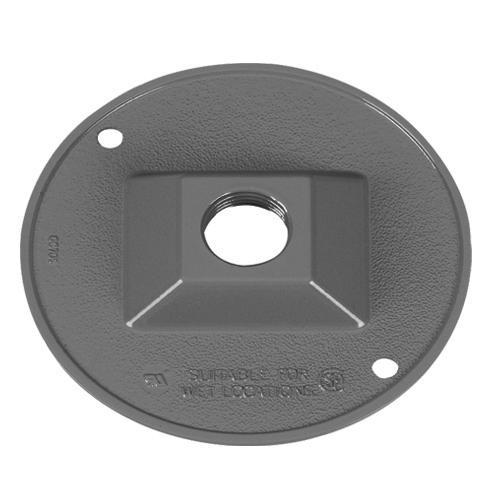

Appleton® ETP™ WCR150 Raised Universal Weatherproof Outlet Box Cover, 4 in Dia, Die Cast Aluminum
Appleton® ETP™ WCR150 Raised Universal Weatherproof Outlet Box Cover, 4 in Dia, Die Cast Aluminum
-
BrandAppleton®
-
UPC687855030217
-
Manufacturer Part NumberWCR150
-
CountryUSA
-
FinishPolyester Powder Coated
-
MaterialDie Cast Aluminum
-
ColorGray
-
TypeRaised Universal Weatherproof
-
Mounting TypeSurface
-
Number of Gangs1
-
ShapeRound
-
Number of Knockouts1
-
Number of Outlets1
-
Diameter4 in
- Rugged continuous and seamless die-cast construction prevents entry of dirt, dust and moisture
- Polyester powder coating is applied for uniform cosmetic coating and weatherproof durability
- Mounting can be achieved with mounting lugs (provided) or by using the integral mounting knockouts
- Smooth, accurately tapped hubs prevent wire abrasion
- Clear UL marking and volumetric marking cast into each box and extension ring facilitate electrical inspection
- Photocells and lampholders are supplied with long leads (4 in from the end of the knuckle) to facilitate wiring
- Lighting fixtures are factory assembled and fully gasketed to ensure fast and easy installation
- Lighting fixtures are individually boxed, labeled and bar coded for ease of handling and identification
- Continuous box and cover compression ensure complete sealing at gasket interface to prevent moisture entry
- Lockable covers and covers with integral devices are offered
- 1/2 in hub
-
Alternative Part Number8987350
-
UNSPSC39121304
-
IDEA Index ID8987350
-
IncludesRaised Cover, 1/2 in Hub, Gasket and Mounting Hardware
-
Package DescriptionEACH
-
Standards/ApprovalsCSA C22.2 18.1/250|NEMA OS-1|UL 514A|UL 159
-
Specification Sheet
