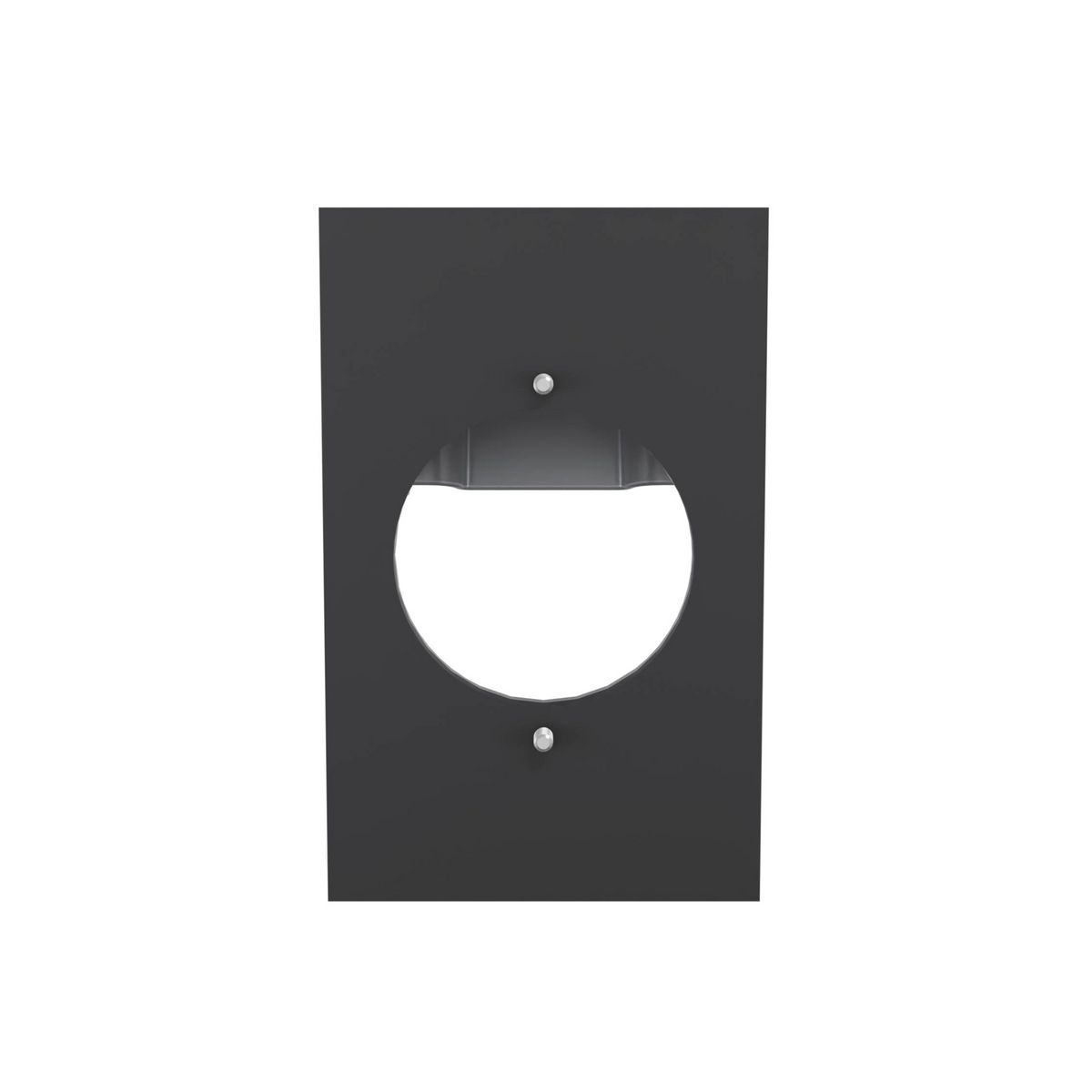

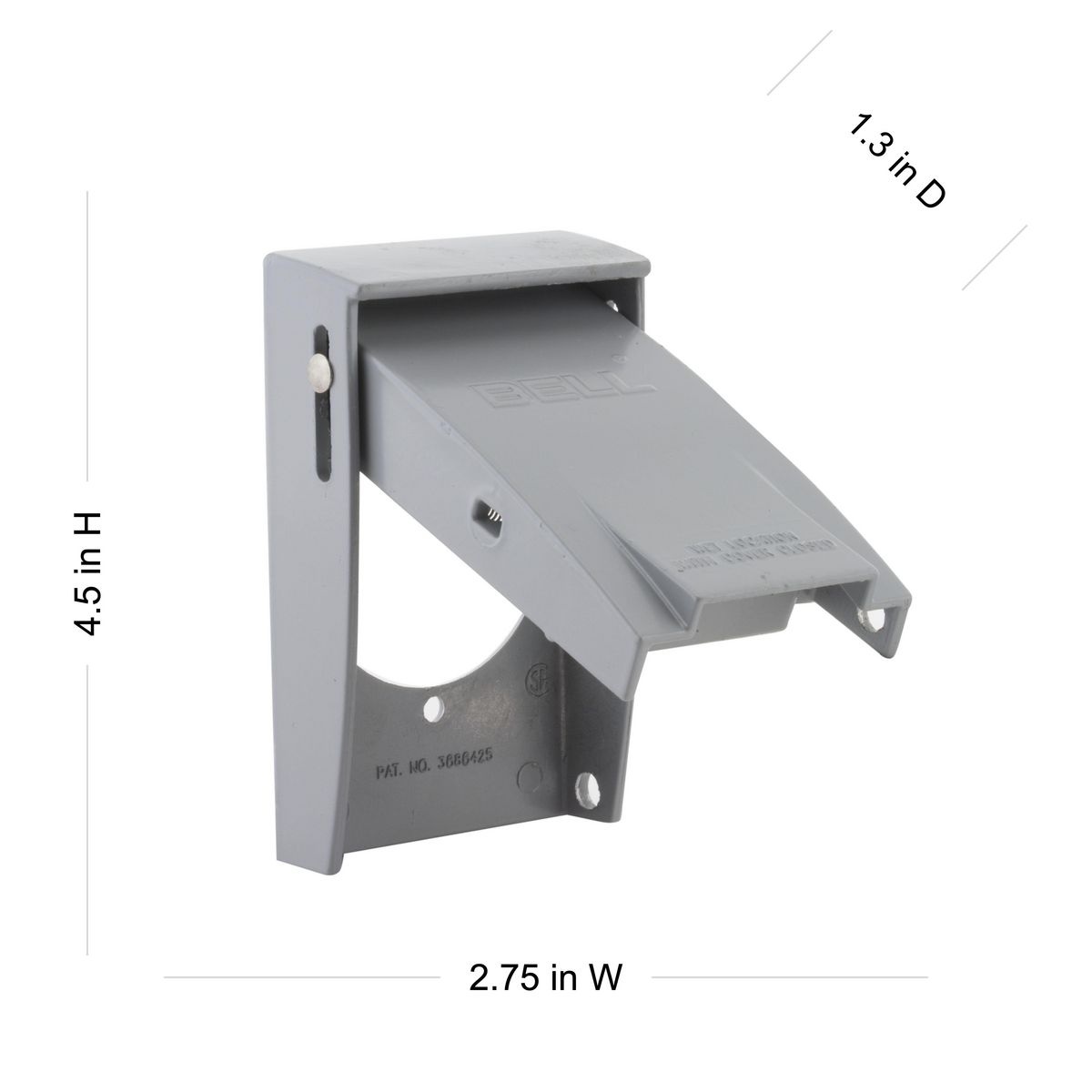

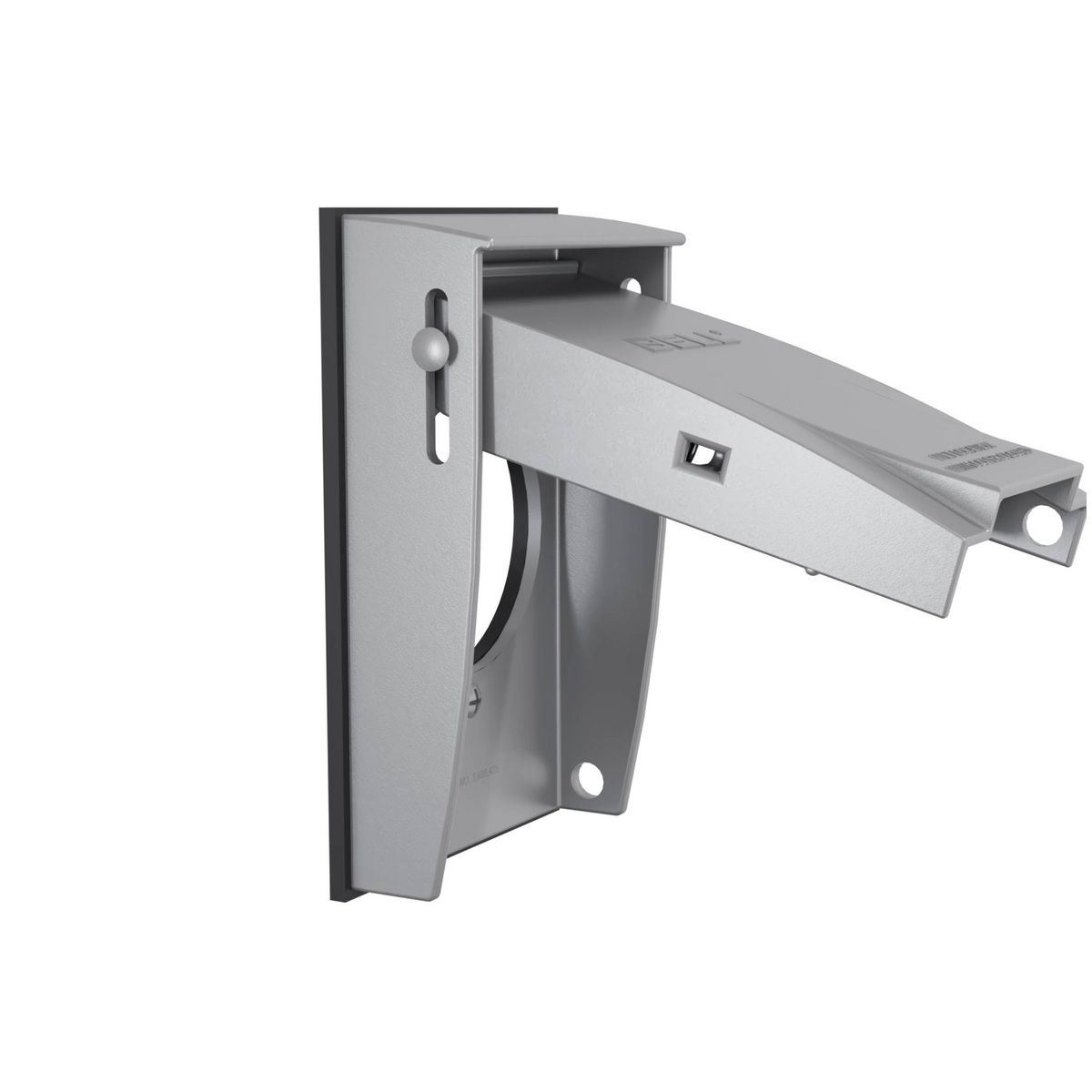

BELL® Rayntite® 5030-0 Weatherproof Flip Cover, 2.15 in Dia, 2-3/4 in L x 2-3/4 in W x 1-1/8 to 4-7/16 in D, Die Cast Aluminum
BELL® Rayntite® 5030-0 Weatherproof Flip Cover, 2.15 in Dia, 2-3/4 in L x 2-3/4 in W x 1-1/8 to 4-7/16 in D, Die Cast Aluminum
-
BrandBELL®
-
UPC050169503003
-
Manufacturer Part Number5030-0
-
CountryUSA|Canada
-
FinishPowder Coated
-
MaterialDie Cast Aluminum
-
ColorGray
-
Mounting OrientationVertical
-
Mounting TypeSurface
-
Width2-3/4 in
-
Number of Gangs1
-
Depth1-1/8 to 4-7/16 in
-
Number of Outlets1
-
Diameter2.15 in
-
Length2-3/4 in
- State-of-the-art powder coat finish provides maximum weatherability and scratch resistance
- May be mounted to box or device
- Self-closing lids assure weatherproof protection when the receptacle is not in use
- Multi-lingual instructions in each package
- For use with 30 to 50A switch
- Vertical mount covers padlockable
- May be mounted to box or device
- Die-cast aluminum material
- Rugged construction
| Cross-Reference Number |
|---|
| 541257 |
-
Alternative Part Number8702707
-
UNSPSC39131708
-
IDEA Index ID8702707
-
Package DescriptionEACH
-
Standards/ApprovalsUL File No. E195978|CSA C22.2 No. 18|NEC 2014 Article 406.9A|NEMA 3R|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
-
Warranty1 Year
-
SDS
-
Warranty Information
-
Catalog
-
Specification Sheet
-
Full Engineering Drawing
