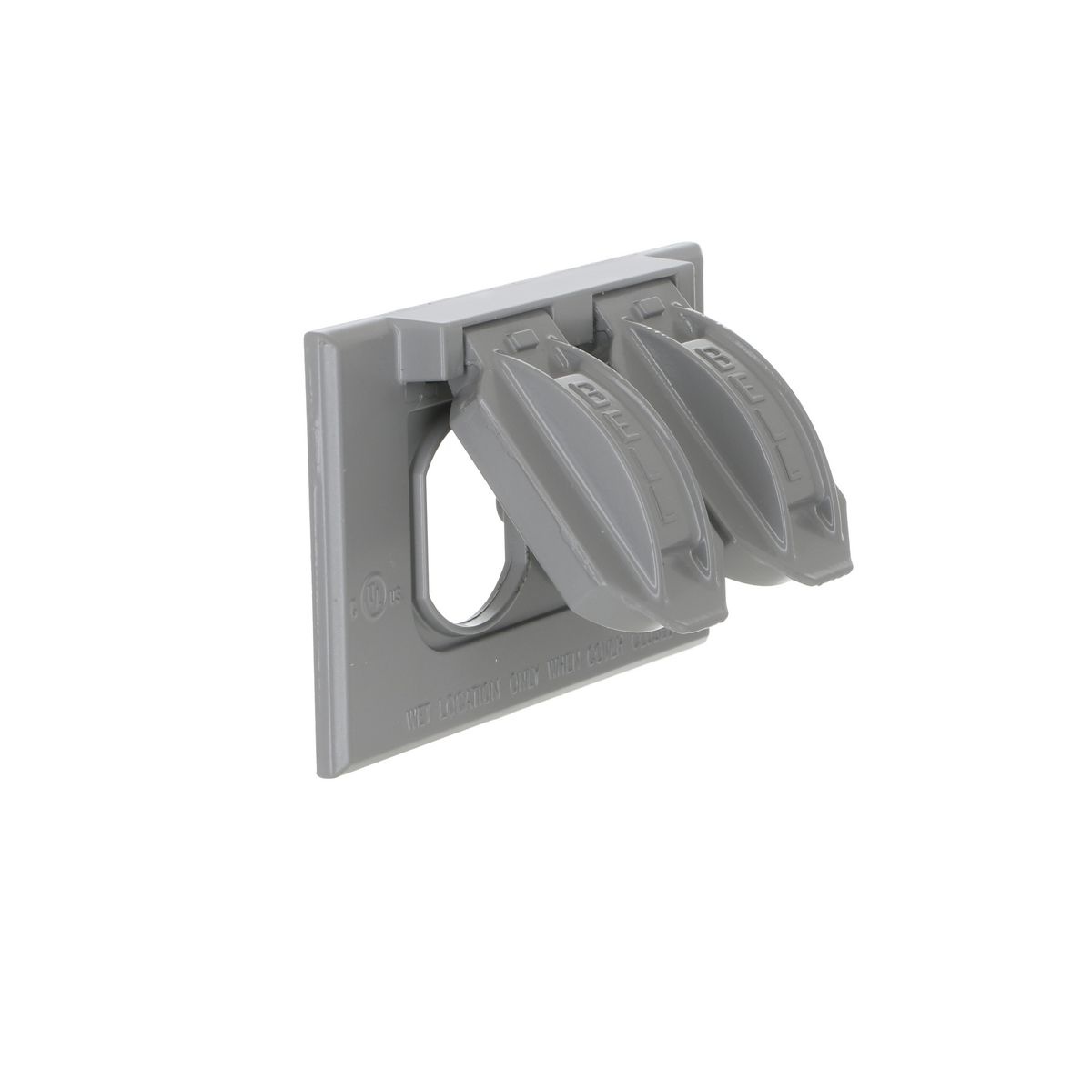

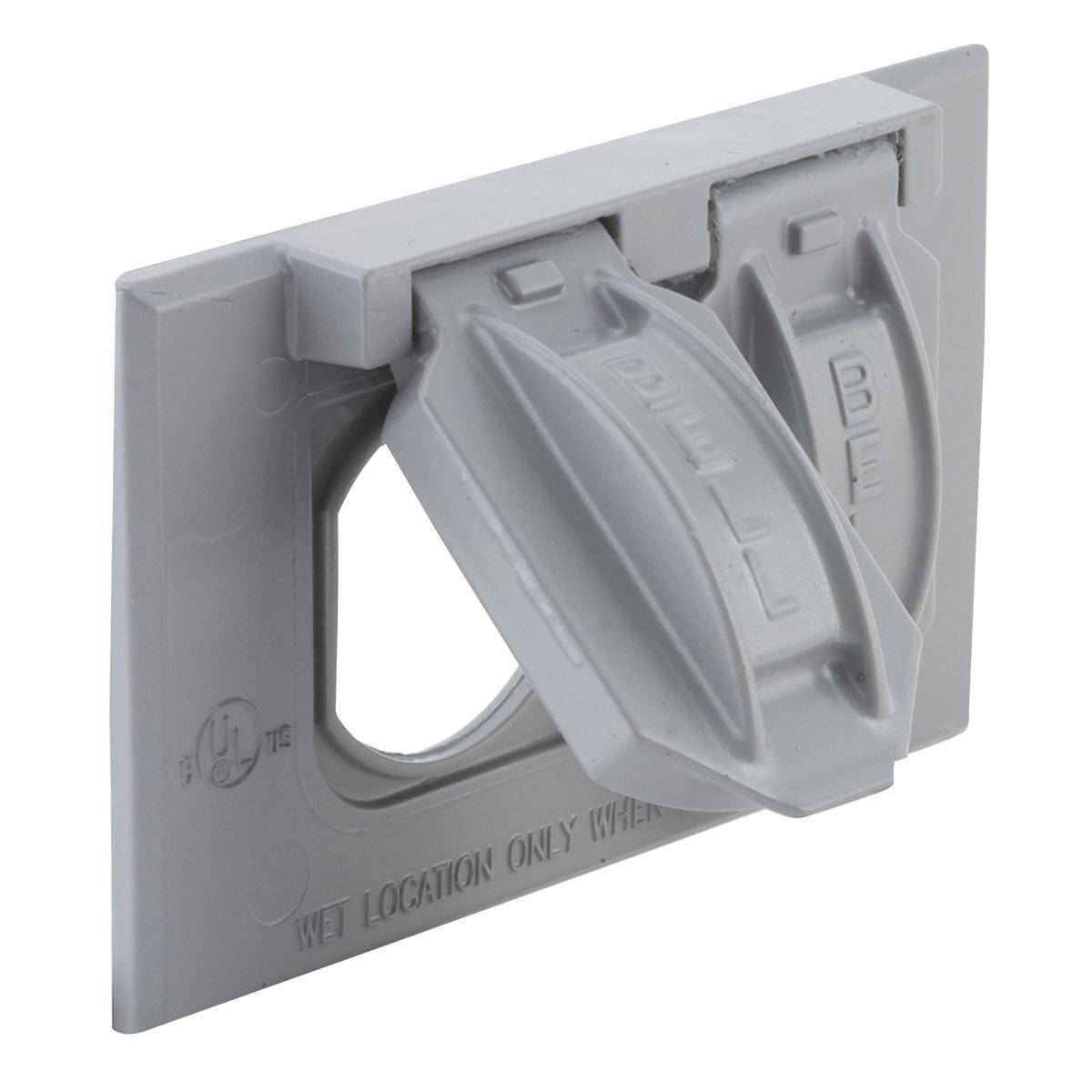

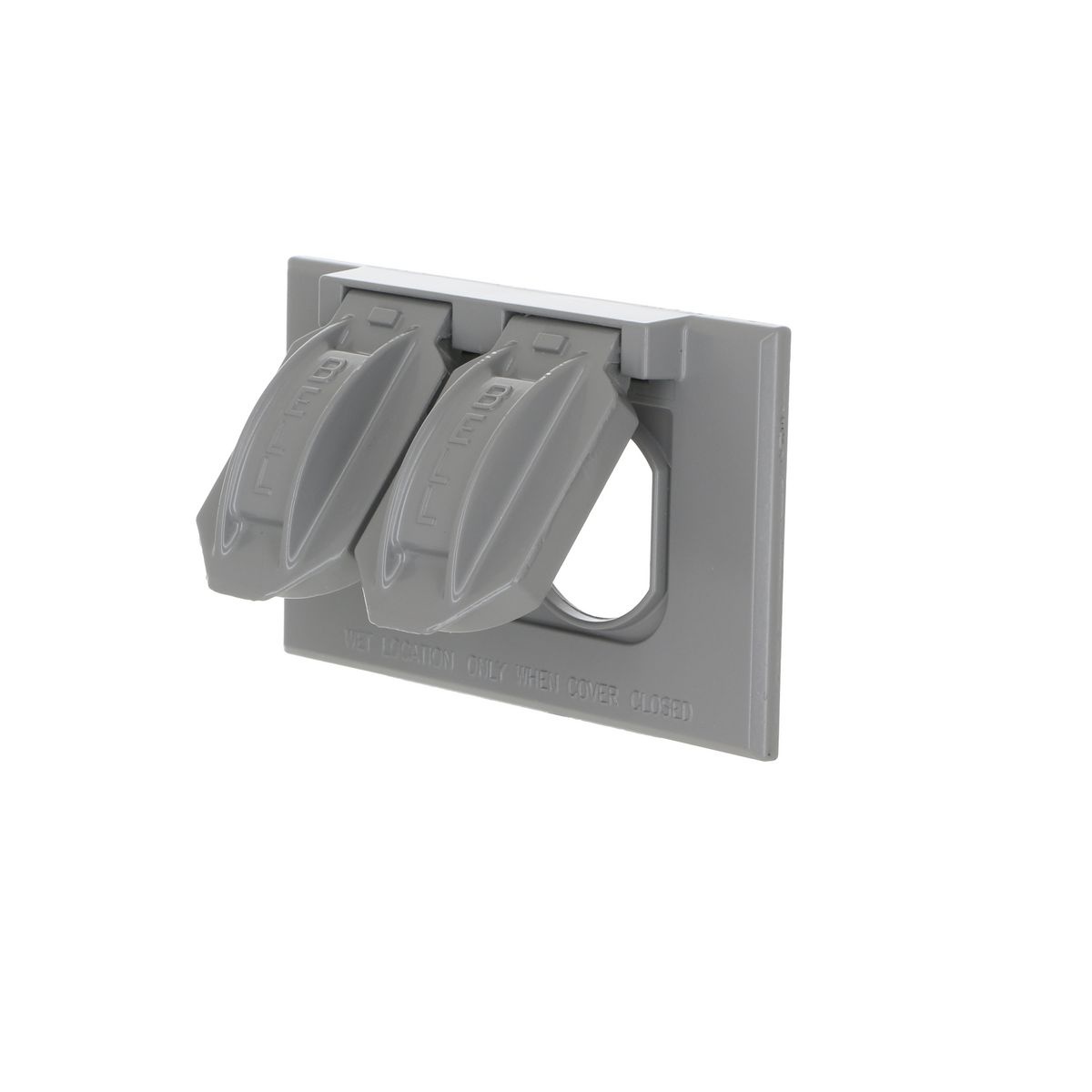

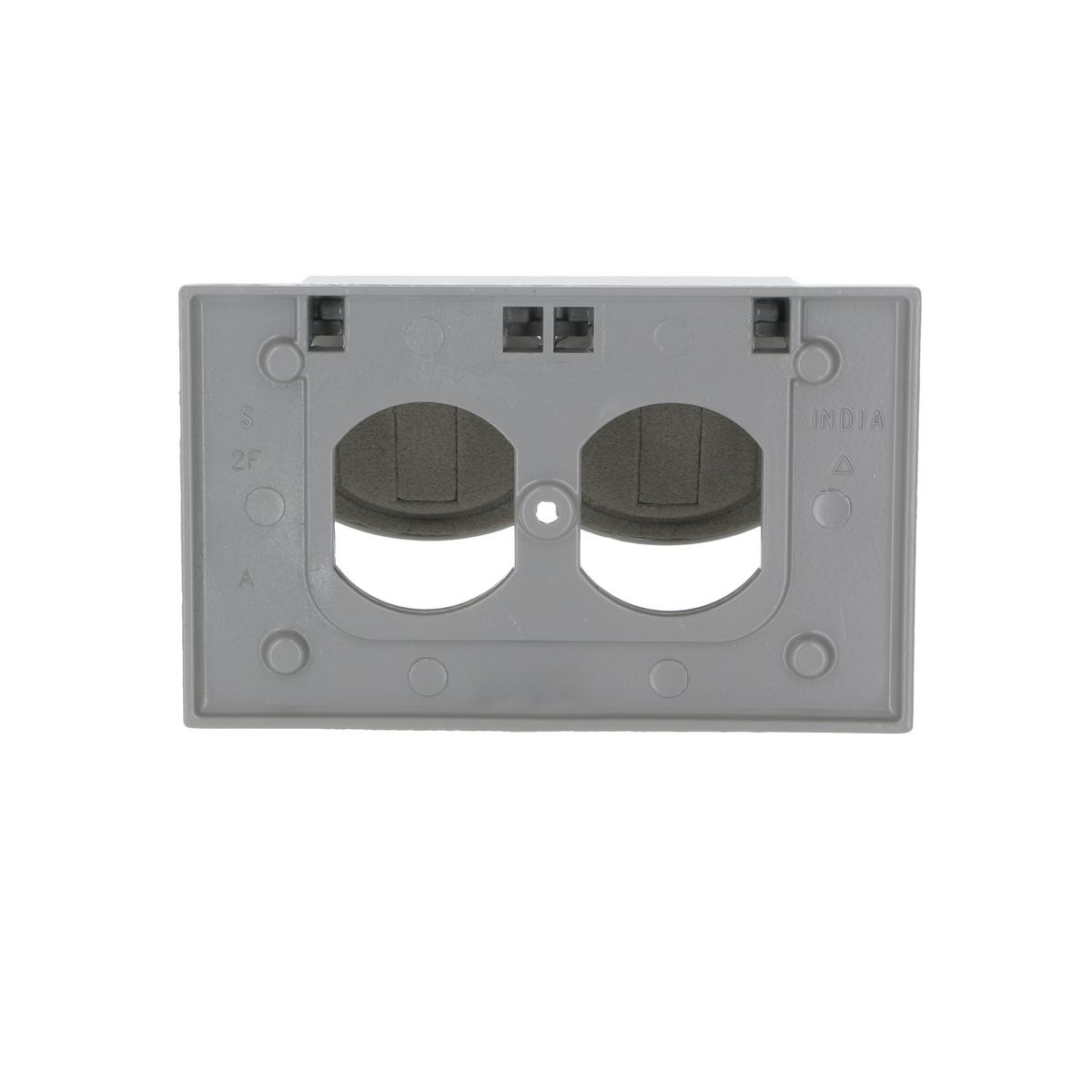

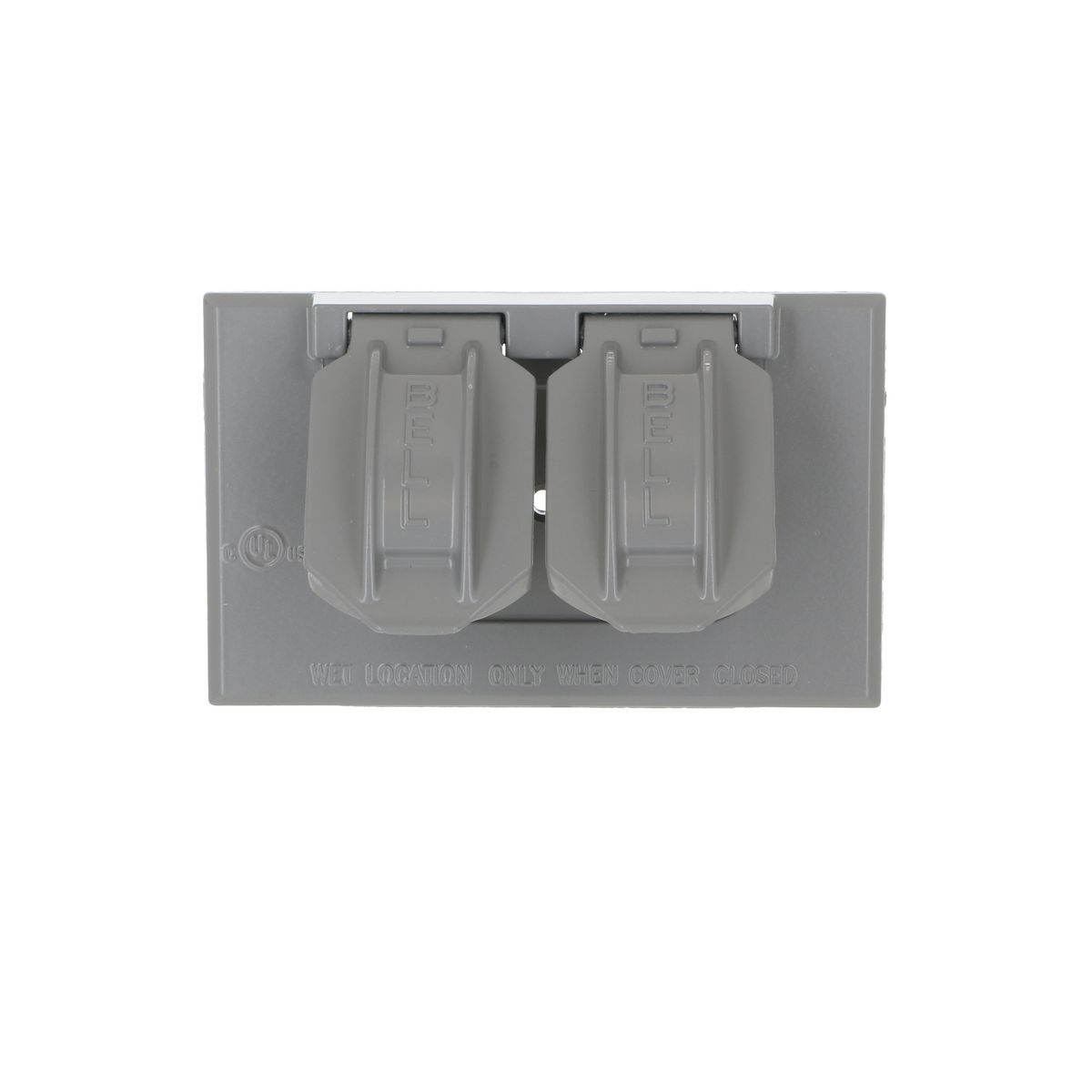

BELL® 5180-0 Weatherproof Outlet Box Cover, 2.813 in L 4.563 in W 1 in D, Duplex Receptacle Cover, Rugged Metal
BELL® 5180-0 Weatherproof Outlet Box Cover, 2.813 in L x 4.563 in W x 1 in D, Duplex Receptacle, Rugged Metal
-
BrandBELL®
-
UPC050169518007
-
Manufacturer Part Number5180-0
-
CountryUSA|Canada
-
FinishPowder Coated
-
MaterialRugged Metal
-
ColorGray
-
TypeWeatherproof
-
Mounting OrientationHorizontal
-
Mounting TypeSurface
-
Cover TypeDuplex Receptacle
-
Width4.563 in
-
Number of Gangs1
-
Depth1 in
-
Length2.813 in
- State-of-the-art powder coat finish provides maximum weatherability and scratch resistance
- Self closing lids assure weatherproof protection when the receptacle is not in use
- Multi-lingual instructions in each package
- Designed for a horizontal outlet
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 2V705 |
-
Alternative Part Number11813504|8703406
-
UNSPSC39131708
-
IDEA Index ID8703406
-
IncludesGasket, Installation Hardware and Multilingual Instructions
-
Package DescriptionEACH
-
Standards/ApprovalscULus/cUL Listed|CSA C22.2 No. 18|NEC 2014 Article 406.9A|NEC Compliant|UL File No. E195978|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
-
Specification Sheet
-
Line Drawing
-
SDS
-
Full Engineering Drawing
