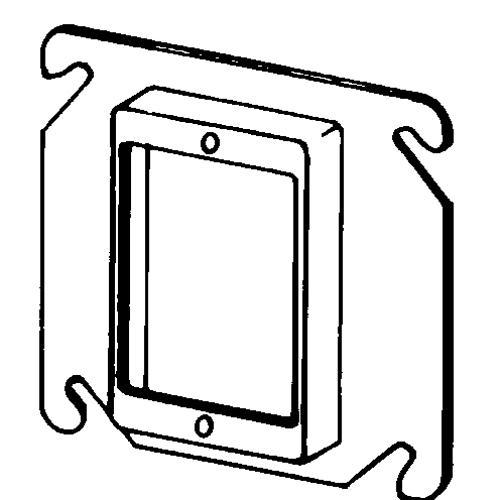

Appleton® ETP™ 8468C Raised Square Box Cover, 4 in L x 4 in W x 5/8 in D, Steel
Appleton® ETP™ 8468C Raised Square Box Cover, 4 in L x 4 in W x 5/8 in D, Steel
-
BrandAppleton®
-
UPC687855776757
-
Manufacturer Part Number8468C
-
CountryUSA
-
Capacity4.5 cu-in
-
FinishGalvanized
-
MaterialSteel
-
TypeRaised
-
Width4 in
-
Number of Gangs1
-
ShapeSquared
-
Depth5/8 in
-
Length4 in
- Boxes with concentric or eccentric knockouts are suitable for bonding without any additional bonding means where used in circuits above or below 250 VAC
- Unless otherwise noted all concentric or eccentric knockouts are 1/2 to 3/4 in combinations
- Single and double gang metallic outlet and switch boxes are acceptable for use in two hr fire rated walls
- Groundskeeper raised ground feature on boss inside box provides one or two #10-32 tapped hole, allowing a 3/8 in long green ground screw to be threaded into box without contacting mounting surface
- Other boxes provided with flat ground tapped hole, except plenum boxes
- Single device
- Plaster rings/mud rings
- Drawn construction
-
Alternative Part Number8994847
-
UNSPSC39121304
-
IDEA Index ID8994847
-
Package DescriptionEACH
-
Standards/ApprovalsARRA Compliant|Buy American Act Compliant|UL 514A File No. E2527|NEMA OS-1
-
Specification Sheet
