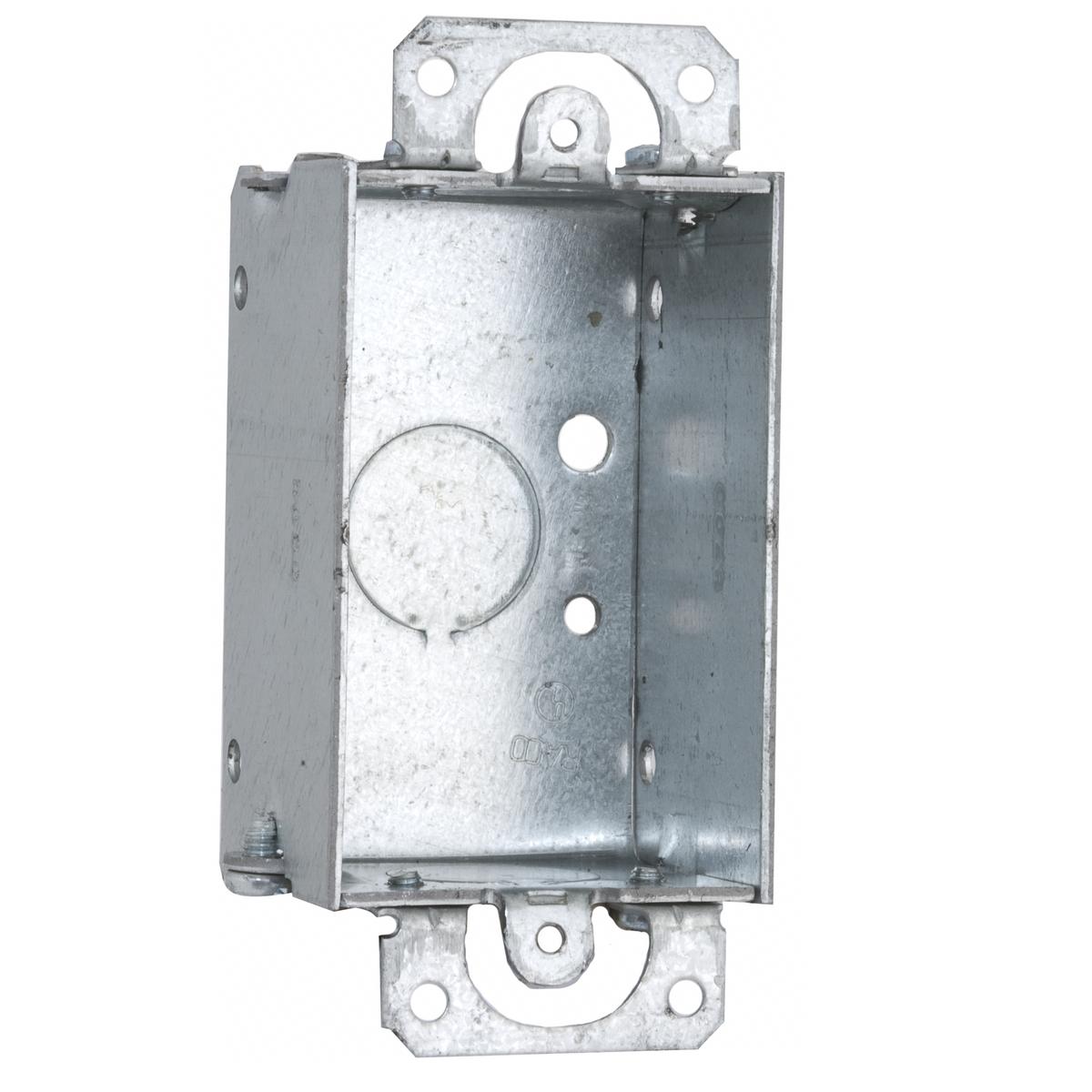

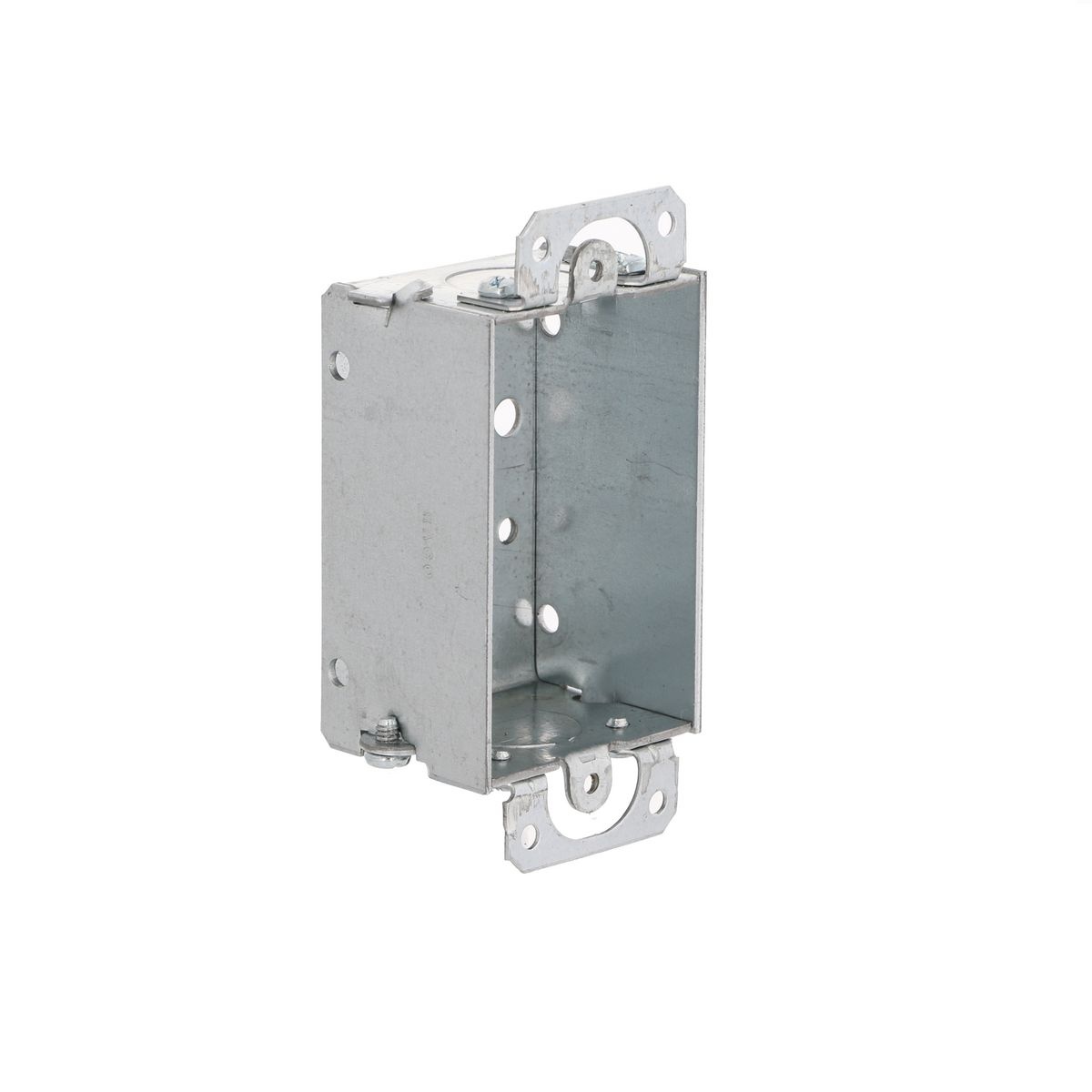

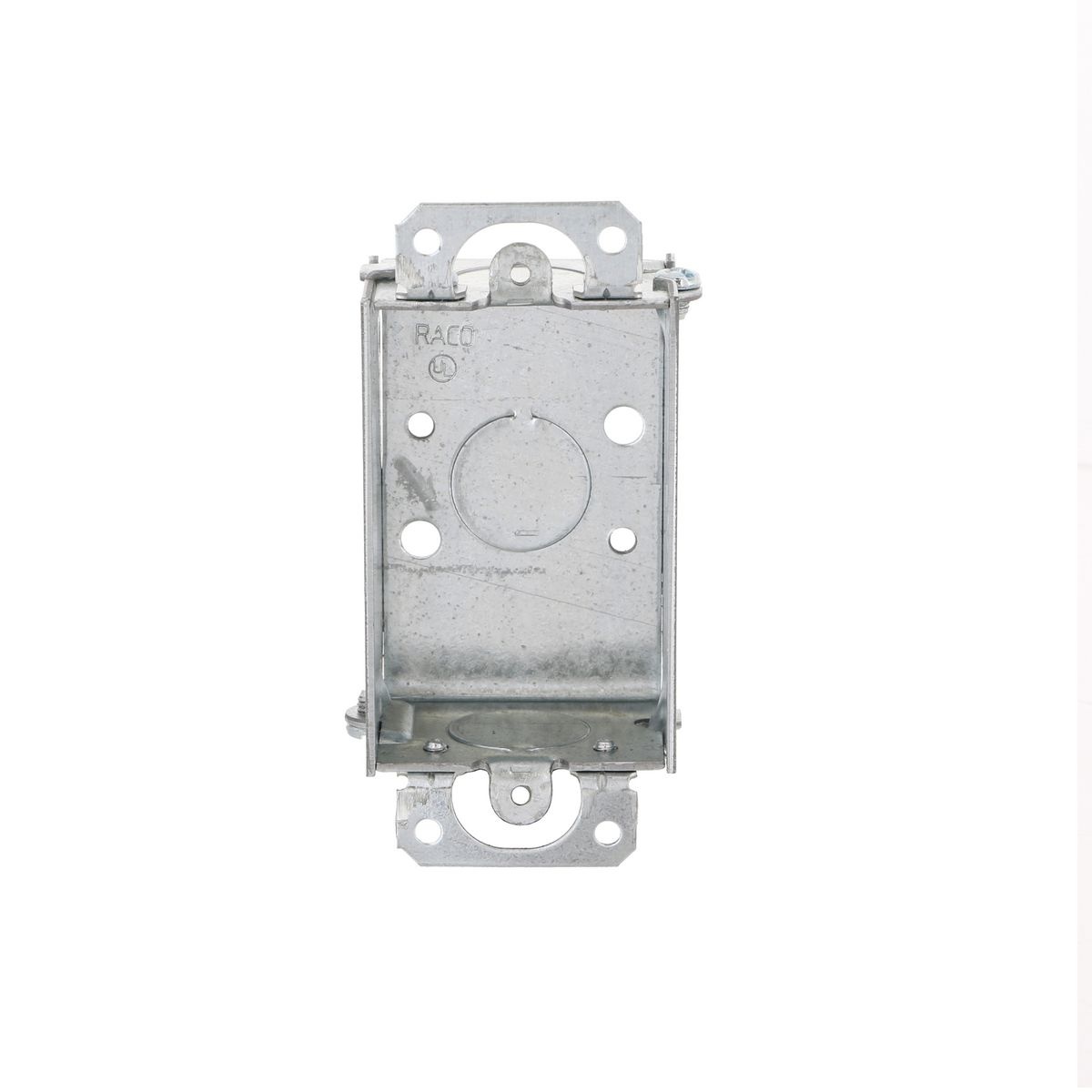

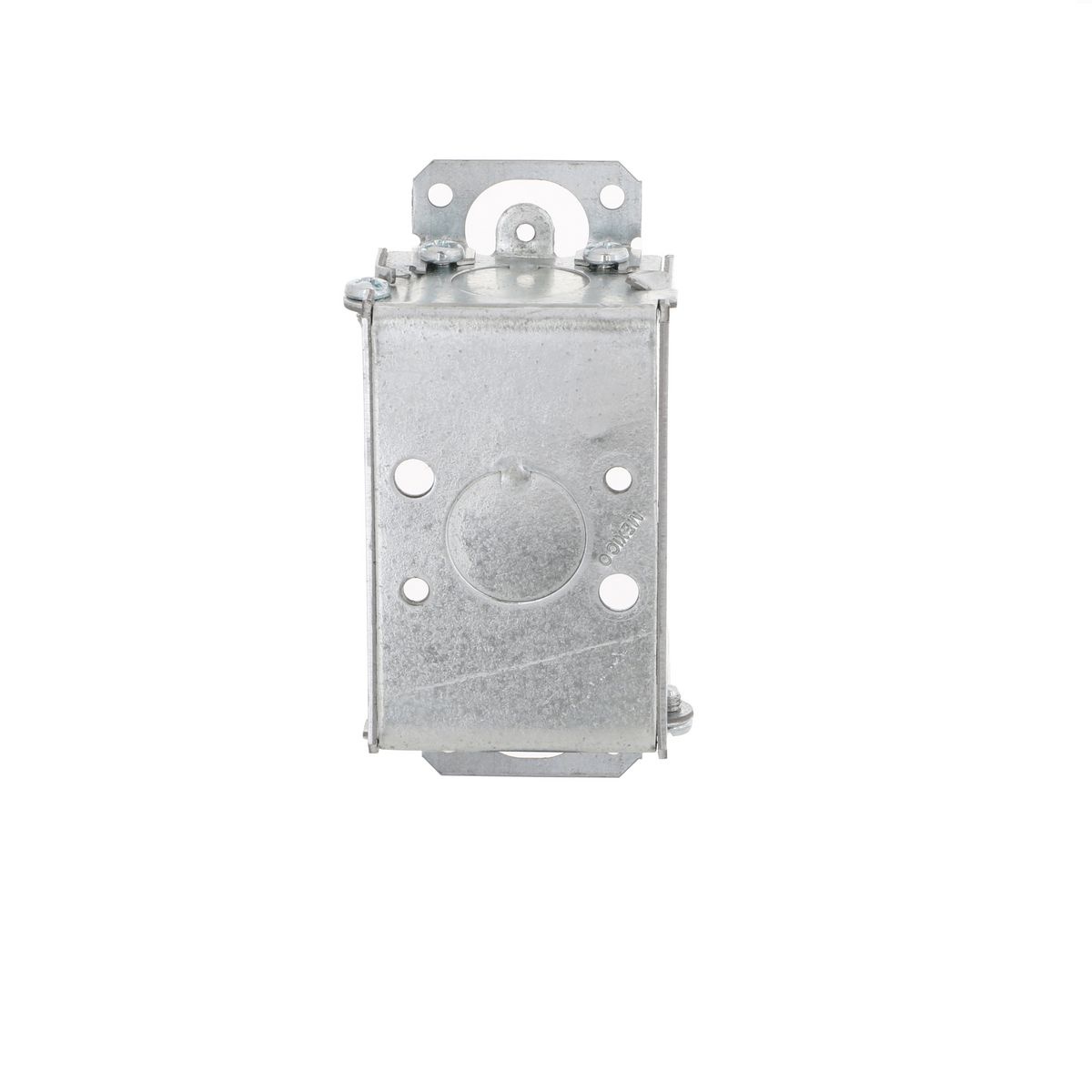

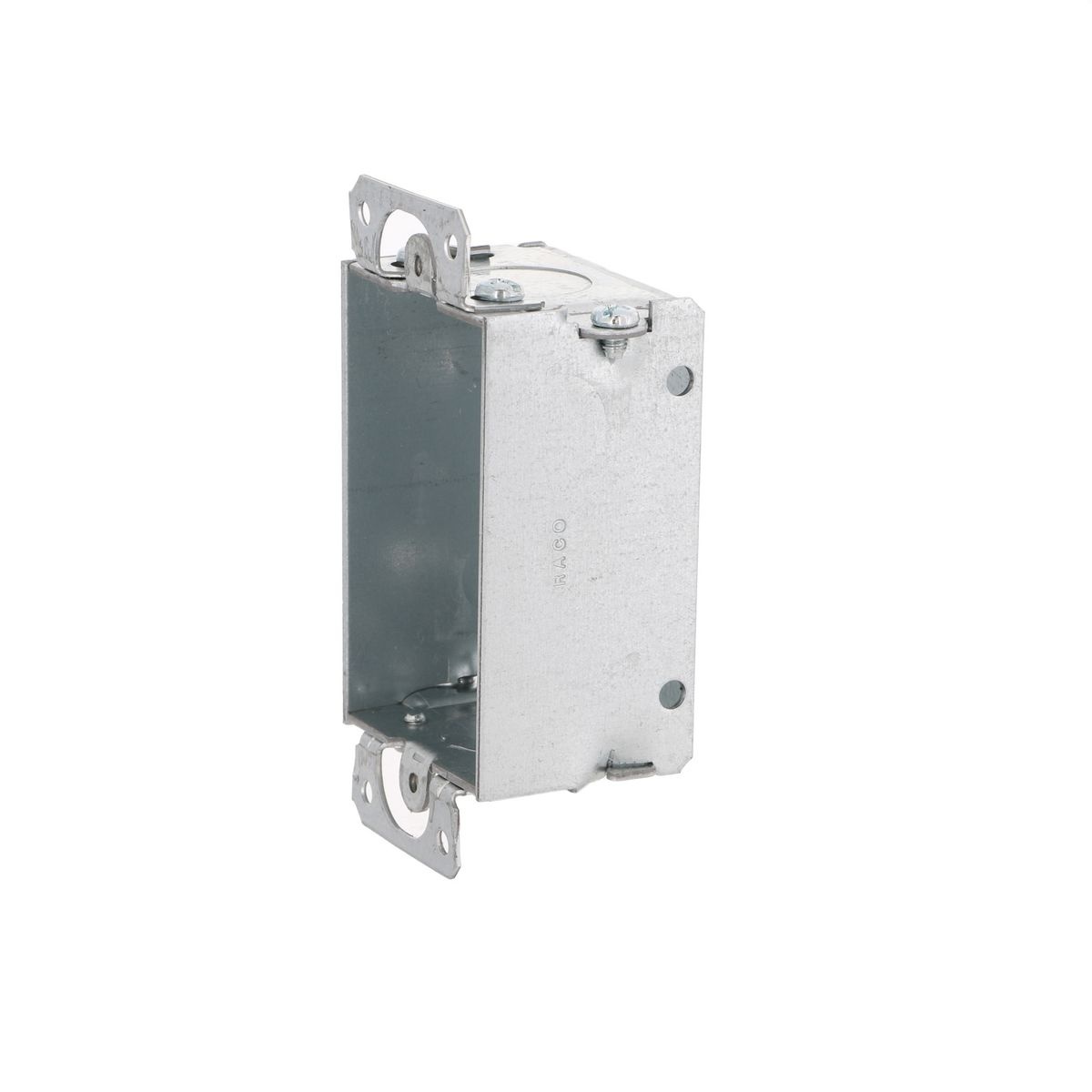

RACO® 400 Gangable Switch Box, Steel, 7.5 cu-in Capacity, 1 Gangs, (1) Outlets, (3) Knockouts, 2 in H x 4.22 in W x 1.5 in D
RACO® 400 Gangable Switch Box, Steel, 7.5 cu-in Capacity, 1 Gangs, 1 Outlets, 3 Knockouts, 2 in H x 4.22 in W x 1.5 in D
-
BrandRACO®
-
UPC050169004005
-
Manufacturer Part Number400
-
CountryUSA|Canada
-
Cable Entry SizeKnockout
-
Capacity7.5 cu-in
-
FinishPre-Galvanized
-
MaterialSteel
-
ColorSilver
-
TypeGangable
-
Mounting TypeEar
-
Number of Gangs1
-
ShapeRectangle
-
Number of Knockouts3
-
Number of Outlets1
-
Dimensions2 in H x 4.22 in W x 1.5 in D
-
Knockout Size1/2 in
- Gangable switch boxes offer the option of constructing a box to hold two or more devices
- With proper fitting can be used for conduit, NMSC, armored, metal clad, flex cable
- Acceptable for use in 2 hr fire rated walls
- Adjustable plaster ears allow box to be used in old work applications
- (1) 1/2 in bottom end knockouts
-
Alternative Part Number11819670|8688705
-
UNSPSC39121303
-
IDEA Index ID8688705
-
IncludesPlaster Ears
-
Package DescriptionEACH
-
Standards/ApprovalsUL File No. E195978
-
Warranty1 Year
-
SDS
-
Specification Sheet
-
Full Engineering Drawing
