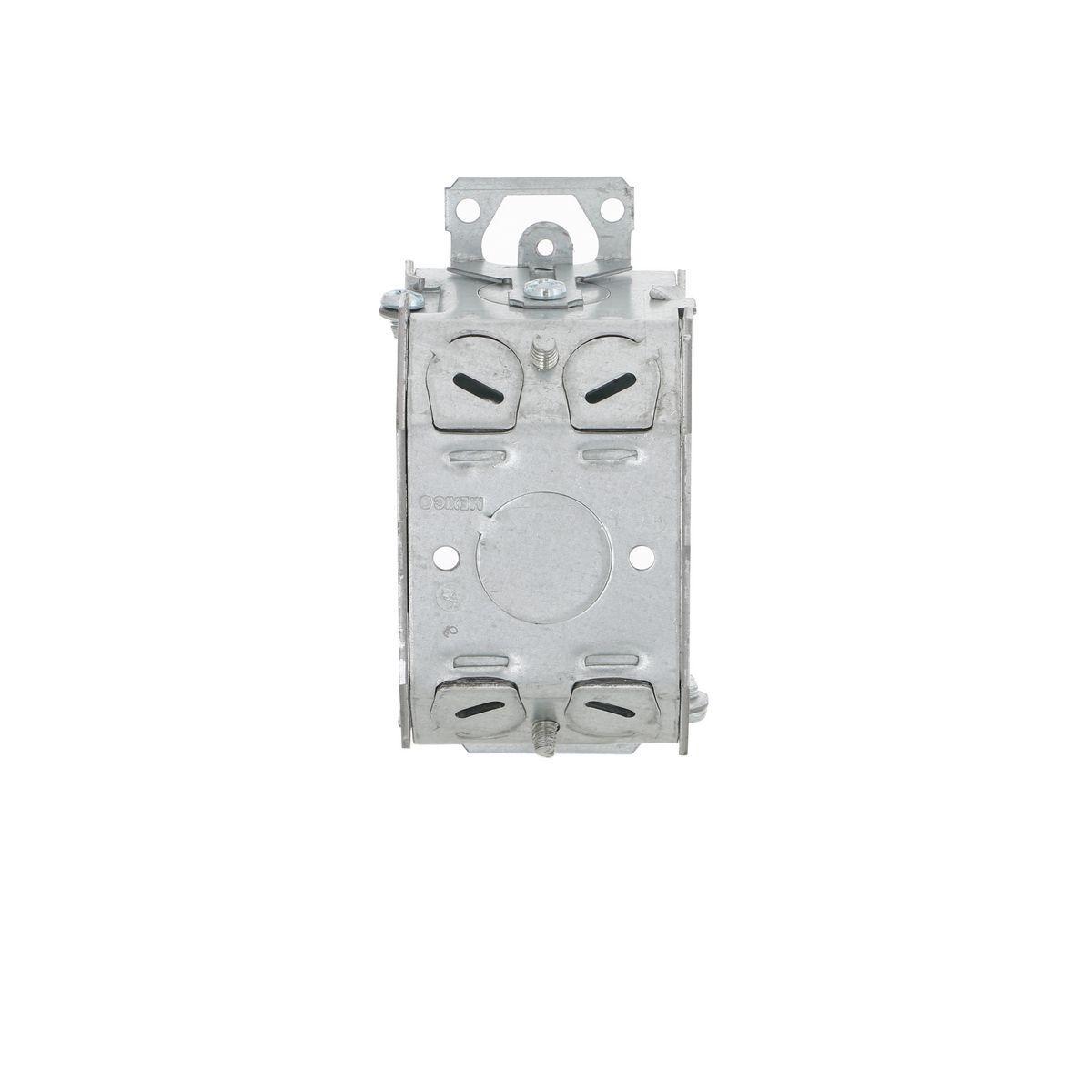

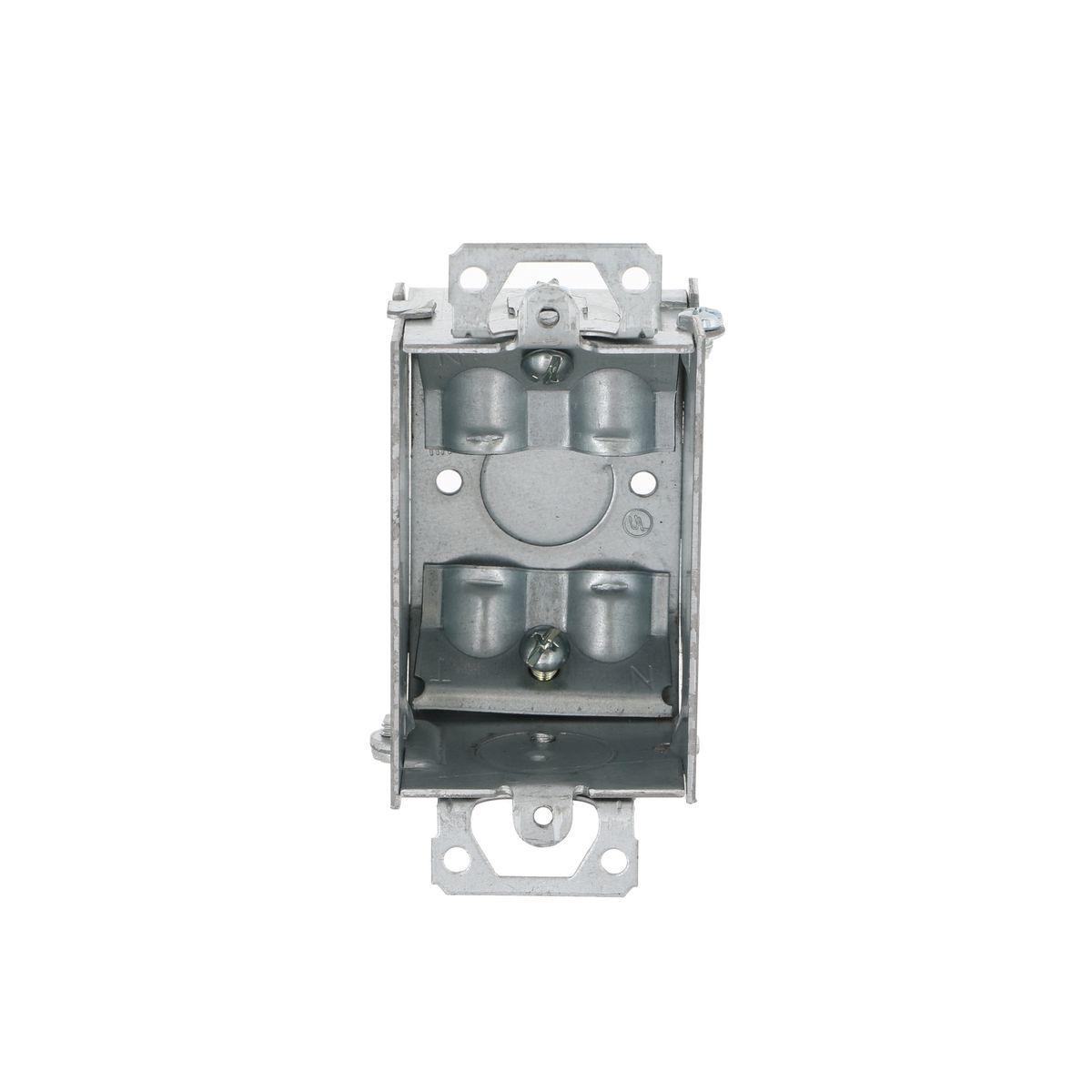

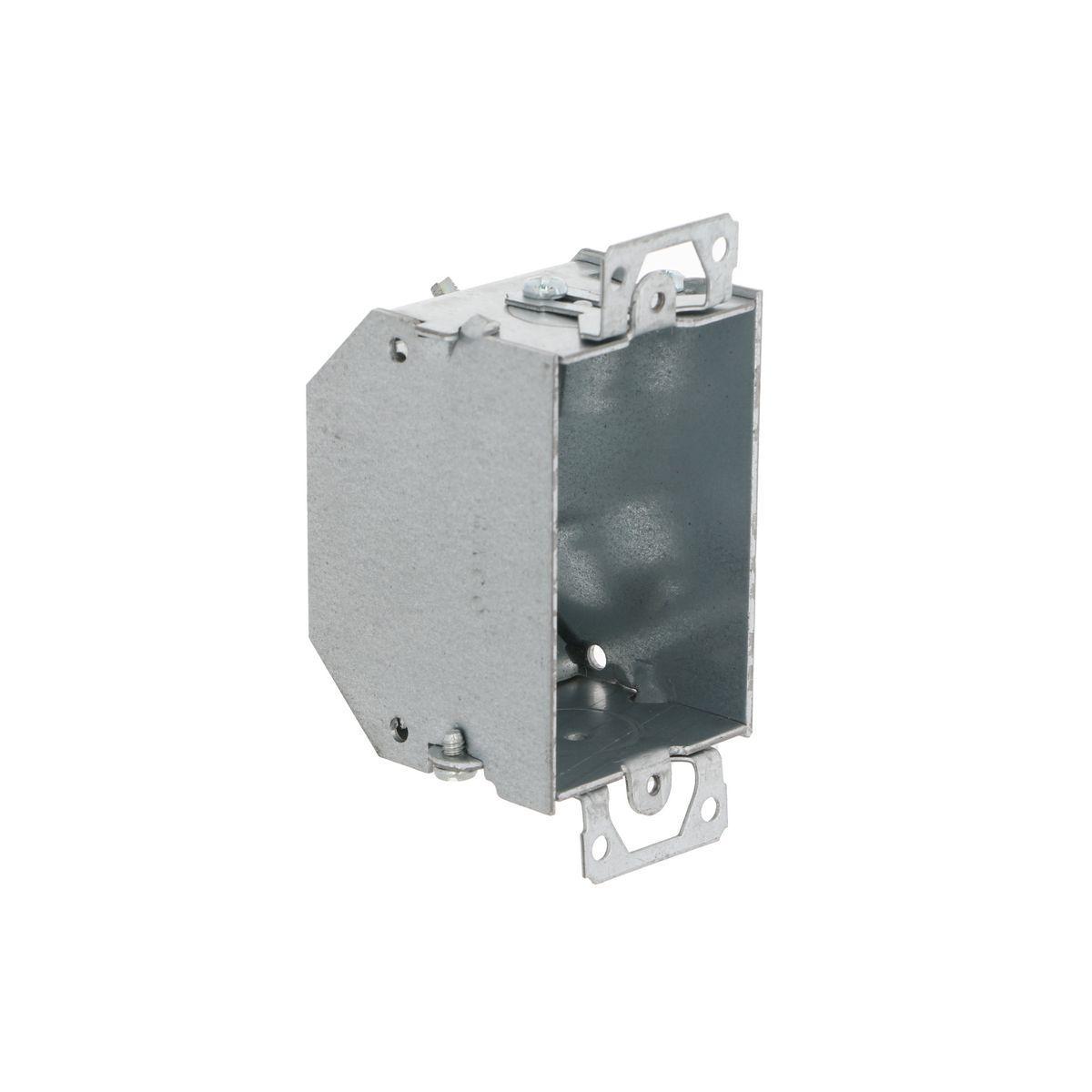

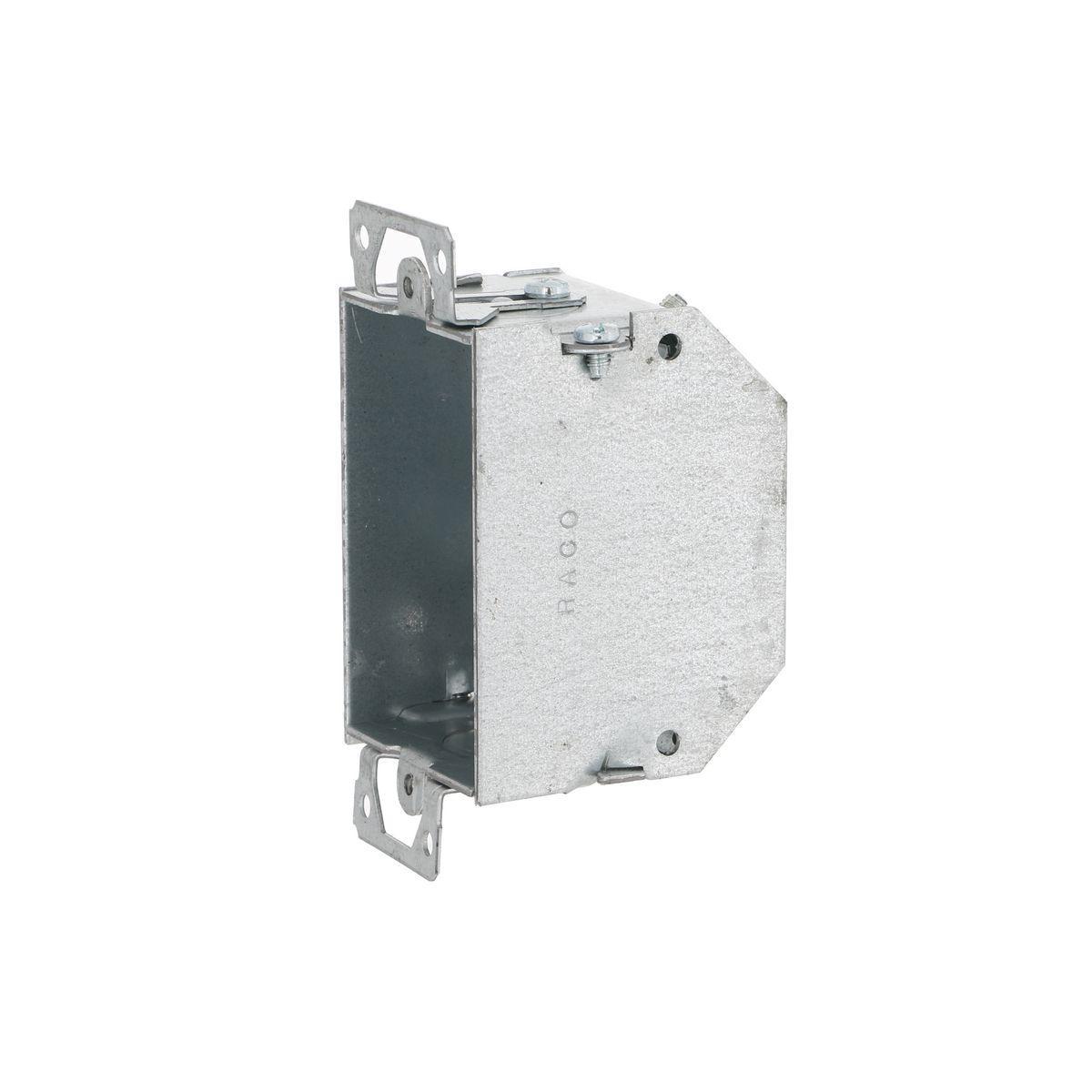

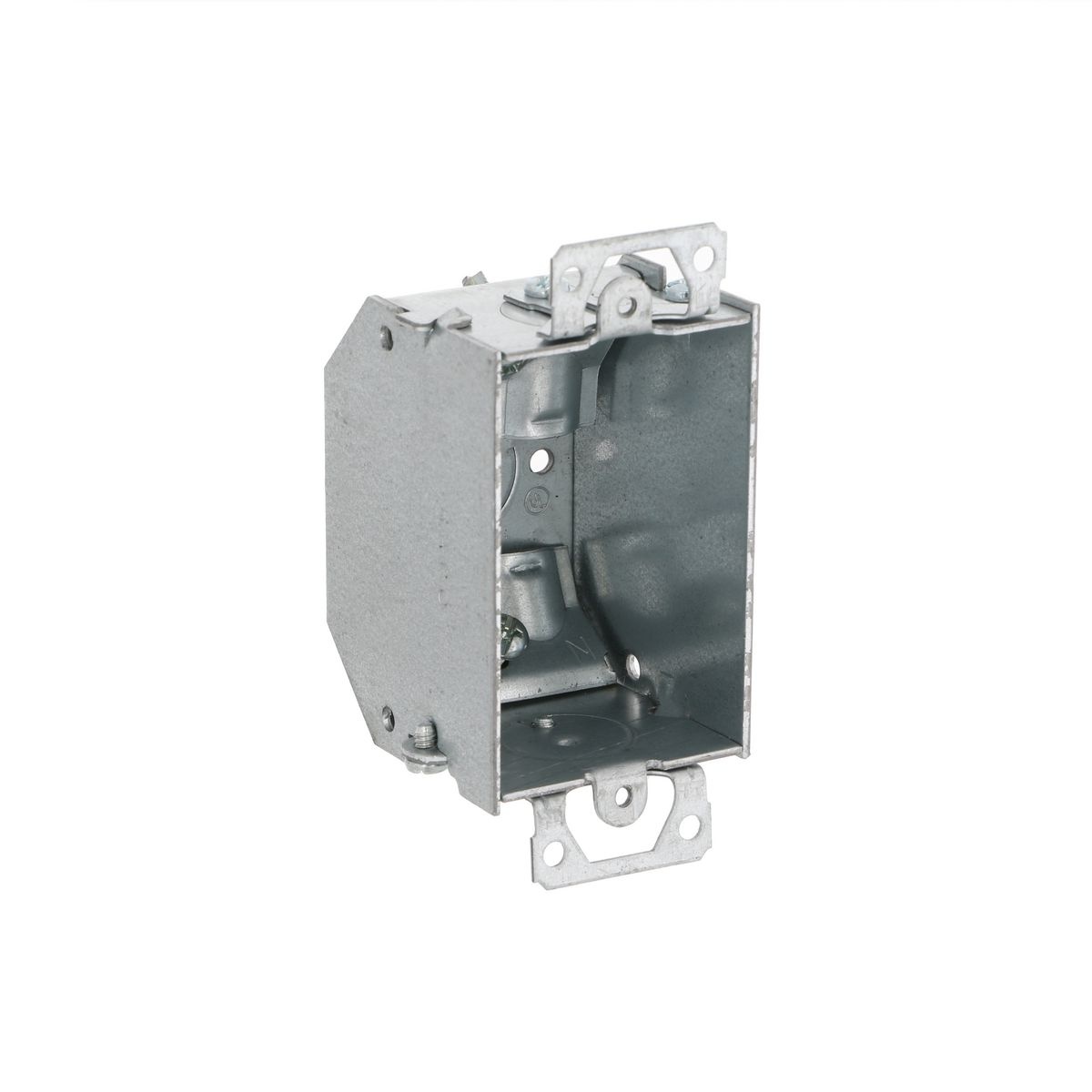

RACO® 471 Gangable Switch Box, Steel, 10.5 cu-in Capacity, 1 Gangs, 1 Outlets, 5 Knockouts, 2 in H x 4.22 in W x 2.25 in D
RACO® 471 Gangable Switch Box, Steel, 10.5 cu-in Capacity, 1 Gangs, 1 Outlets, 5 Knockouts, 2 in H x 4.22 in W x 2.25 in D
-
BrandRACO®
-
UPC050169004715
-
Manufacturer Part Number471
-
CountryUSA
-
Capacity10.5 cu-in
-
FinishPre-Galvanized
-
MaterialSteel
-
ColorSilver
-
TypeGangable
-
Mounting TypeThreaded
-
Number of Gangs1
-
ShapeRectangle
-
Number of Knockouts5
-
Number of Outlets1
-
Dimensions2 in H x 4.22 in W x 2.25 in D
-
Knockout Size1/2 in
- Gangable switch boxes offer the option of constructing a box to hold two or more devices
- Beveled corner boxes are designed to prevent the clamp screws from protruding into back wall
- L clamps provided for non-metallic sheathed cable (NMSC)
- Acceptable for use in 2 hr fire rated walls
- Nail-on screw-on mounting
- L clamps provided for non-metallic sheathed cable (NMSC)
- Acceptable for use in 2 hr fire rated walls
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 1XC35 |
-
Alternative Part Number8688735
-
UNSPSC39121303
-
IDEA Index ID8688735
-
IncludesScrews, Plaster Ears and NMSC Clamps
-
Package DescriptionEACH
-
Standards/ApprovalsUL File No. E195978
-
Warranty1 Year
-
SDS
-
Warranty Information
-
Specification Sheet
-
Line Drawing
