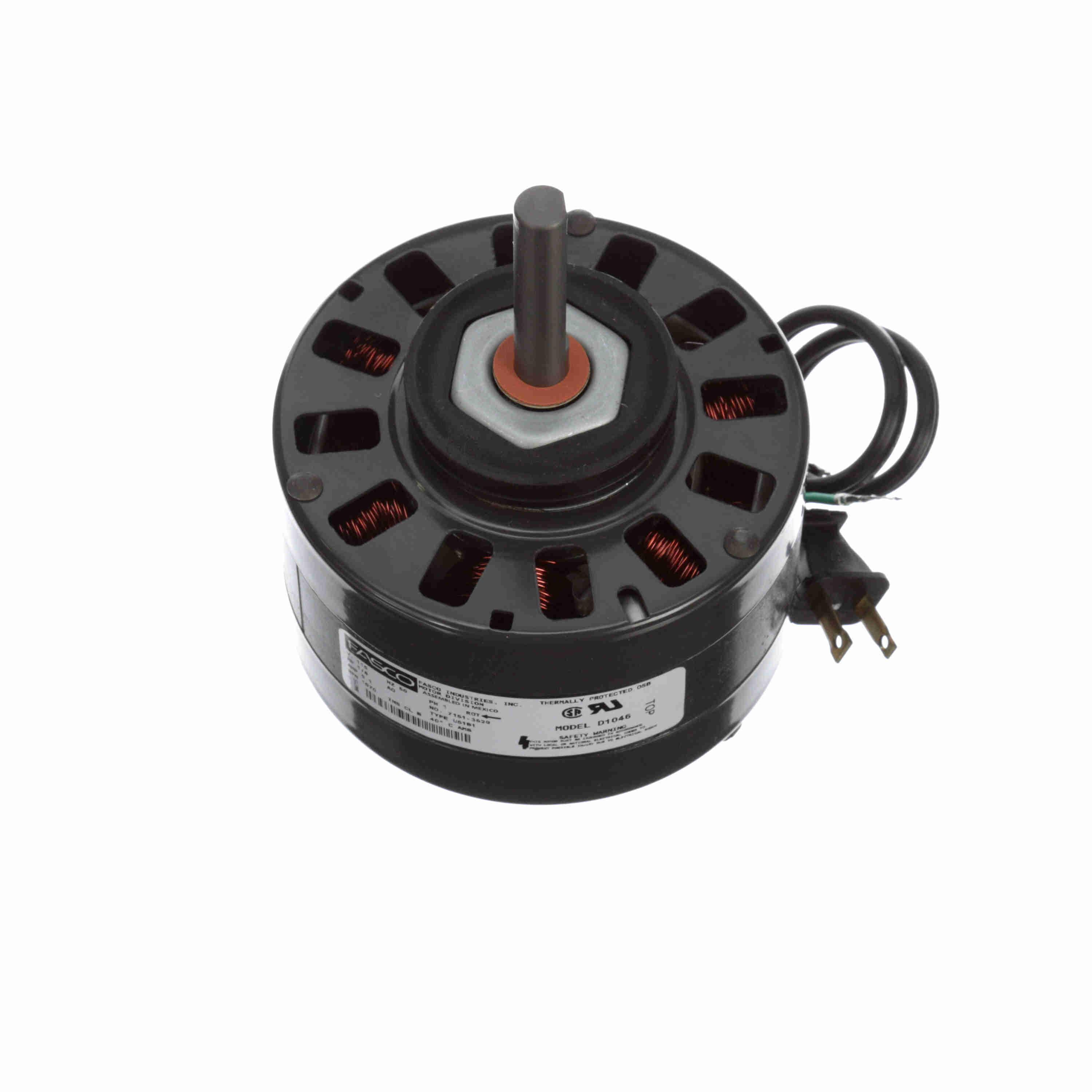

Fasco® D1046 6-Pole HVAC/R Motor, OAO Enclosure, 1/8 hp, 115 V, 60 Hz, 1 Phase, 42 Frame, 1070 rpm Speed, Resilient Ring Mount
Fasco® D1046 6-Pole HVAC/R Motor, Open Air Over Enclosure, 1/8 hp, 115 V, 60 Hz, 1 Phase, 42 Frame, 1070 rpm Speed, Resilient Ring Mount
-
BrandFasco®
-
UPC815585027713
-
Manufacturer Part NumberD1046
-
CountryUSA
-
Temperature Rating40 deg C
-
Frame42
-
Frequency Rating60 Hz
-
Type6-Pole
-
Mounting TypeResilient Ring
-
RotationCWSE
-
Voltage Rating115 V
-
Amperage Rating5.1 A
-
Application TypeOEM Replacement Motor
-
Service Factor1
-
Horsepower1/8 hp
-
Shaft Size1/2 in Dia x 3 in L
-
Dimensions5 in Dia x 6.71 in L
-
Bearing TypeSleeve
-
Insulation ClassClass B
-
Special FeaturesShaded Pole Motor
-
Speed1070 rpm
-
Enclosure TypeOAO
-
Phase1
- Open shaft end and lead end, enclosed shell, air over
- 1/2 in diameter shaft with flat
- Resilient mounting ring lead end and opposite lead end
- Thermally protected
- 16 in leads with molded plug
-
UNSPSC26101105
-
Standards/ApprovalsCSA Certified|UL Recognized
-
Specification Sheet
