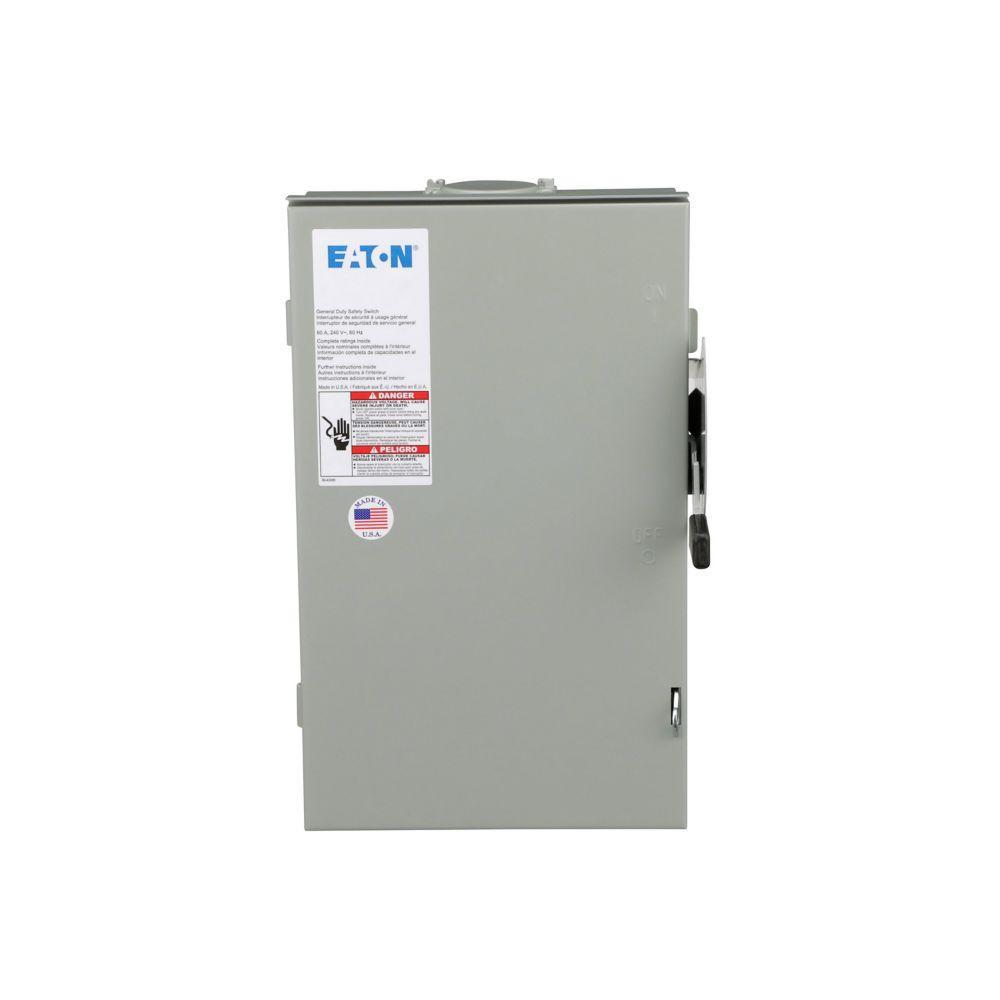

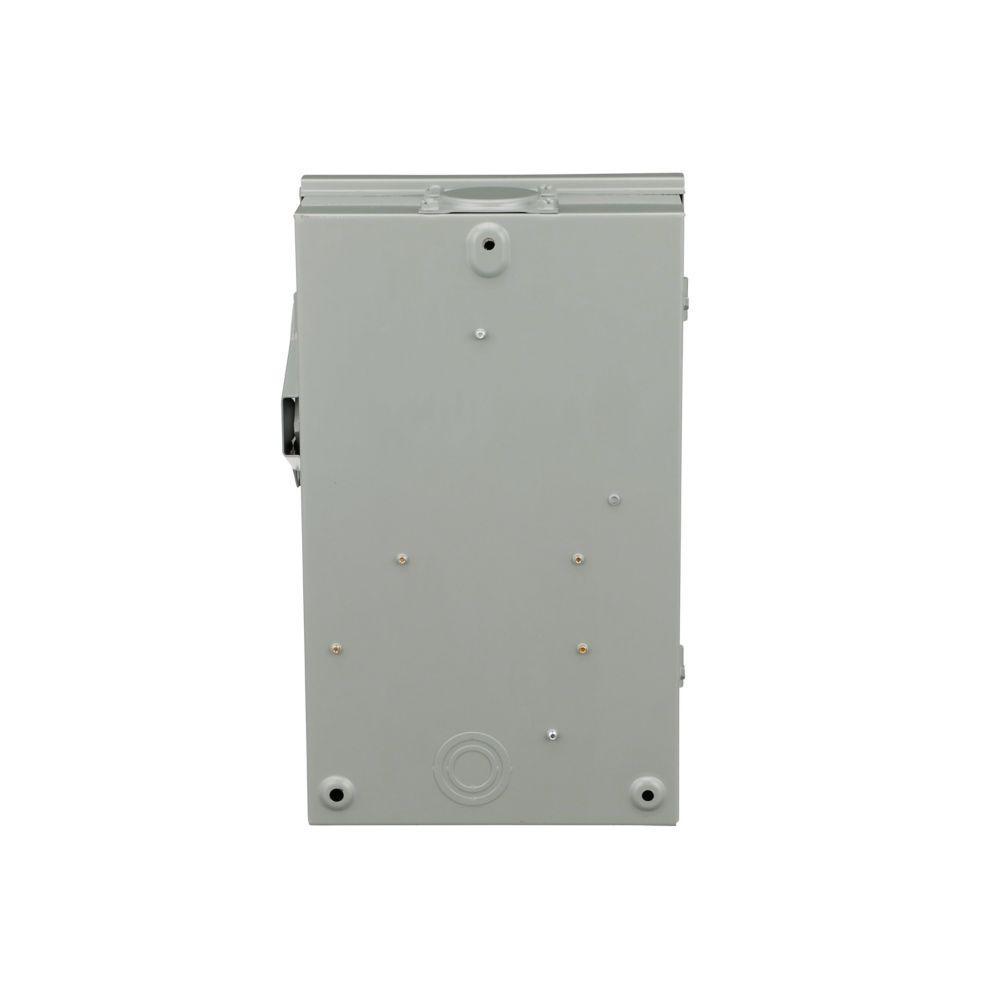

EATON DG222NRB DG Series Cartridge Fusible General Duty Safety Switch, 240 V AC, 60 A, 3 to 10 hp, 7-1/2 to 15 hp, DPST Contact, 2 Poles
General duty safety switches are used in residential and commercial applications. They are suitable for light duty motor circuits and service entrance applications. Fusible (plug or cartidge) and non-fusible switches are available.
-
BrandEATON
-
UPC782113144221
-
Manufacturer Part NumberDG222NRB
-
CountryUSA
-
FinishGalvanized/Painted
-
MaterialSteel
-
TypeCartridge Fusible General Duty
-
Contact FormDPST
-
Mounting TypeSurface
-
Voltage Rating240 V AC
-
Amperage Rating60 A
-
SeriesDG Series
-
Horsepower3 to 10 hp, 7-1/2 to 15 hp
-
Number of Poles2
-
Dimensions6.41 in L x 8.4 in W x 7 in H
-
Number of Wires3
-
Enclosure TypeNEMA 3R
-
Phase1/3
- Ample wire bending space provides for easier installation

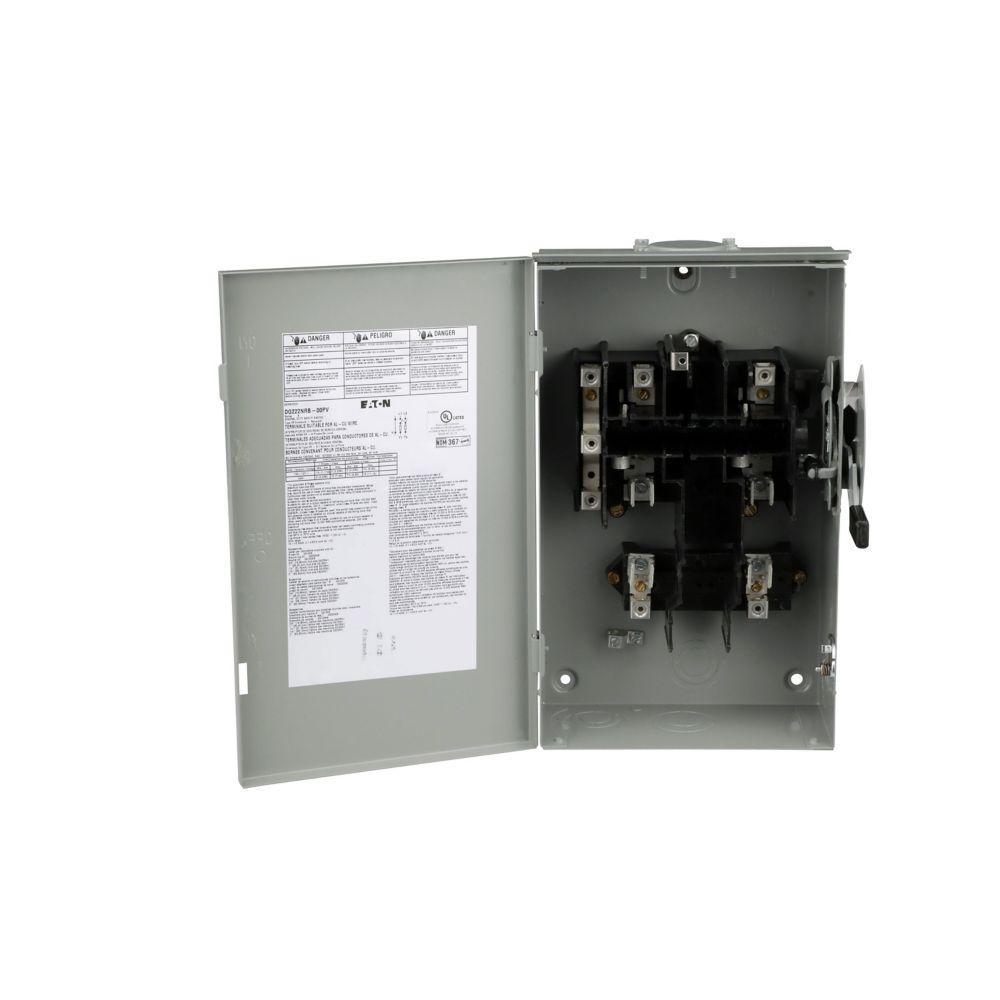

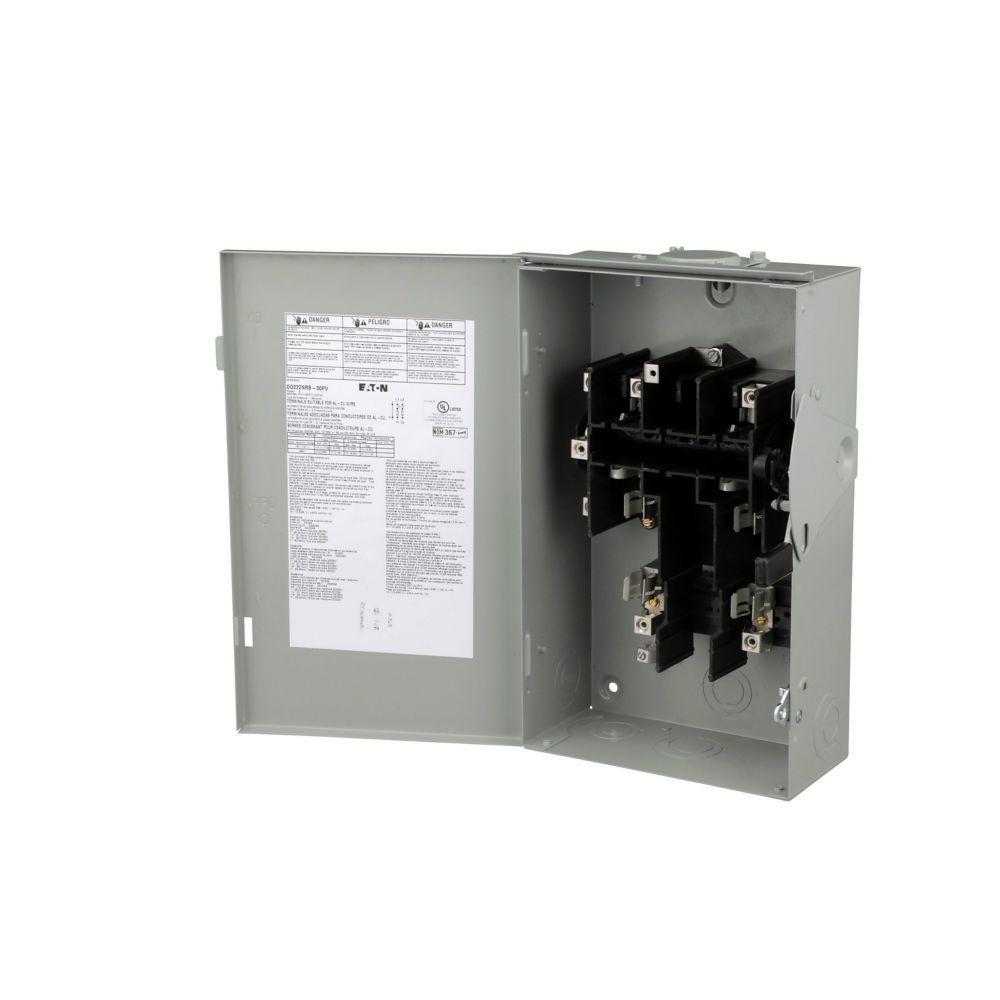

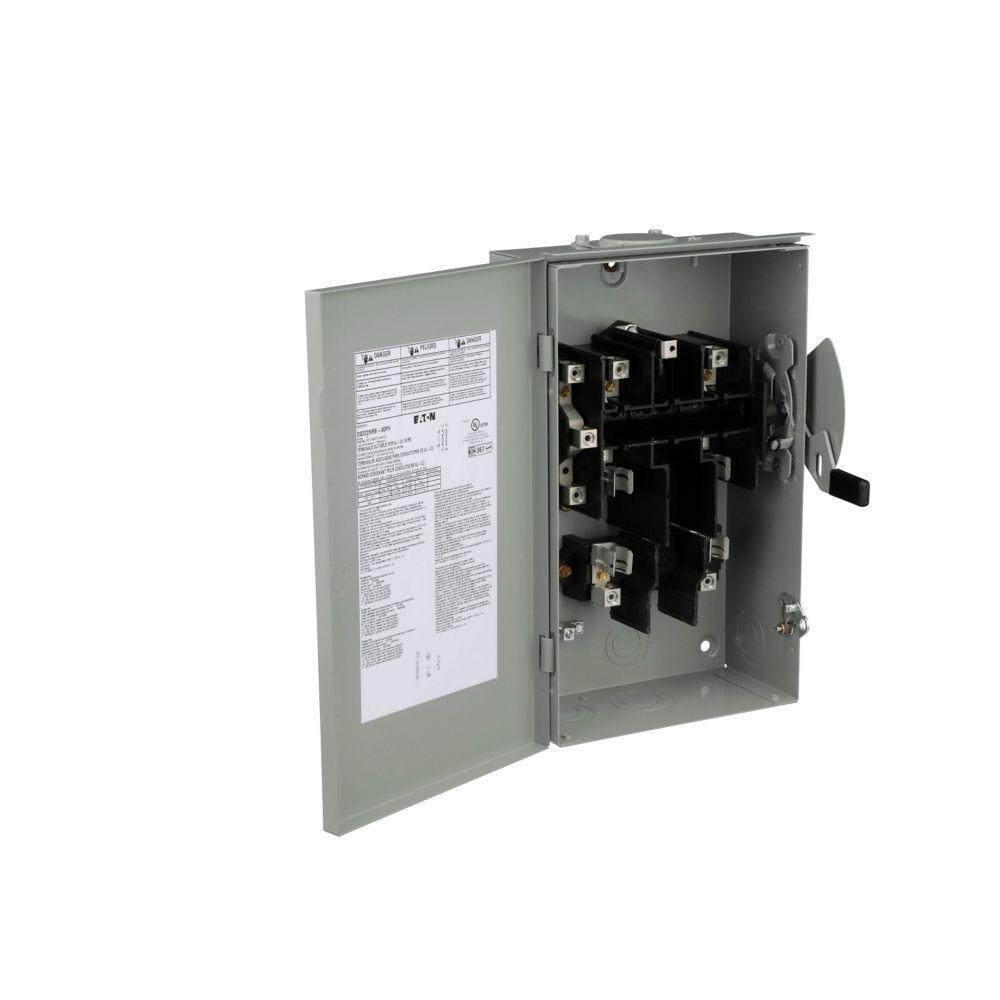

- Visible double-break quick make, Quick-break rotary blade mechanism

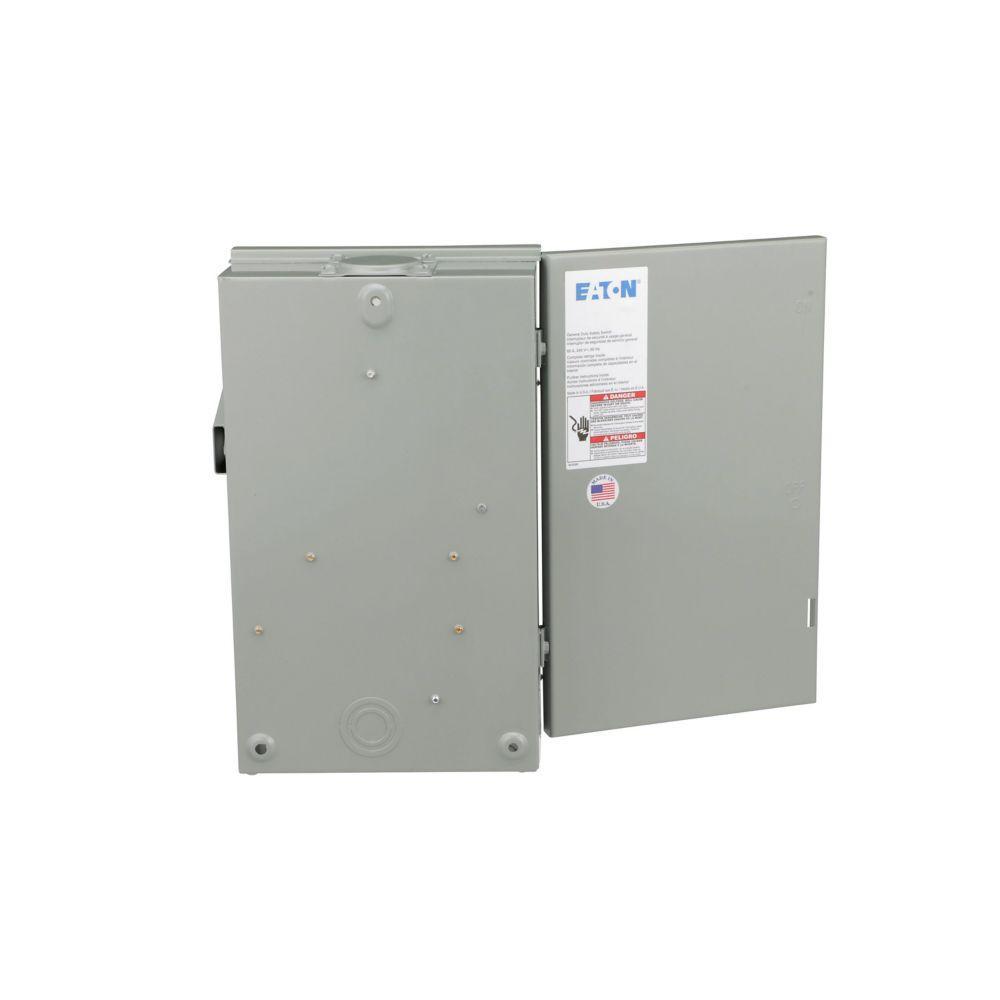

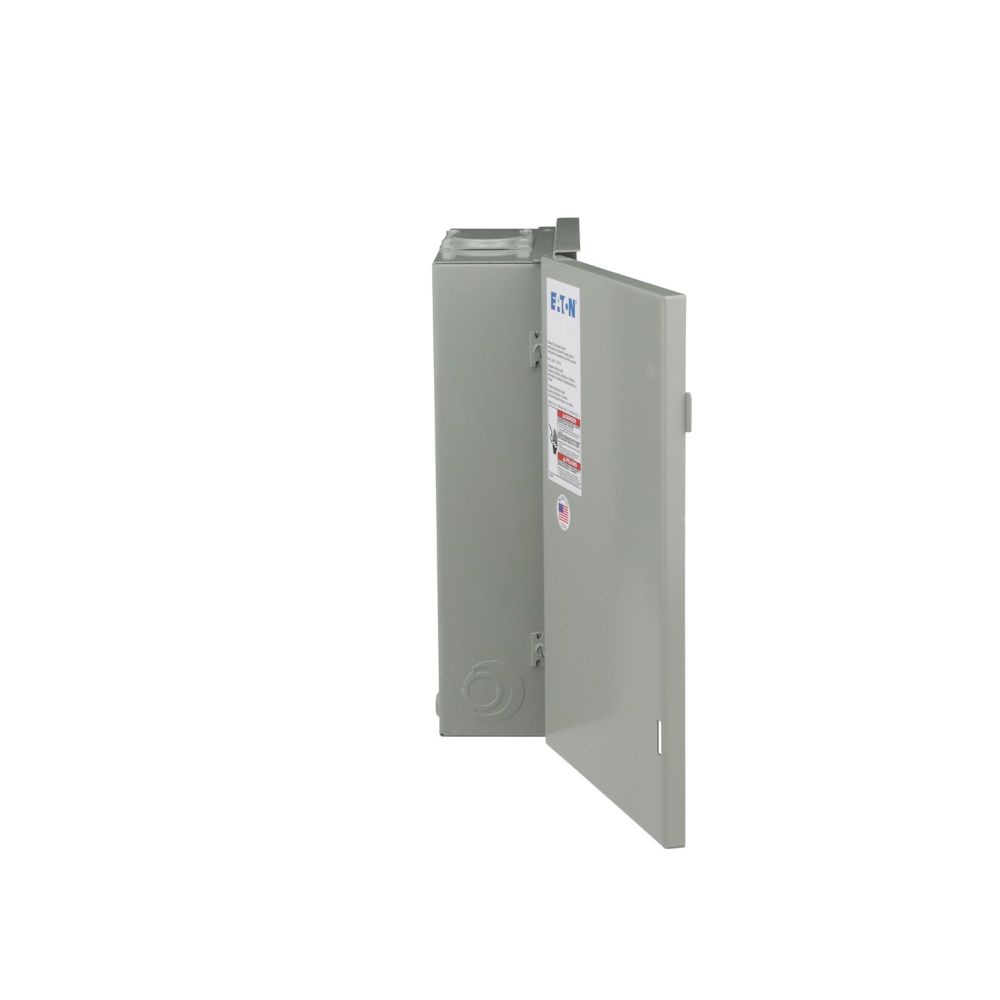

- Side opening door on all enclosures

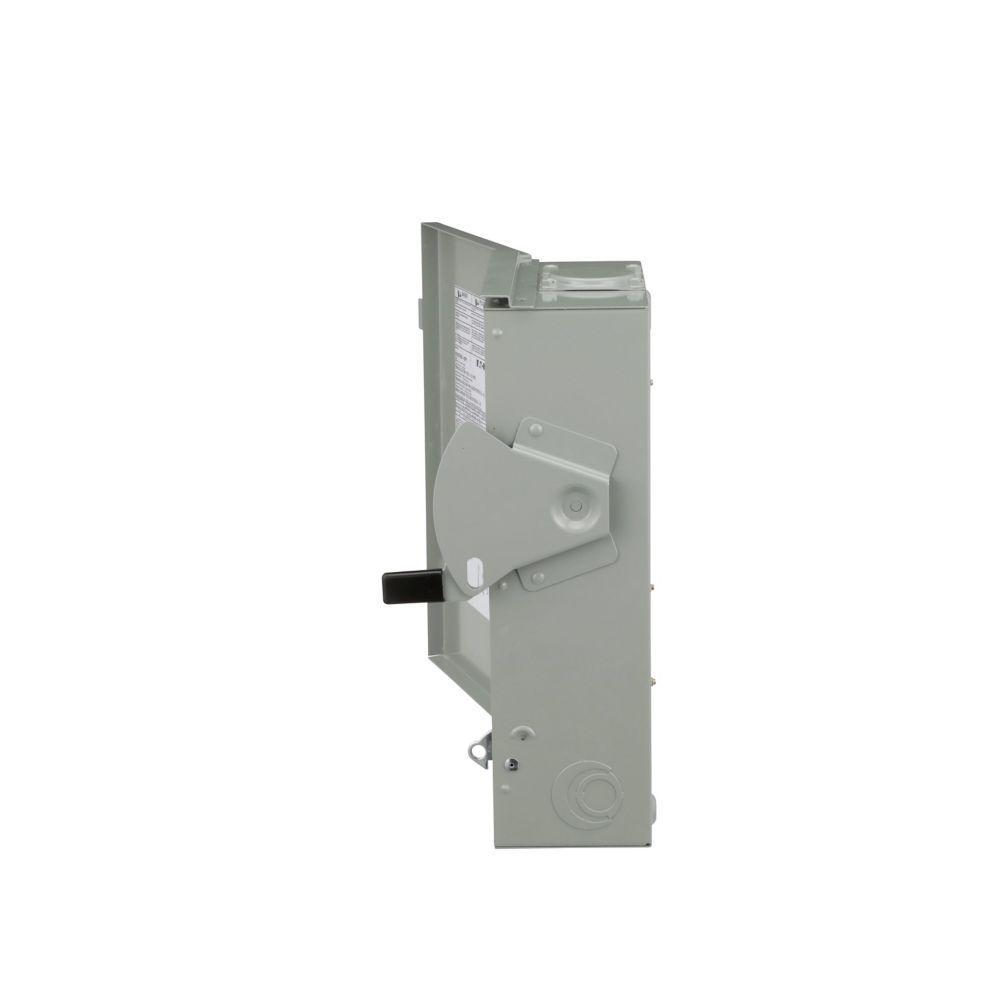

- Mechanically interlocked cover to prevent easy access when the switch is in the ON position
- With class R fuses, switches may be used on systems capable of delivering 100000 A rms symmetrical
- Clearly visible and accessible neutral where applicable
- Visible ON/OFF indications
- Tangential knockouts on 30 to 60 A designs
- Ample wiring space
- Double padlocking capability on 30 to 100 A
- Triple padlocking capability on 200 to 600 A
- Additional door locking capability
- Tri-lingual nameplates
- Design for series B general duty 30 to 100 A
-
Alternative Part Number7339054
-
UNSPSC39122205
-
IDEA Index ID7339054
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed,NEC 230.62 (C) Compliant Barrier
-
Specification Sheet
-
Owners/User Manual
