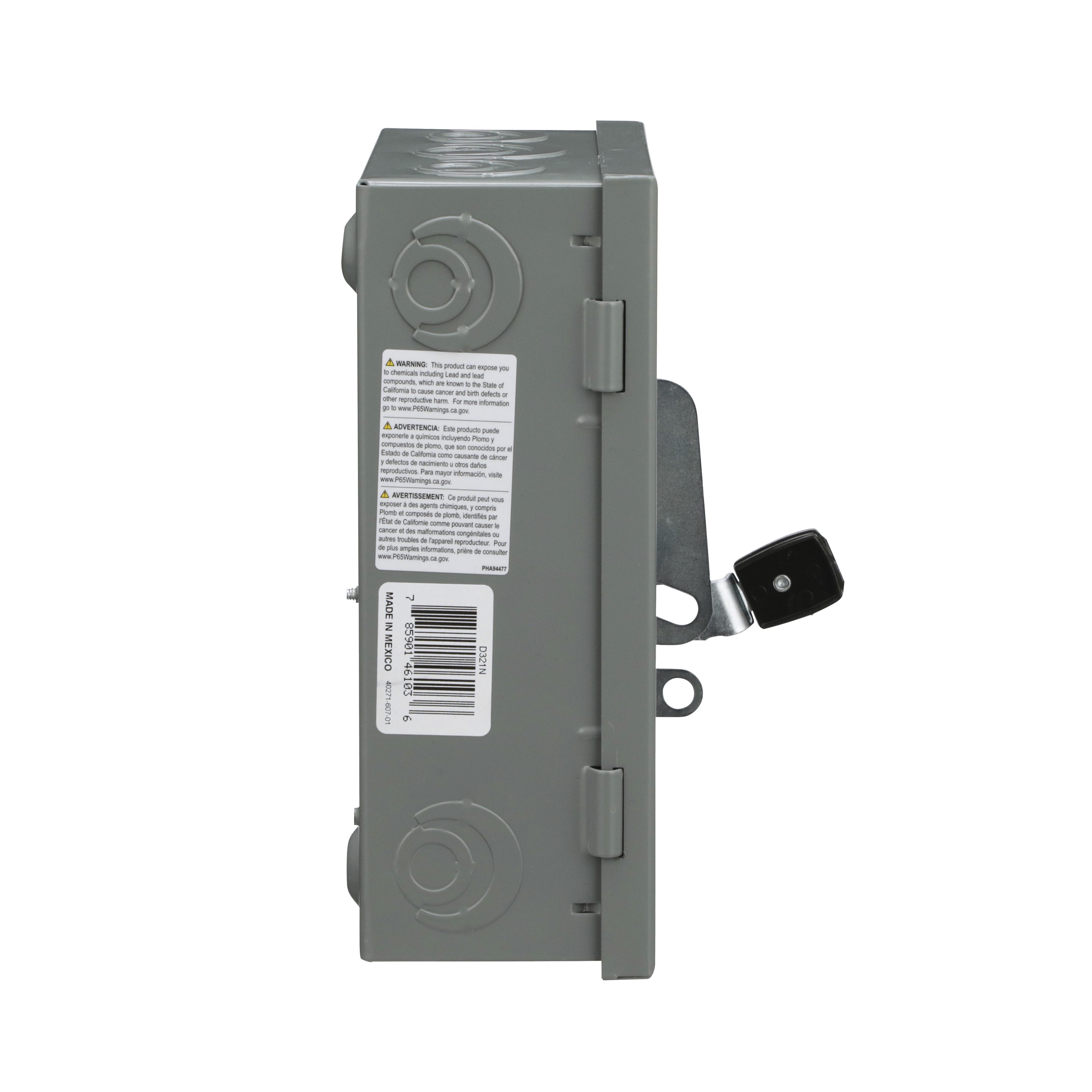

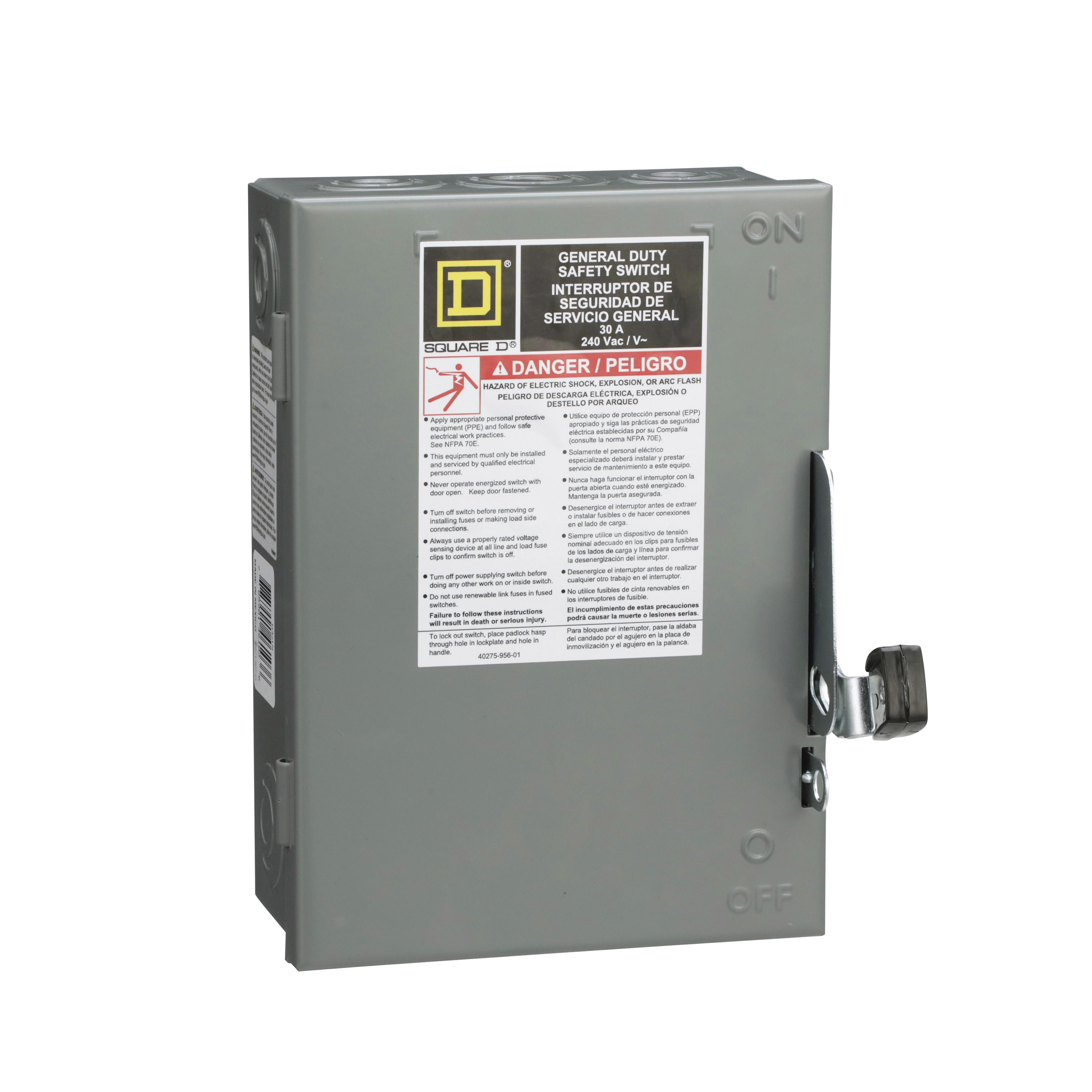

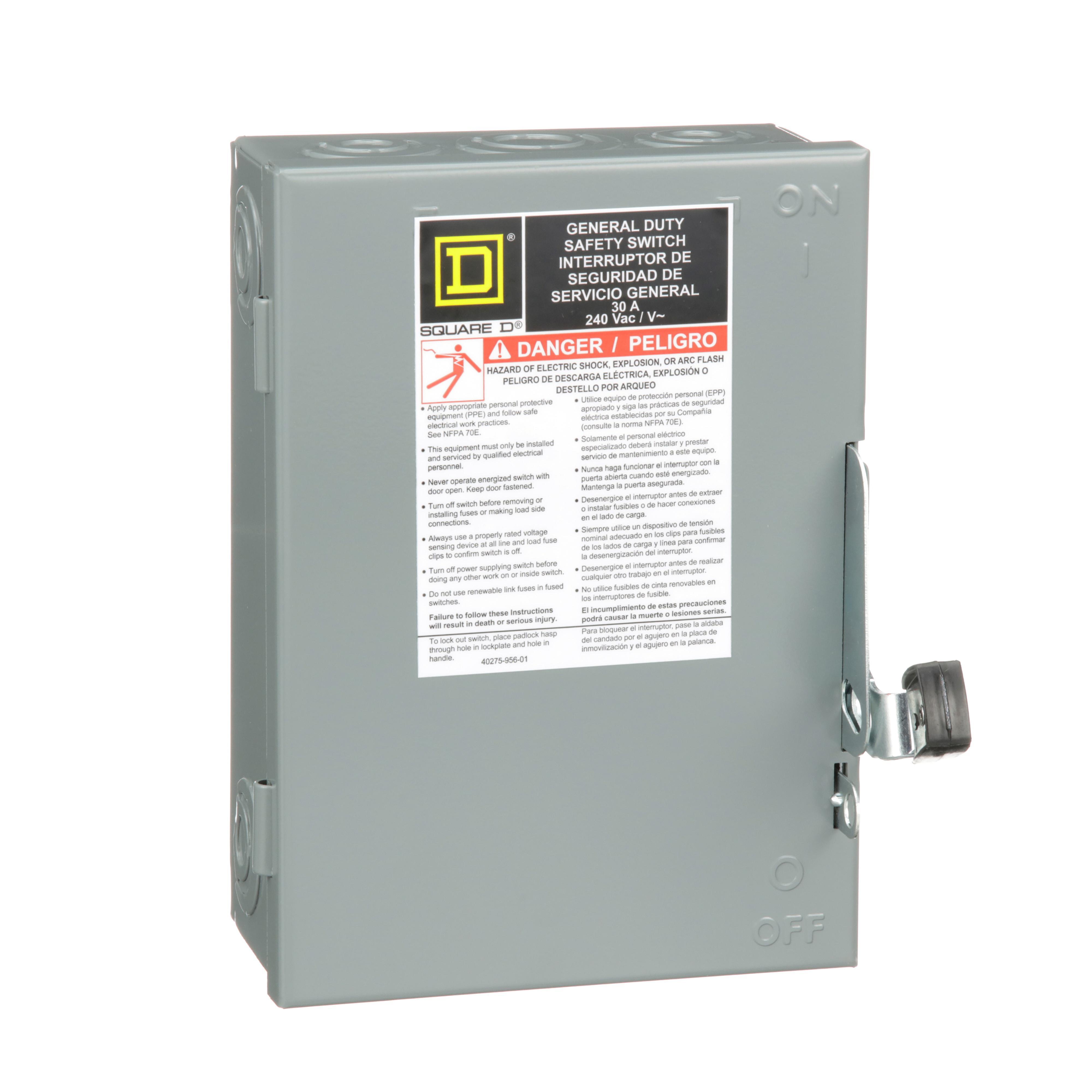

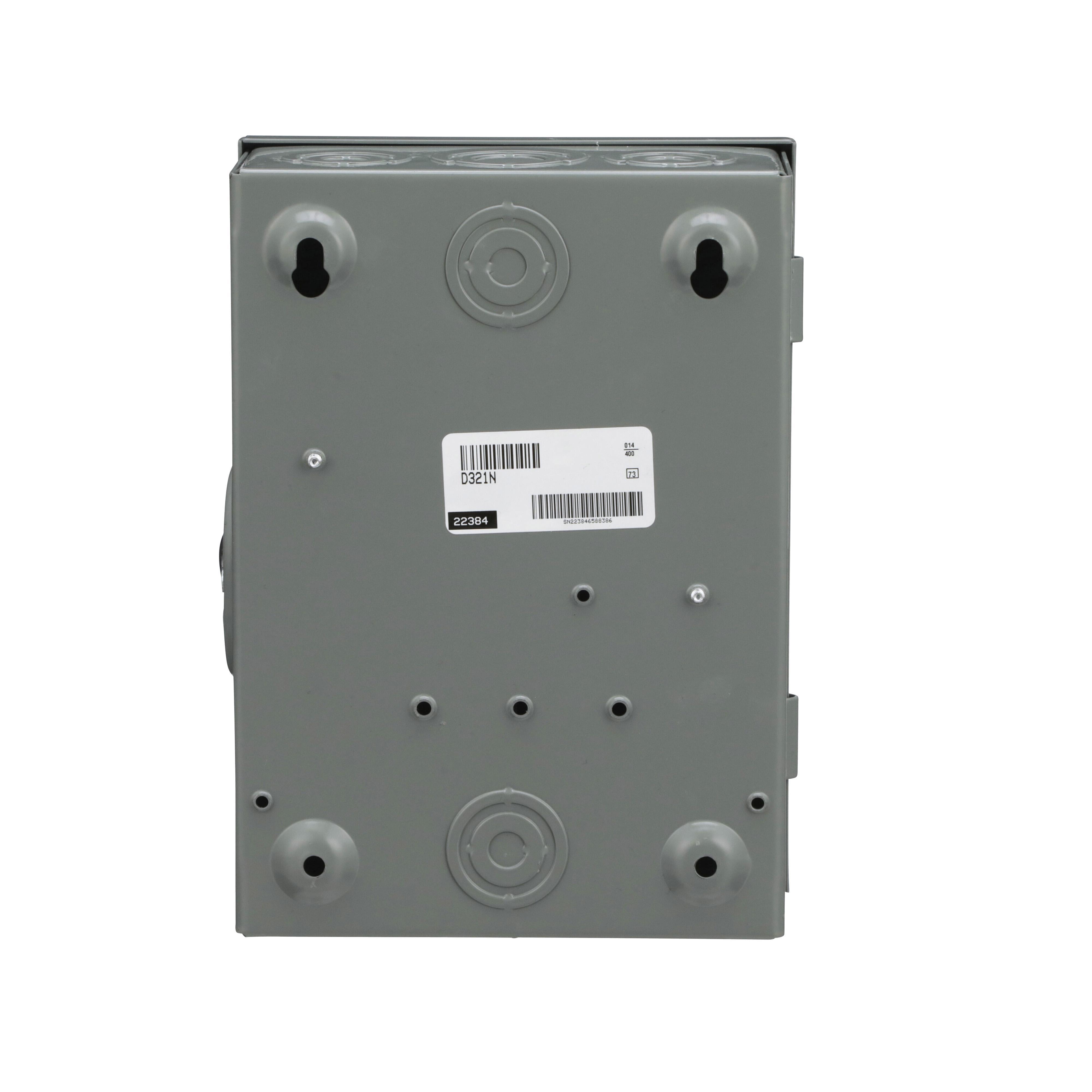

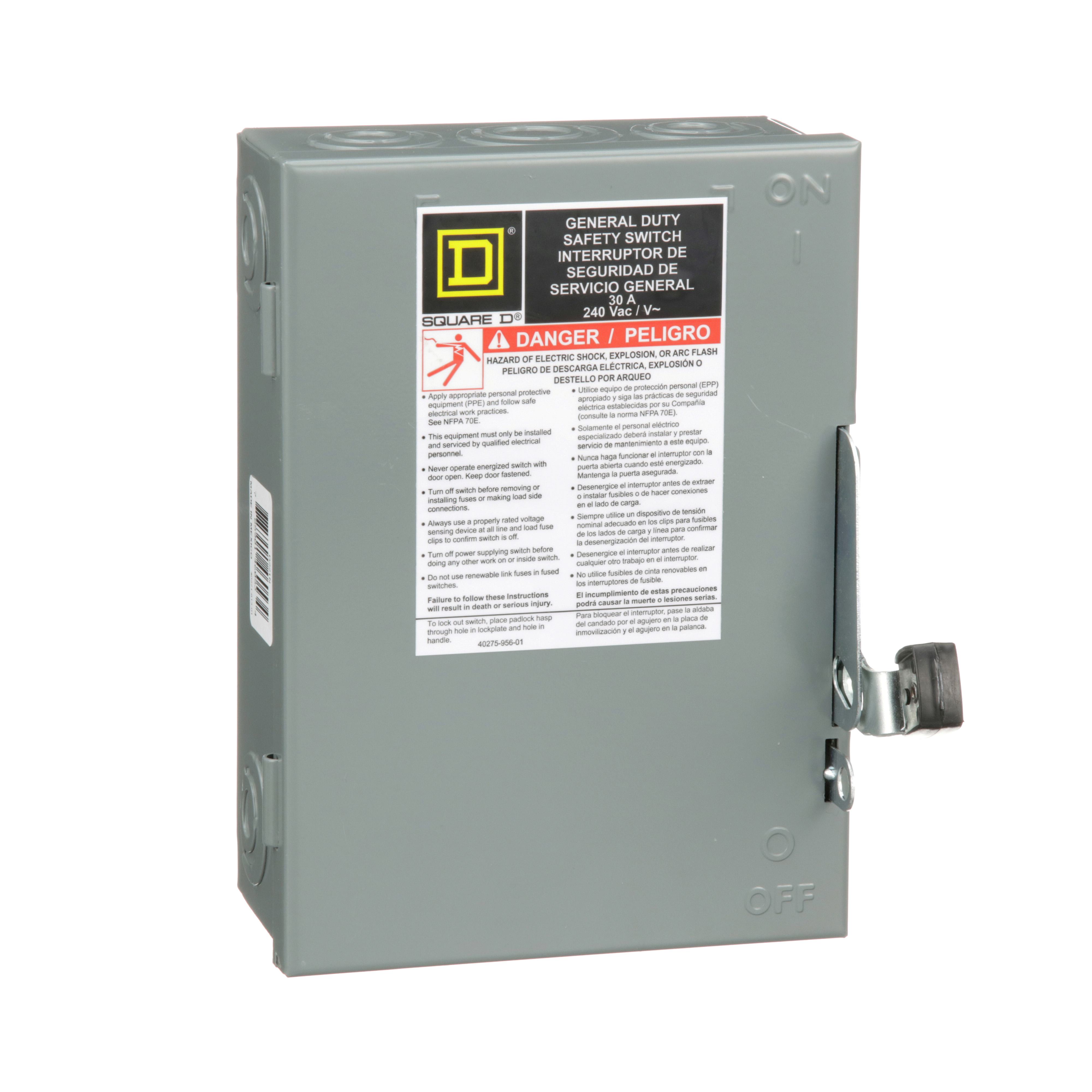

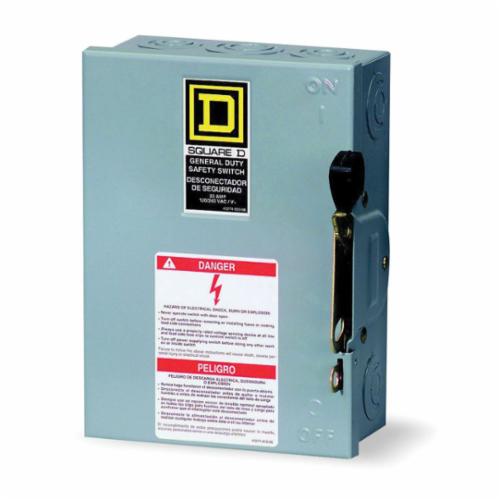

Square D D321NCP Single Throw Safety Switch, 240 V AC, 30 A, 1.5 hp 240 V at AC 60 Hz, 3 hp 240 V at AC 60 Hz, 3 hp 240 V at AC 60 Hz, 7.5 hp 240 V at AC 60 Hz, 3 poles
Schneider Electric's Square D general duty safety switches are designed for residential and light commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. General duty safety switches feature a quick make, quick break operating mechanism. This single throw safety switch is a fusible disconnect and has a rated current of 30A for 240VAC. This general duty switch has a 4 wire configuration with 3 poles and a factory installed neutral. The device accepts H, K or R fuse types. The enclosure is surface mounted and is a Type 1. This product has consumer packaging. General duty safety switches are UL Listed, and meet or exceed the NEMA Standard KS1.
-
BrandSquare D™
-
UPC785901071891
-
Manufacturer Part NumberD321NCP
-
CountryUSA
-
Terminal TypeLug
-
MaterialSteel
-
Frequency Rating60 Hz
-
TypeSingle Throw Safety Switch
-
Contact Form3PST
-
Mounting TypeSurface
-
Actuator TypeHandle
-
Voltage Rating240 V AC
-
Amperage Rating30 A
-
SeriesE3 Series
-
Horsepower1.5 hp 240 V at AC 60 Hz, 3 hp 240 V at AC 60 Hz, 3 hp 240 V at AC 60 Hz, 7.5 hp 240 V at AC 60 Hz
-
Short Circuit Current Rating100 KA
-
Number of Poles3
-
Dimensions9.25 in H x 6.75 in W x 3.63 in D
-
Number of Wires4
-
Enclosure TypeNEMA 1
-
PhaseThree Phase
- Designed for residential and commercial applications
- Fusible switches provide over-current and short circuit protection
- Excellent for disconnecting lighting, air condition, and appliances
- Quick make, quick break operating mechanism
- 2 and 3 Pole configurations
- Up to 100 kA Short Circuit Current Ratings, utilizing appropriately rated Class R Class J or Class
- Horsepower rated for motor applications -- 150hp max
- Quick-make, quick-break operating mechanism
- Visible blade switches for positive
- Handle lock-off provision for multiple padlocks --
- Cover can be padlock closed
- Tangential knockouts, where provided, lessen the need for conduit offset bends
- Standard bolt-on hub provisions for 30-200 A, NEMA Type 3R (top endwall)
- Insulated, bonded solid neutral assemblies are standard in fusible switches
- Spring reinforced plated copper fuse clip
-
Alternative Part Number8055882
-
UNSPSC39122205
-
IDEA Index ID8055882
-
Package DescriptionEACH
-
Standards/ApprovalsREACH Compliant|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65 Warnings.ca.gov|UL listed file E2875
-
Warranty18 months
-
RoHS
-
Catalog
-
Specification Sheet
-
Instruction/Installation Manual
-
Owners/User Manual
