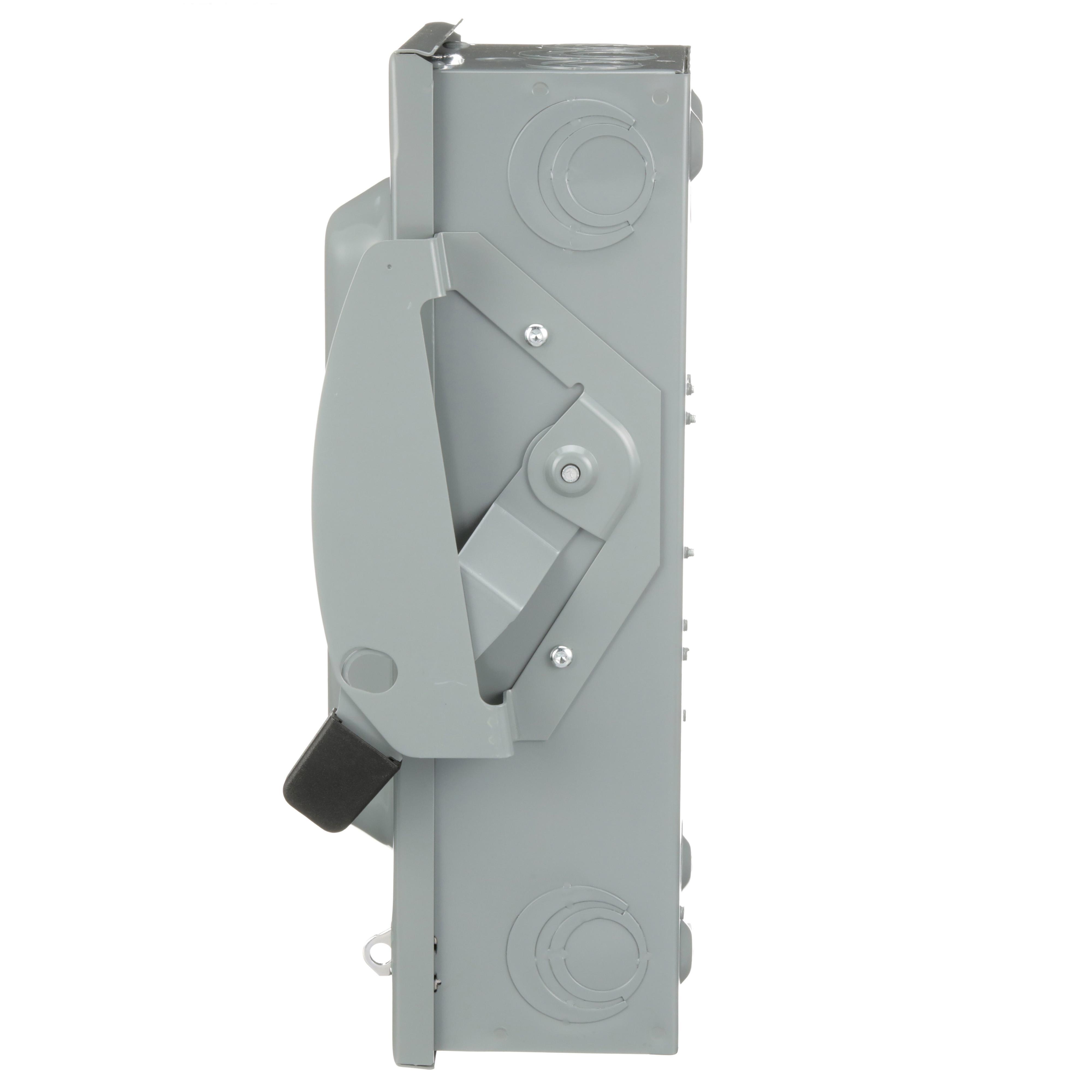

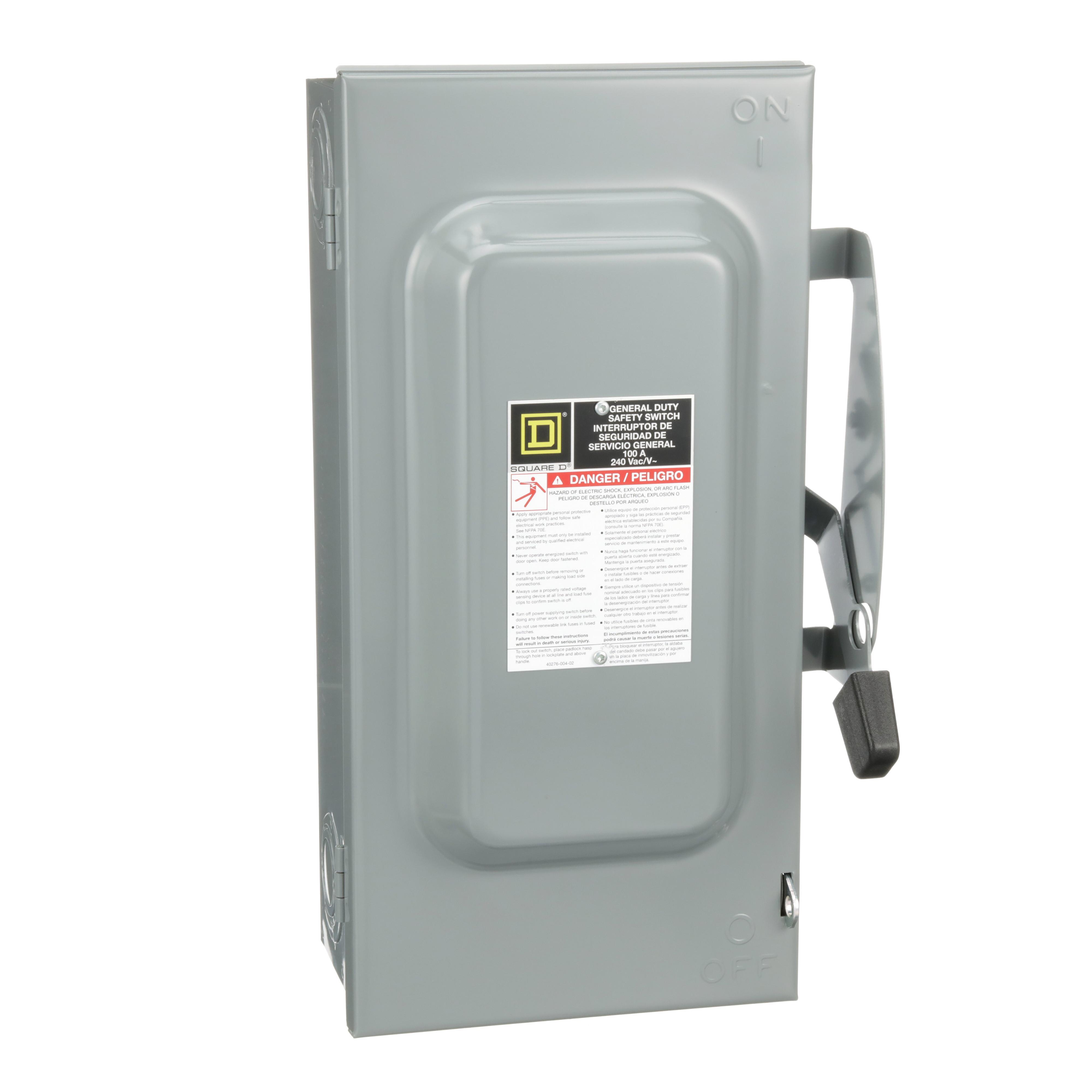

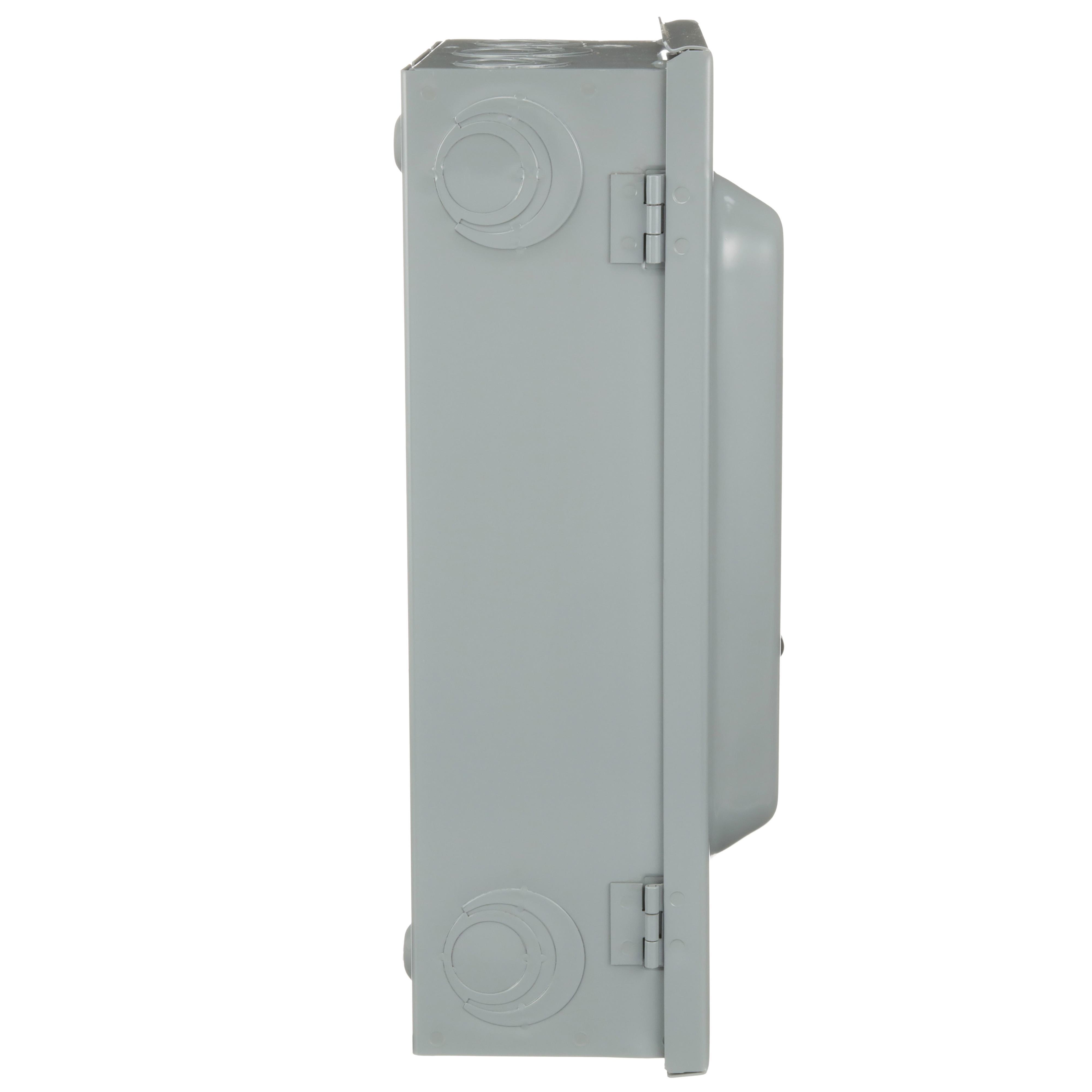

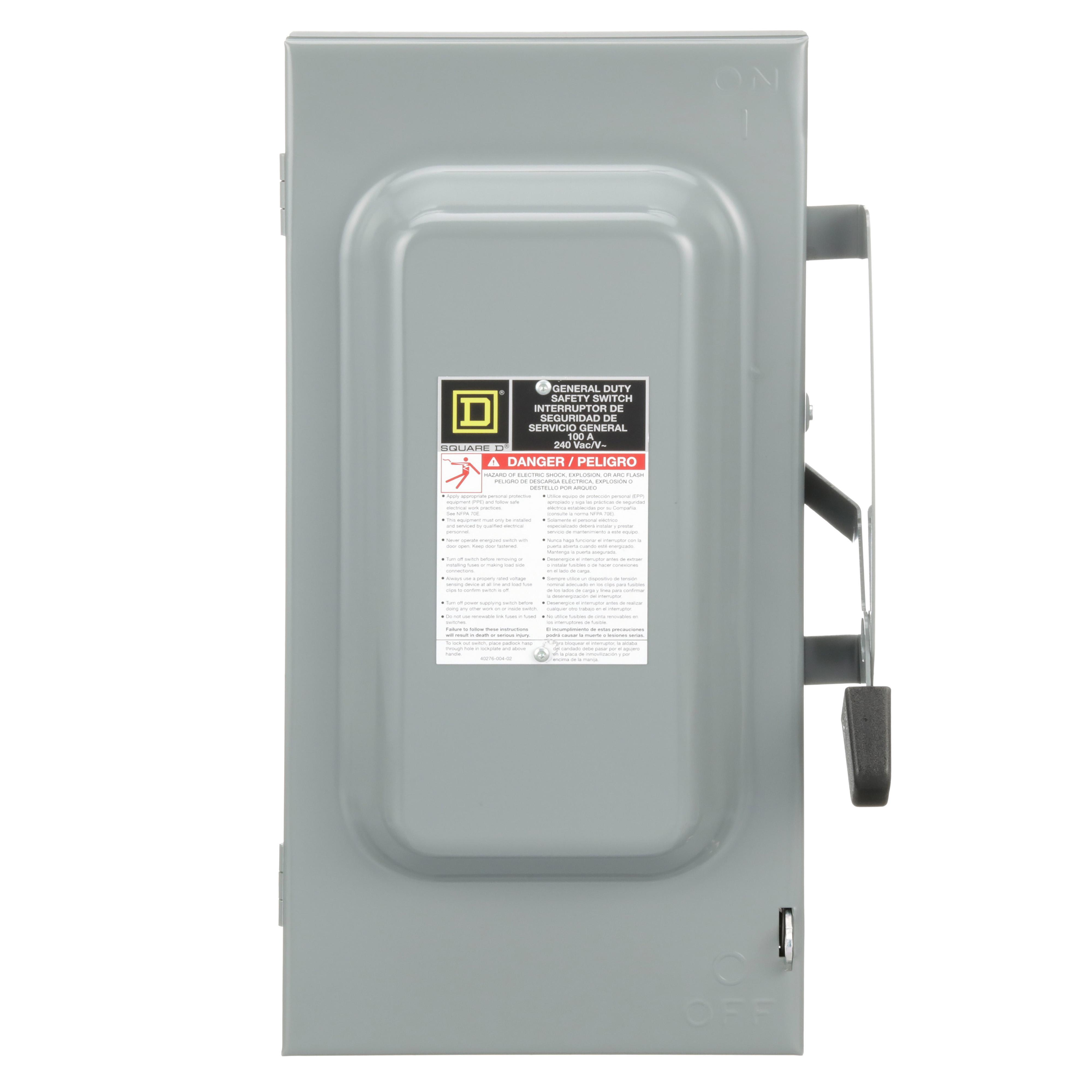

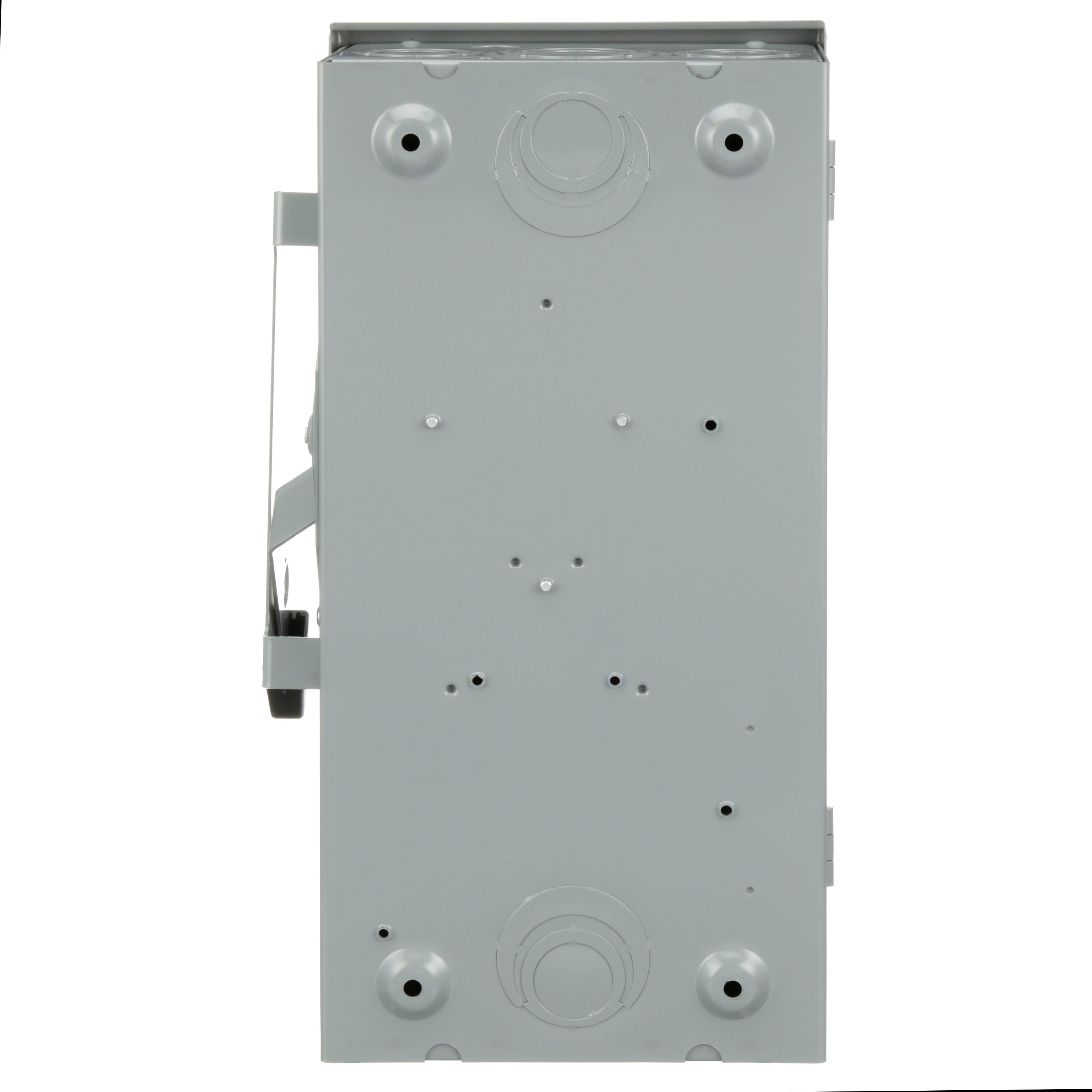

Square D™ DU323 F3 Series Enclosed General Duty Non-Fusible Safety Switch, 240 V AC, 100 A, 15 to 30 hp, 3PST Contact, 3 Poles
Schneider Electric's Square D general duty safety switches are designed for residential and light commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. General duty safety switches feature a quick make, quick break operating mechanism. This single throw safety switch is a non fusible disconnect and has a rated current of 100A for 240VAC. This general duty switch has a 3 wire configuration with 3 poles. The enclosure is surface mounted and is a Type 1. General duty safety switches are UL Listed, and meet or exceed the NEMA Standard KS1.
-
BrandSquare D™
-
UPC785901491804
-
Manufacturer Part NumberDU323
-
CountryUSA|Canada
-
Terminal TypeLug
-
MaterialSteel
-
TypeEnclosed General Duty Non-Fusible
-
Contact Form3PST
-
Mounting TypeSurface
-
Voltage Rating240 V AC
-
Amperage Rating100 A
-
SeriesF3 Series
-
Horsepower15 to 30 hp
-
Number of Poles3
-
Dimensions10-1/2 in W x 6-1/2 in D x 17-1/2 in H
-
Number of Wires3
-
Enclosure TypeNEMA 1
-
Phase1/3
- Fusible switches provide over-current and short circuit protection
- Excellent for disconnecting lighting, air condition, and appliances
- Quick make, quick break operating mechanism
- Multiple padlock provision in off position
- Tangential knockout alleviate the need for offset bends
- Spring reinforced, plated copper fuse clips
- 15 hp 1-Phase/30 hp 3-Phase maximum power rating
-
Alternative Part Number8069966
-
UNSPSC39122218
-
IDEA Index ID8069966
-
Package DescriptionEACH
-
Standards/ApprovalsBuy American Act Compliant|RoHS Compliant|UL File No. E2875|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
-
Warranty18 Months
-
RoHS
-
Catalog
-
Specification Sheet
-
Owners/User Manual
