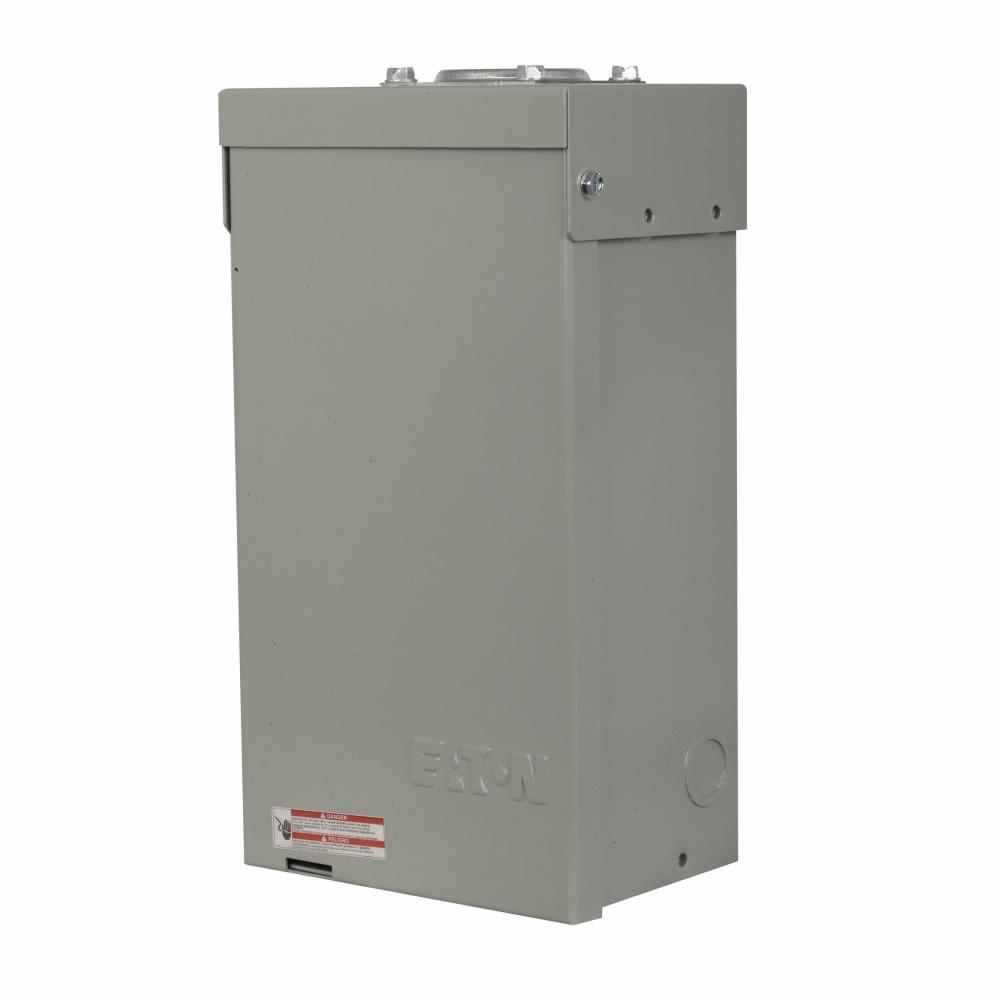

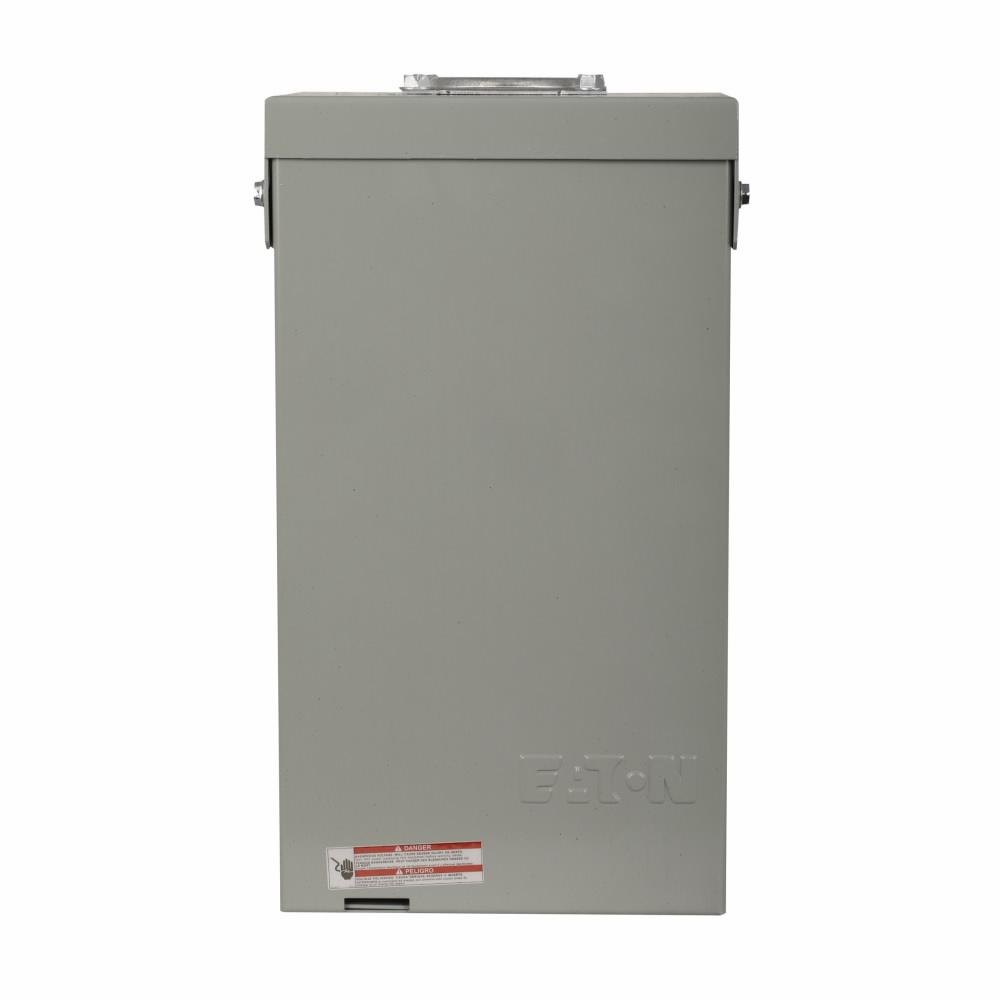

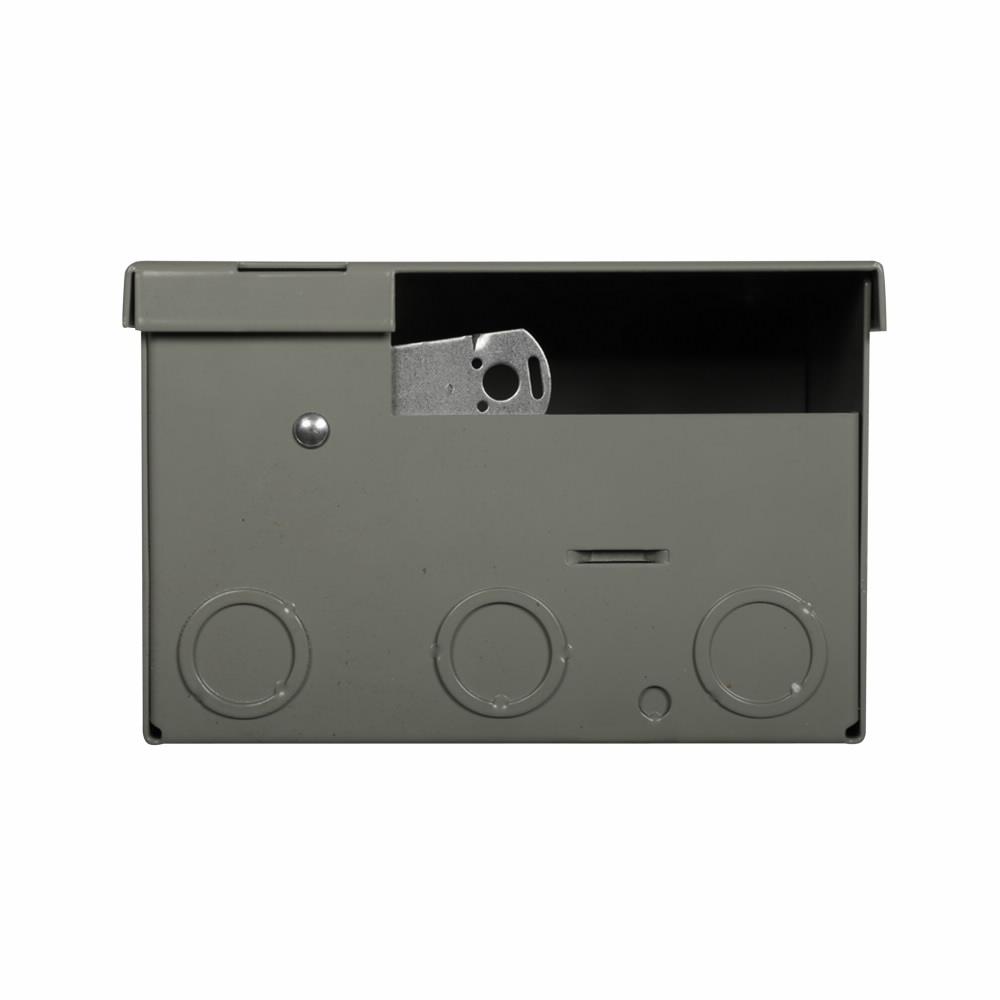

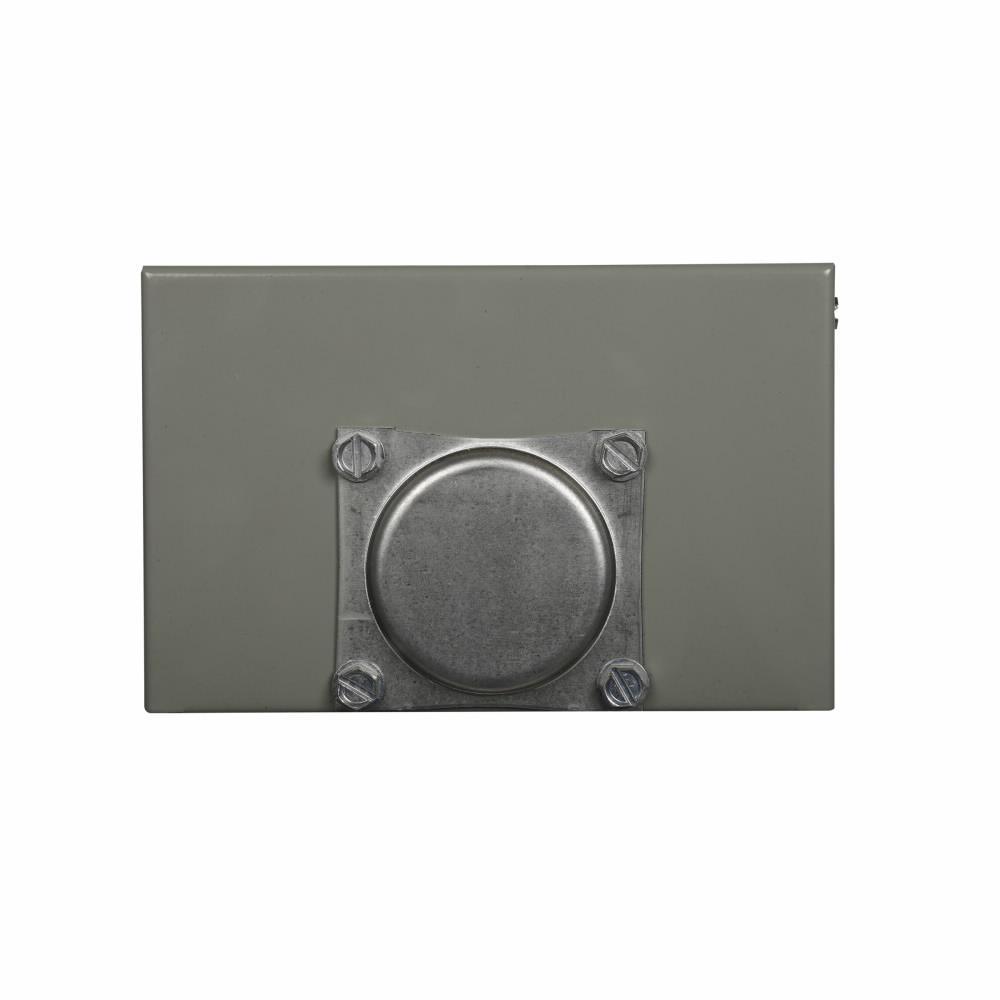

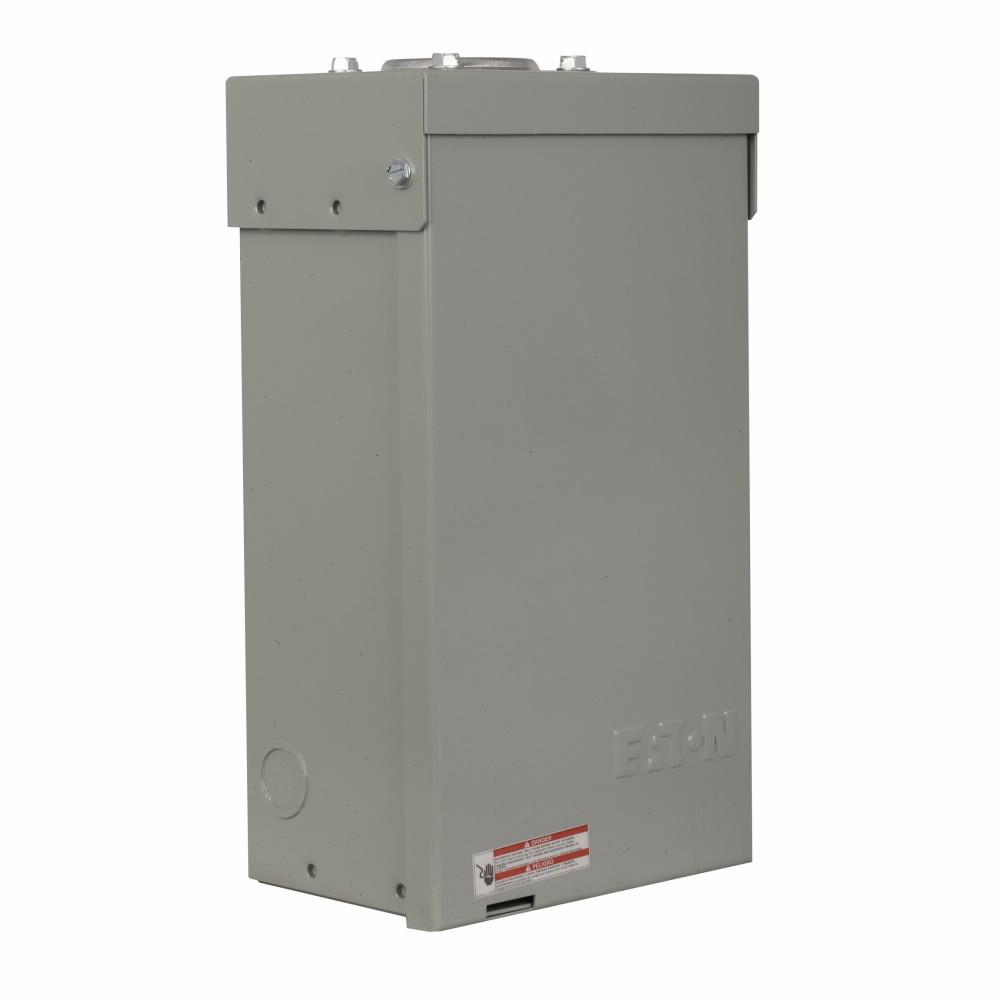

EATON CHU7N7NS 4-Circuit Power Outlet Panel, 125 VAC, 20 A, Surface Mount
A power outlet panel (or POP) is a device designed for outdoor service to meet temporary power requirements at construction sites and RV parks. POPs provide a safe and reliable means for users to access electricity at such locations.
-
BrandEATON
-
UPC782114203774
-
Manufacturer Part NumberCHU7N7NS
-
CountryUSA
-
MaterialGalvanized Steel
-
Receptacle TypeNEMA 5-20R2GFI
-
Type4-Circuit
-
Mounting TypeSurface
-
Voltage Rating125 V AC
-
Amperage Rating20 A
-
Enclosure TypeNEMA 3R
- Designed for outdoor service to meet power outlet requirements
- Receptacles conform to NEMA and/or ANSI configurations as specified by the national electrical Code® (NEC)
- Includes a factory installed insulated neutral bar with provisions for bonding when used for temporary service entrance applications
- 125 A rated meter socket
- Temporary power and RV park POPs are CSA listed
- Compact pop and single receptacle devices are not CSA listed
- Non-ground fault circuit breaker position 1 and 2
-
Alternative Part Number7391597
-
UNSPSC39121309
-
IDEA Index ID7391597
-
Package DescriptionEACH
-
Standards/ApprovalscULus Listed|UL 231/File No. E163588
-
Warranty1 year
-
