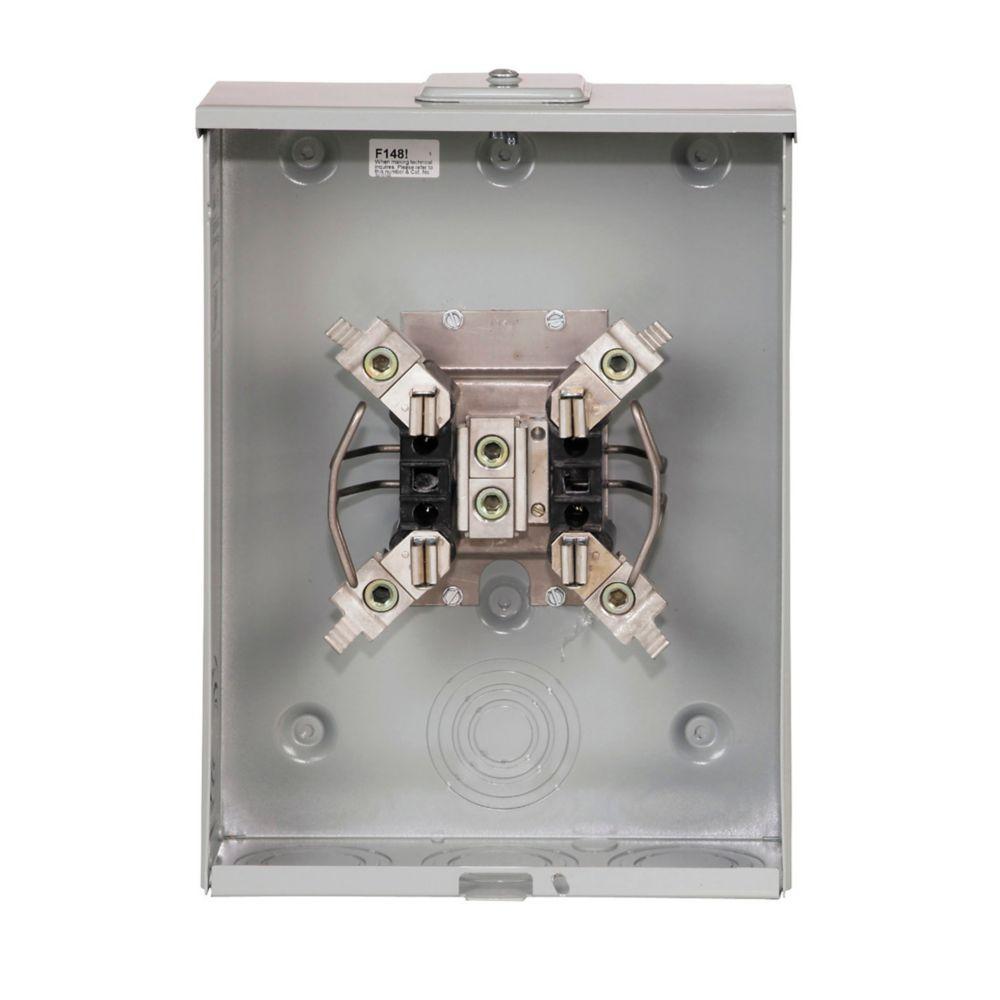

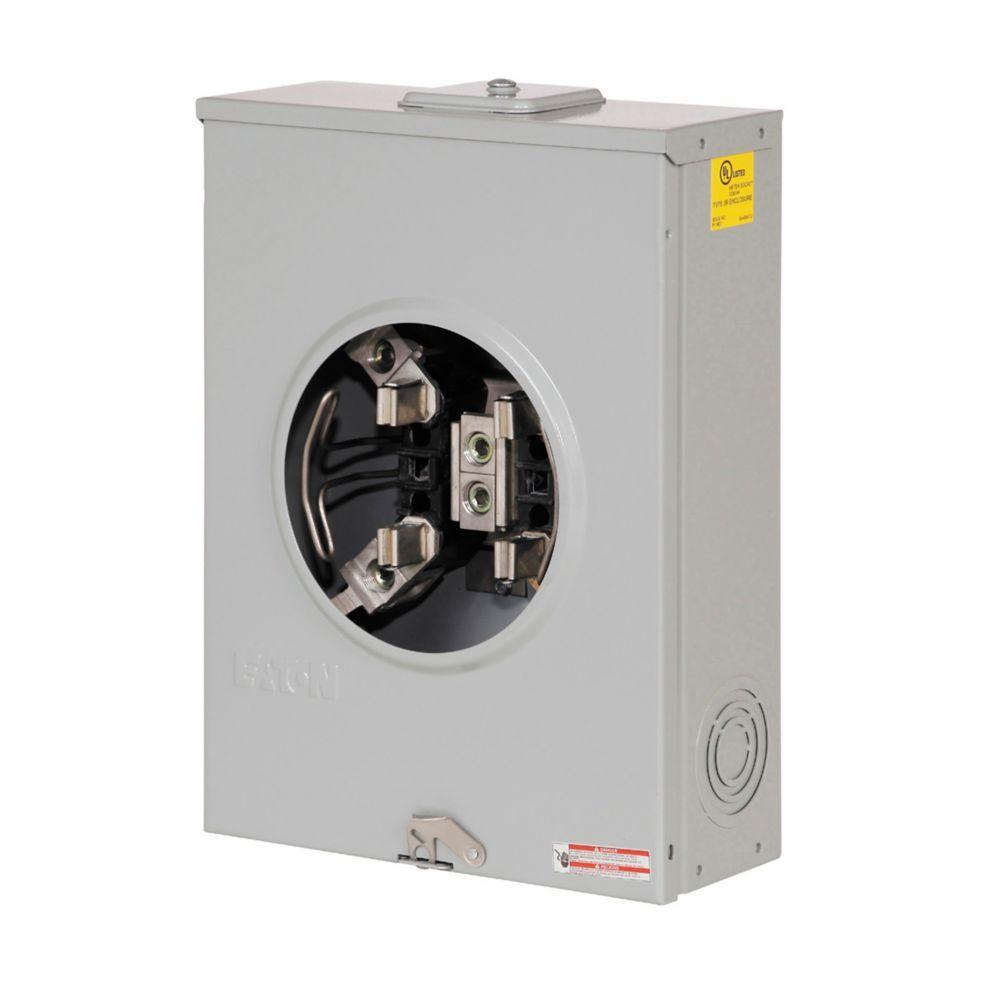

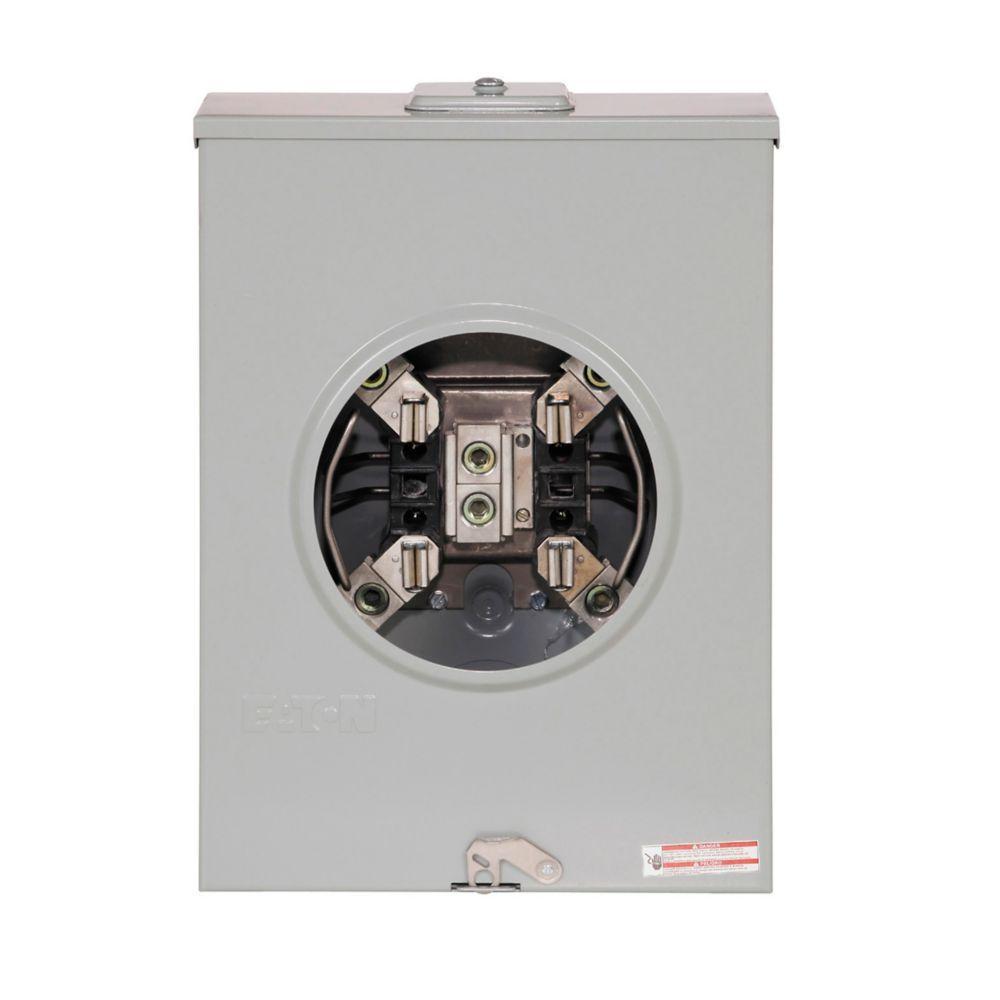

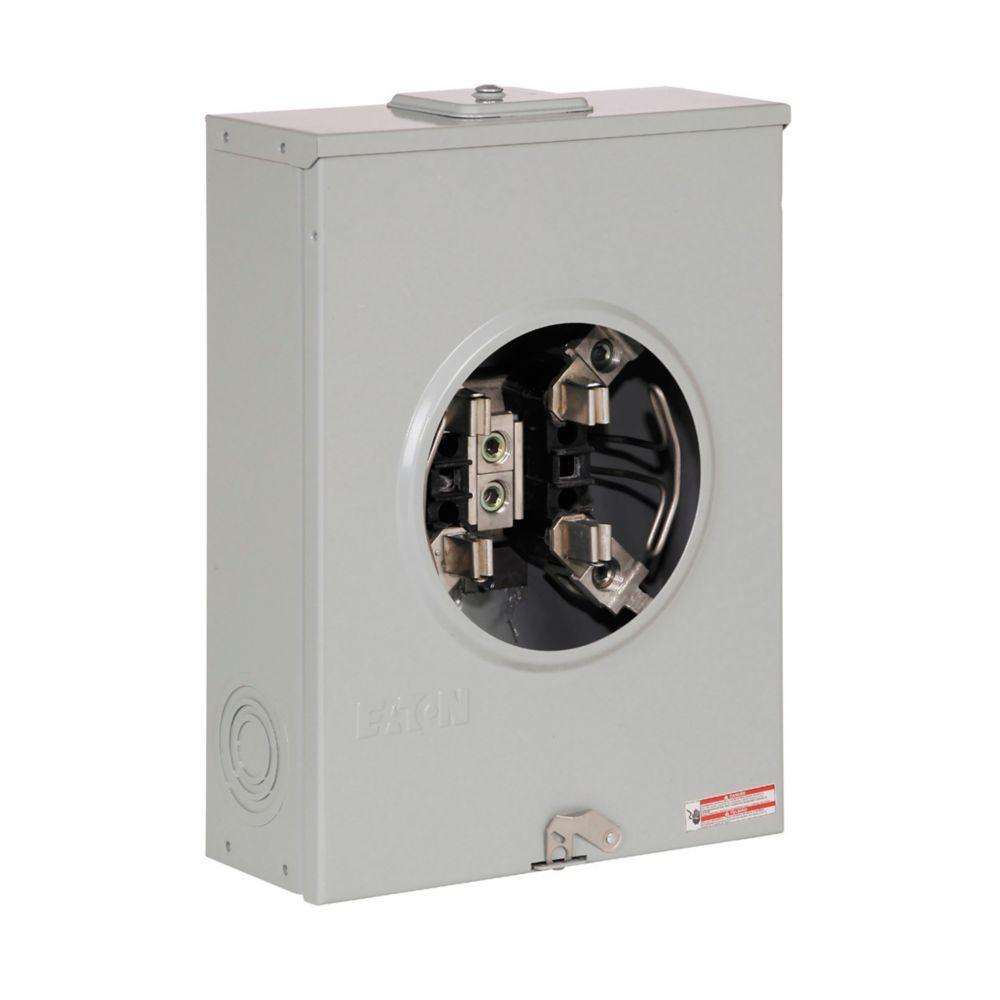

EATON UHTRS213CE 1-Position Horn Bypass Triplex Ground Meter Socket, 600 V AC, 200 A, 1 Phase
Eaton is your one-stop shop for the widest range of residential and light commercial electric meter sockets in the industry. These single-socket surface- or flush-mount outdoor enclosures come in two styles, allowing for both easy, cost-saving installation, and for the use of BR- or CH-type branch breakers. The one-piece, die-run electric meter socket enclosures eliminate tampering and extend product life. These are utility approved and can be used for residential meter socket installations, rural service entrances, mobile homes, or for temporary power on construction sites.
-
BrandEATON
-
UPC786685217772
-
Manufacturer Part NumberUHTRS213CE
-
CountryUSA
-
Terminal TypeLine/Load
-
Type1-Position Horn Bypass Triplex Ground
-
Mounting TypeFlush
-
Voltage Rating600 V AC
-
Amperage Rating200 A
-
Cover TypeRingless
-
Wire Size6 AWG to 350 kcmil
-
Hub Size3-5/16 in
-
Number of Jaws4
-
Dimensions4.48 in L x 11.22 in W x 15.11 in H
-
Phase1
- Block assembly base exceeds 400 in-lb of torque provides durability under the most extreme installation circumstances
- One-piece, die-run enclosure eliminates tampering and extends product life
- High visibility EATON name embossed on cover
- Knockouts are installer friendly, labor savings, less time needed for removing knockouts
- Oversized 7/8 in Dia, heavy duty, steel lug screws stronger connection component facilitates a reliable wire termination
- Slide nuts are captive allow for ease in installation of conductors and eliminates lost components
- Horn bypass kit is field installable by changing out slide nut, integral triplex or quadplex ground extruded in neutral lugless inventory required and field modifications are simple
- One-piece for terminating incoming/outgoing neutral conductors, which increases integrity of connections
- 100% plated bridge with four point mounting, zinc chromate plated to provide superior corrosion resistance
- Rating up to 200 kA interrupt rating with specified overcurrent protection devices
- Provides a complete EATON residential solution
- Copper plated alloy jaws with reinforcing spring
- Steel reinforcing springs used in all socket jaws to maintain electrical connections
-
Alternative Part Number10030528
-
UNSPSC39121102
-
IDEA Index ID10030528
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
Warranty1 year
-
Specification Sheet
-
Catalog
-
Owners/User Manual
