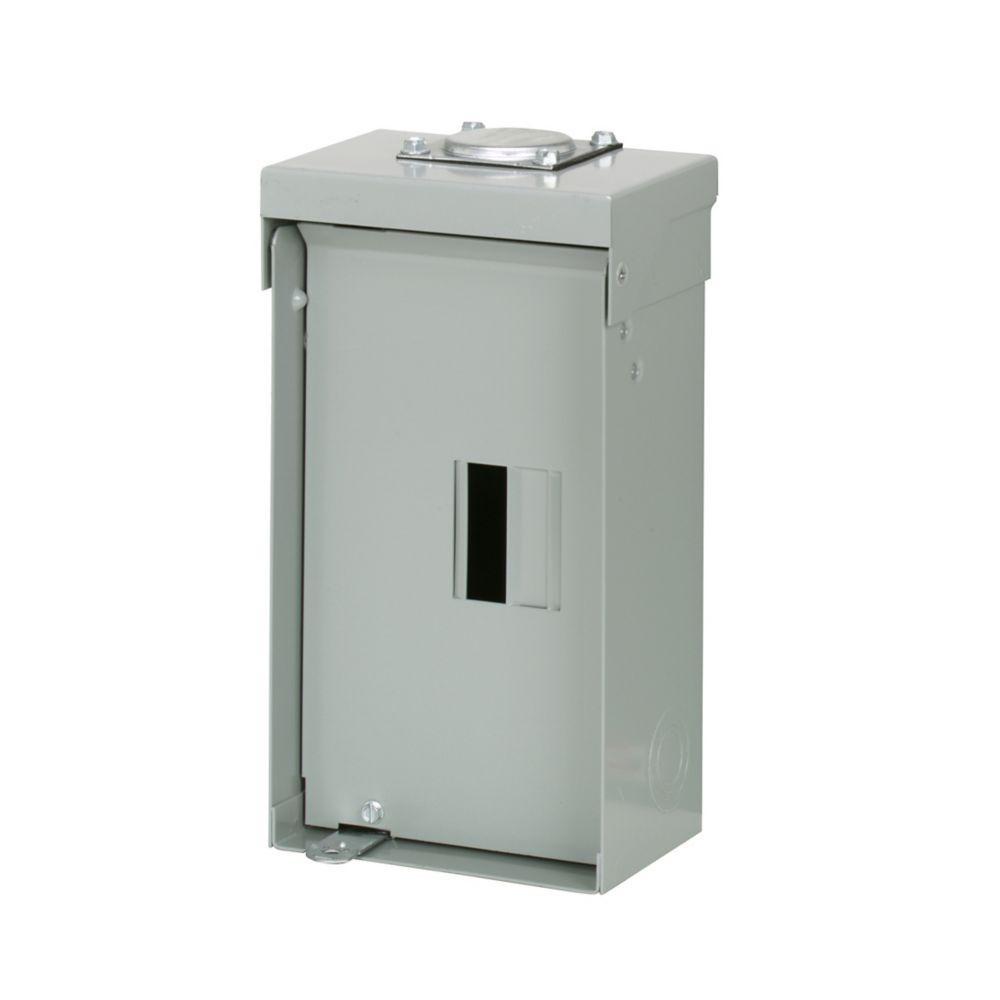

EATON BR24L125RP 1-Phase Main Lug Loadcenter, 120/240 V AC, 125 A, 4 Poles, 10 kA Interrupt
Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
-
BrandEATON
-
UPC786676001502
-
Manufacturer Part NumberBR24L125RP
-
CountryUSA
-
Type1-Phase
-
Voltage Rating120/240 V AC
-
Amperage Rating125 A
-
Number of Circuits4
-
Wire Size14 to 1/0 AWG
-
Housing MaterialAluminum
-
Dimensions13 in L x 7.2 in W x 4.7 in H
-
Number of Spaces2
-
Interrupt Rating10 kA
-
Enclosure Box SizeNEMA 6R
-
Enclosure TypeNEMA 3R
-
Breaker TypeBR
-
Mounting TypeSurface
-
Wiring Configuration3-Wire
-
Number of Poles4
- Flexible neutral design
- Tangential main knockout
- Single key hole mounting
- Factory pre-attached neutral bonding strap
- Suitable for use as service equipment when no more than two service disconnecting mains are provided or when not used as lighting and appliance panelboard
- Insulated or bondable split neutral
- For use with type BR 1 in breakers
- Outdoor rainproof enclosure
- Copper aluminum wire at 60 to 75 deg C for main lugs
- Standard tin plated aluminum bus for excellent conductivity and corrosion-resistance
- Current design
| Cross-Reference Number |
|---|
| 512133 |
-
Alternative Part Number7431390
-
UNSPSC39121101
-
IDEA Index ID7431390
-
Package DescriptionEACH
-
Standards/ApprovalsUL 67,UL 50
-
Warranty10 years
-
Specification Sheet
-
Instruction/Installation Manual
-
Owners/User Manual
