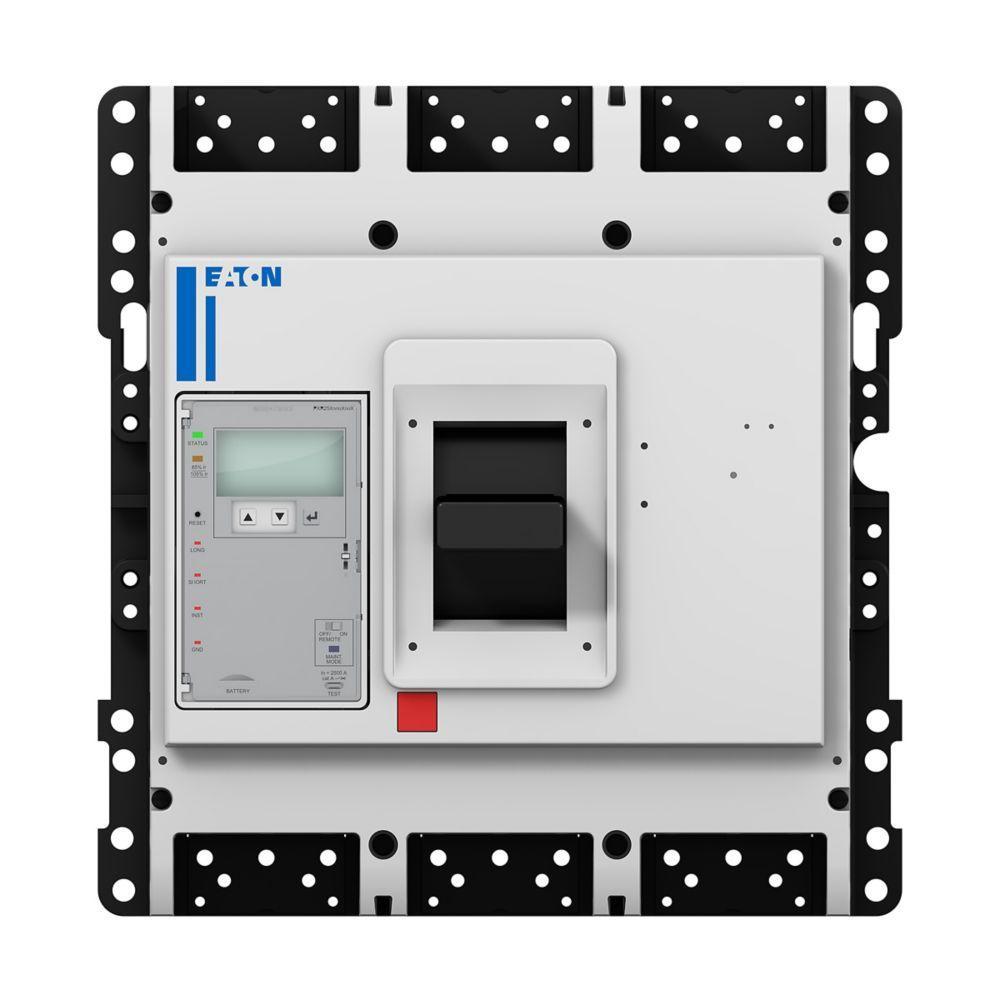

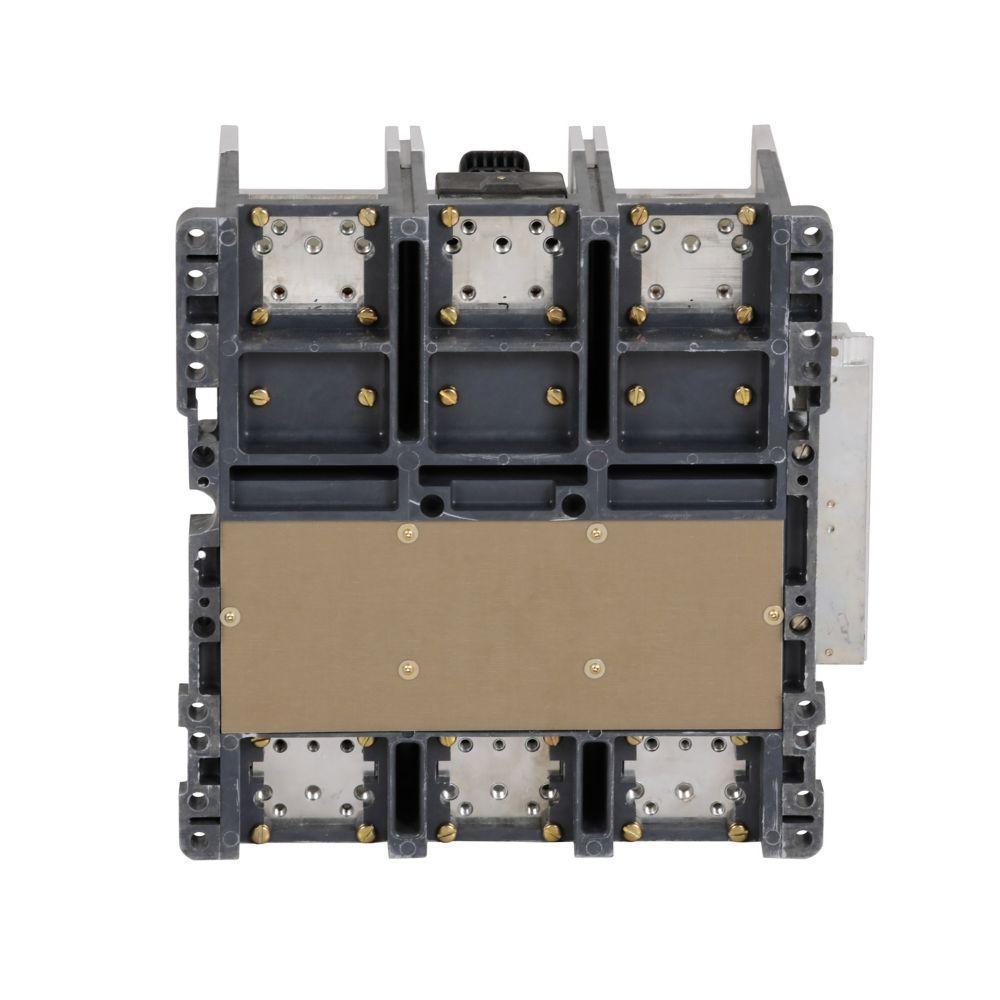

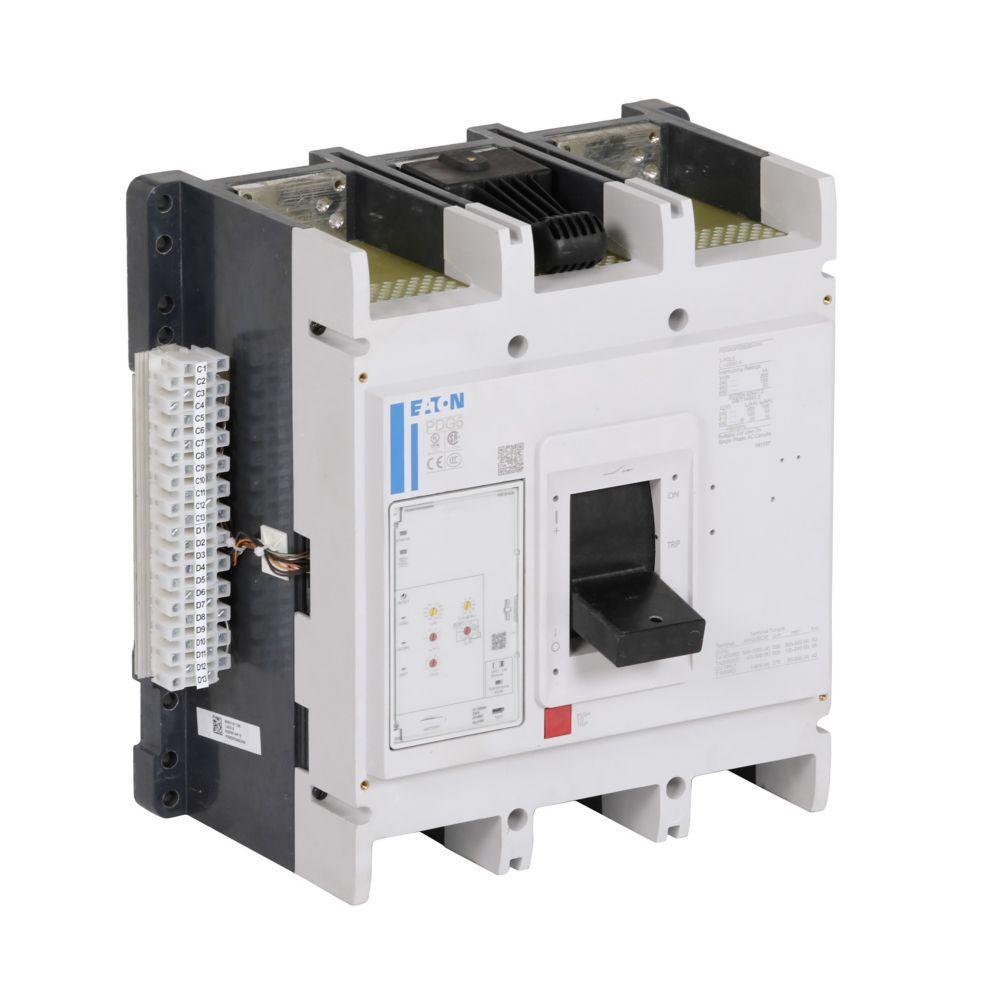

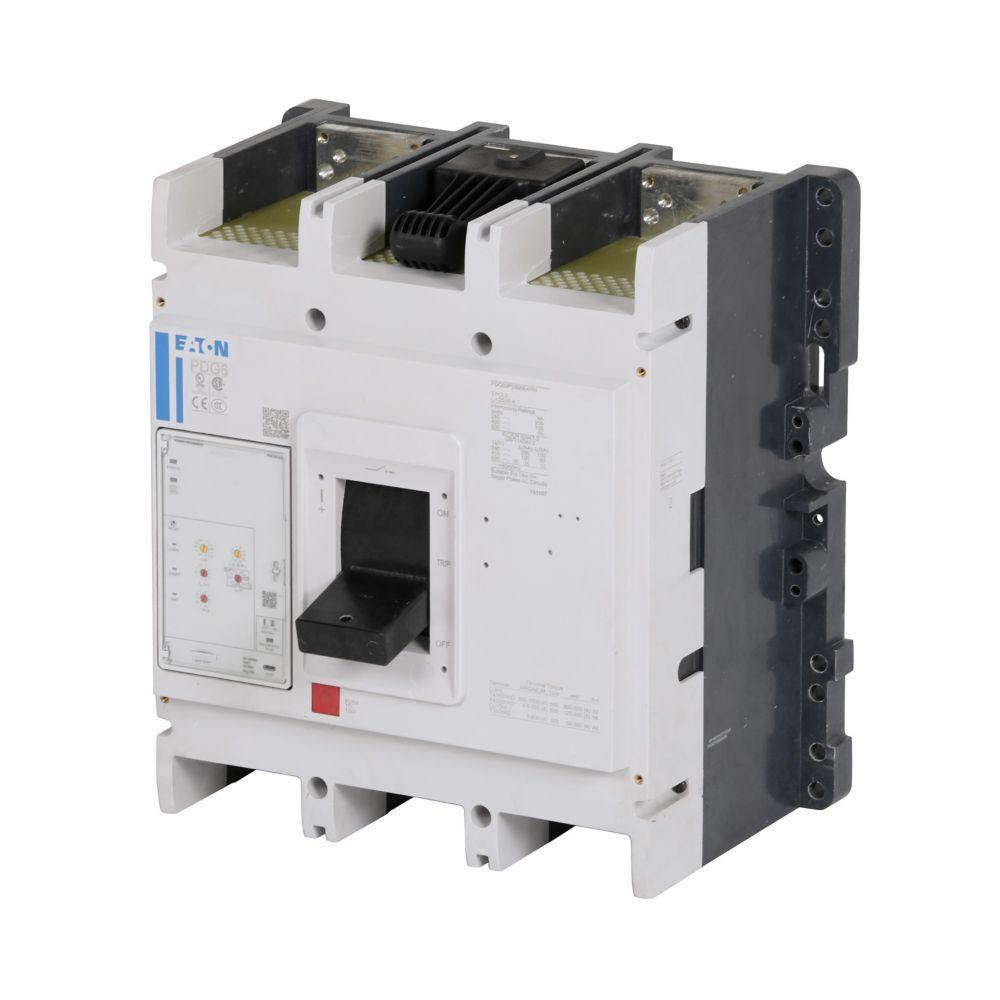

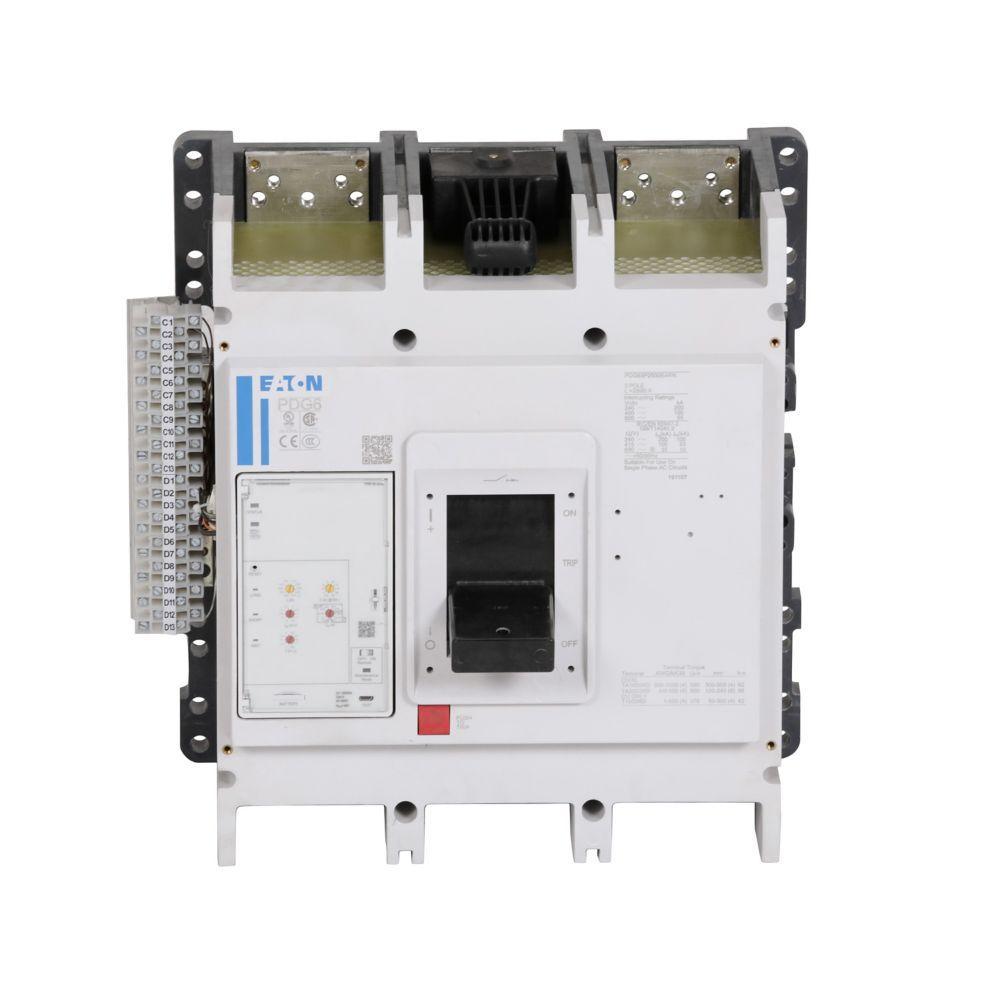

EATON Power Defense™ PDG63P2000E4ZN Globally Rated Molded Case Circuit Breaker, 600 V AC, 2000 A, 100 kA at 480 V/65 kA at 600 V Interrupt, 3 Poles, Electronic Trip
The Power Defense™ molded case circuit breaker portfolio is globally rated in a small footprint for easy adaptability no matter the application or project requirement. A circuit breaker with communicating electronic trip units and the ability to generate the data to help you optimize your facilities performance and to help keep your employees, customers and end-users safe by reducing the risk of arcflash events.
-
BrandEATON
-
UPC786679418710
-
Manufacturer Part NumberPDG63P2000E4ZN
-
CountryUSA
-
Temperature Rating-20 to 70 deg C
-
MaterialGlass Polyester
-
Frame6
-
Frequency Rating50/60 Hz
-
Trip TypeElectronic
-
TypeGlobally Rated
-
Mounting TypeFixed
-
Voltage Rating600 V AC
-
Amperage Rating2000 A
-
SeriesPDG6
-
Wire Size2 to 600 AWG
-
Number of Poles3
-
Dimensions15.5 in W x 9.8 in D x 16 in H
-
Interrupt Rating100 kA at 480 V/65 kA at 600 V
-
Enclosure TypeIP2X
- Power Xpert® release trip units offer features such as breaker health, multiple load alarms and ground fault alarm to help avoid costly downtime through predictive and preventative maintenance
- Arcflash reduction maintenance system helps to reduce arc flash incident energy levels, thereby reducing PPE requirements and minimizing risk while improving personnel safety and productivity
- The PXR trip units provide an intuitive user interface that allows you to easily view and adjust breaker settings and system performance
- Embedded communications and metering help to reduce cost by eliminating the need for separate communication components and associated wiring
- Field installable components and trip units minimize the amount of inventory while enabling the user almost infinite options to customize the breaker to the application and their specification
- Communications and energy metering at 1% accuracy level
- Programmable relays for situational awareness and flexibility
- Power Xpert® protection manager software for setup and testing
- Zone selective interlocking (ZSI) with local and remote indication
- Without terminals (imperial tapped conductors)
-
Alternative Part Number14613956
-
UNSPSC39121616
-
IDEA Index ID14613956
-
Package DescriptionEACH
-
Standards/ApprovalsCCC Certified|CSA Certified|IEC 60947-2|RoHS Compliant|UL 489
-
Warranty1 year from the date of installation, 18 months from the date of shipment
-
