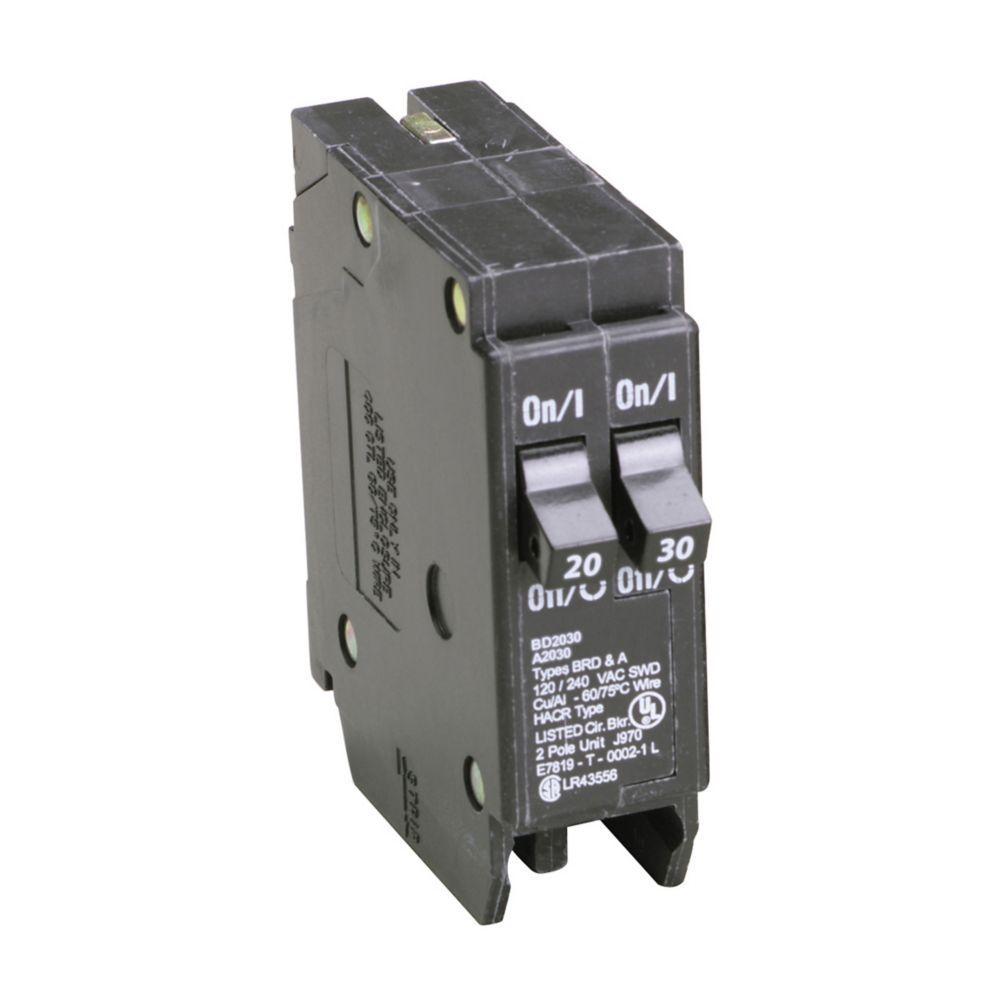

EATON BD2030 Type BD Duplex Molded Case Circuit Breaker, 120 V AC, 20 to 30 A, 10 kA Interrupt, 1 Poles, Thermal Magnetic Trip
Eatons BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.
-
BrandEATON
-
UPC786676369305
-
Manufacturer Part NumberBD2030
-
CountryUSA
-
Temperature Rating60 to 75 deg C
-
Trip TypeThermal Magnetic
-
TypeType BD Duplex
-
Connection TypeLine/Load Lug
-
Mounting TypePlug-On
-
Actuator TypeHandle
-
Voltage Rating120 V AC
-
Amperage Rating20 to 30 A
-
Wire Size14 to 4 AWG
-
Number of Poles1
-
Dimensions3 in L x 1 in W x 3 in H
-
Interrupt Rating10 kA
-
Phase1
- and AF/GF designs
- Short-body design maximizes your space inside the loadcenter
- creating additional wire-way and gutter space for ease of installation
- Easy to read trip codes through improved LEDs and a clear test button increases your troubleshooting efficiency
- Improved AFCI and GFCI algorithms significantly reduce nuisance tripping
- resulting in less call backs
-
Alternative Part Number7434959
-
UNSPSC39121601
-
IDEA Index ID7434959
-
Package DescriptionEACH
-
Standards/ApprovalsUL 489,Federal Specifications Classification W-C375
-
Warranty Information
-
Catalog
-
Specification Sheet
-
Owners/User Manual
