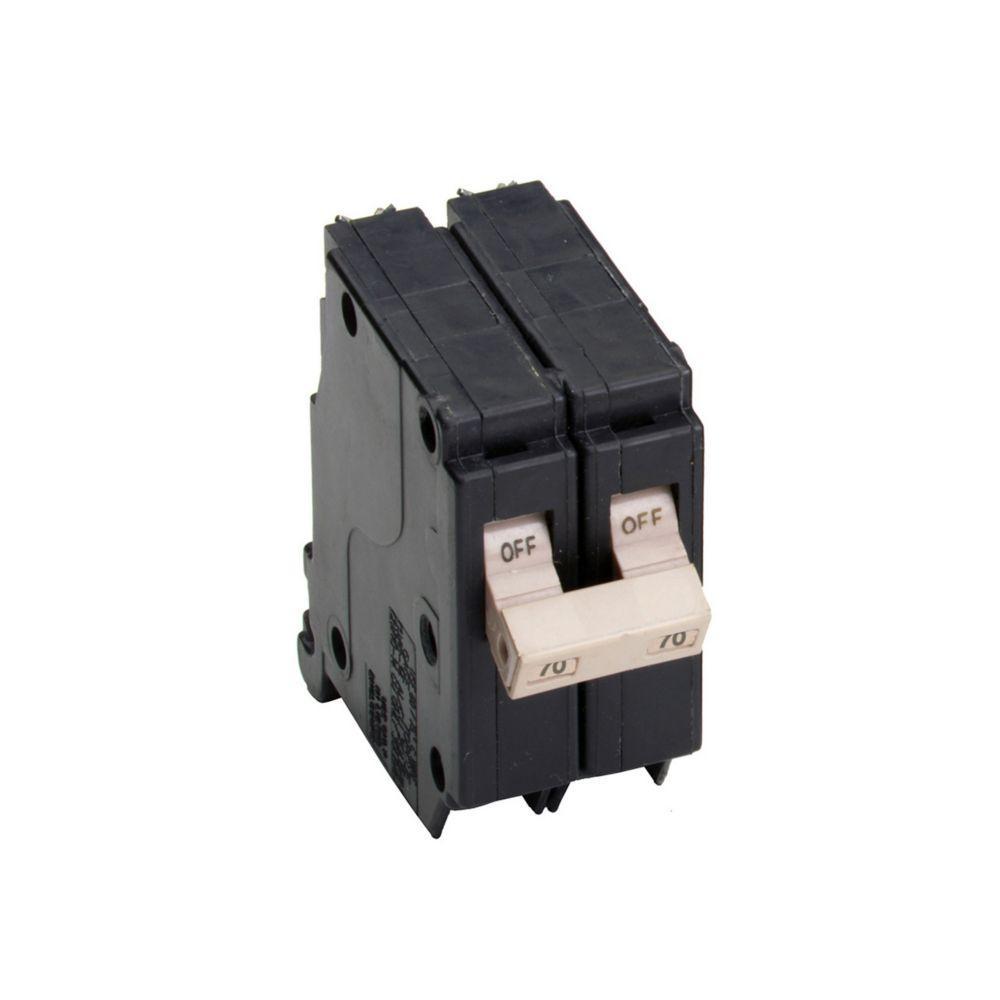

EATON CH270 Type CH Standard Molded Case Circuit Breaker, 120/240 V AC, 70 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Eaton's residential CH circuit breakers provide premium overload protection. The Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multiple breakers have an internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.
-
BrandEATON
-
UPC782113101897
-
Manufacturer Part NumberCH270
-
CountryUSA
-
Temperature Rating40 deg C
-
MaterialBakelite
-
Trip TypeThermal Magnetic
-
ColorBlack
-
TypeType CH Standard
-
Mounting TypePlug-On
-
Actuator Type2-Position Handle
-
Voltage Rating120/240 V AC
-
Amperage Rating70 A
-
Wire Size14 to 2 AWG
-
Number of Poles2
-
Dimensions3/4 in W x 3-1/2 in D x 3 in H
-
Interrupt Rating10 kA
-
Enclosure TypeNEMA 1/3R
-
Phase1
- Space saving 3/4 in twin design accommodates more breakers per panel
- Tri-drive screw accepts flat, Robertson® or Philips® drivers, making it easier for electricians to install
- Single and 2-pole breakers up to 50 A
- Units feature a quick make, quick break switch mechanism combined with inverse time element tripping operation and trip free handle design
- Type CH circuit breakers trip to the Off position eliminating nuisance callbacks
- Type CH interiors feature 100% copper bus
- Copper aluminum wire
- 2-pole requires two 3/4 in space
| Cross-Reference Number |
|---|
| 539961 |
-
Alternative Part Number7335666
-
UNSPSC39121601
-
IDEA Index ID7335666
-
Package DescriptionEACH
-
Standards/ApprovalsUL 489
-
WarrantyLimited Lifetime
-
