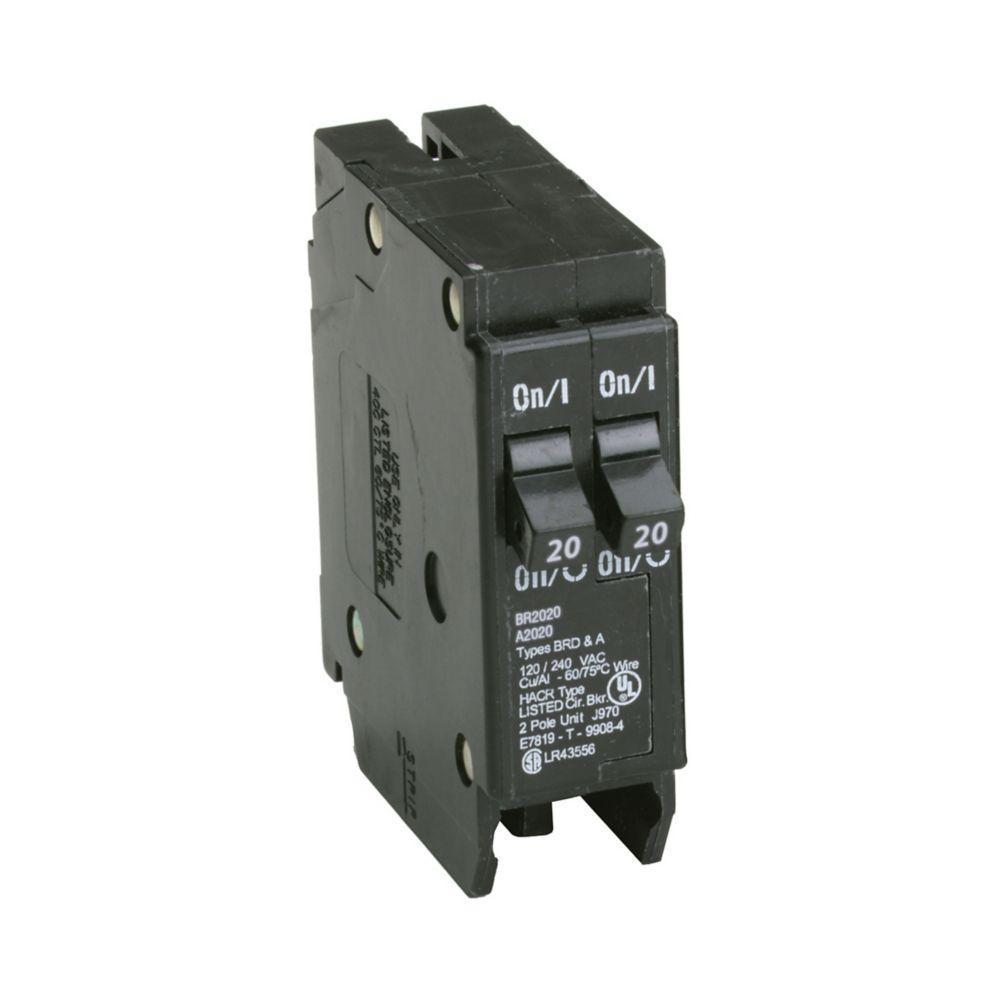

EATON BR2020 Type BR Circuit Breaker, 120 V AC, (2) 20 A, 10 kA Interrupt, 1 Poles, Thermal Magnetic Trip
Eatonās BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.
-
BrandEATON
-
UPC786676370257
-
Manufacturer Part NumberBR2020
-
CountryUSA
-
Temperature Rating600 to 750 deg C
-
Trip TypeThermal Magnetic
-
TypeType BR
-
Mounting TypePlug-On
-
Voltage Rating120 V AC
-
Amperage Rating(2) 20 A
-
Wire Size14 to 4 AWG
-
Number of Poles1
-
Dimensions3 in L x 1 in W x 3 in H
-
Interrupt Rating10 kA
-
Enclosure TypeNEMA 1/4X/3R
-
Phase1
- Twin neutral design located in wireway, away from circuit breakers, means easier wiring and balancing of the load
- Extra 1-1/2 in knockout for bundling allows maximum wiring gutter space for ease of wiring in compliance with NEC requirements
- One-piece roll formed metal backpan with circuit breaker alignment notches ensures accurately aligned breaker and bus tabs
- Standard 14-3/8 in W enclosures fit snugly between wall studs
- Tangential main knockout eliminates the need for conduit offsets which permits faster, easier installation
- BR loadcenters feature RobertsonĀ® slotted square combo screw heads, which means only one screwdriver is need for installation
| Competitor Name | Cross-Reference Number |
|---|---|
| Ferguson | CBR2020 |
| 559067 |
-
Alternative Part Number7435113
-
UNSPSC39121601
-
IDEA Index ID7435113
-
Package DescriptionEACH
-
Standards/ApprovalsUL 489,Federal Specifications Classification W-C375
-
Warranty10 years
-
Specification Sheet
-
Owners/User Manual
