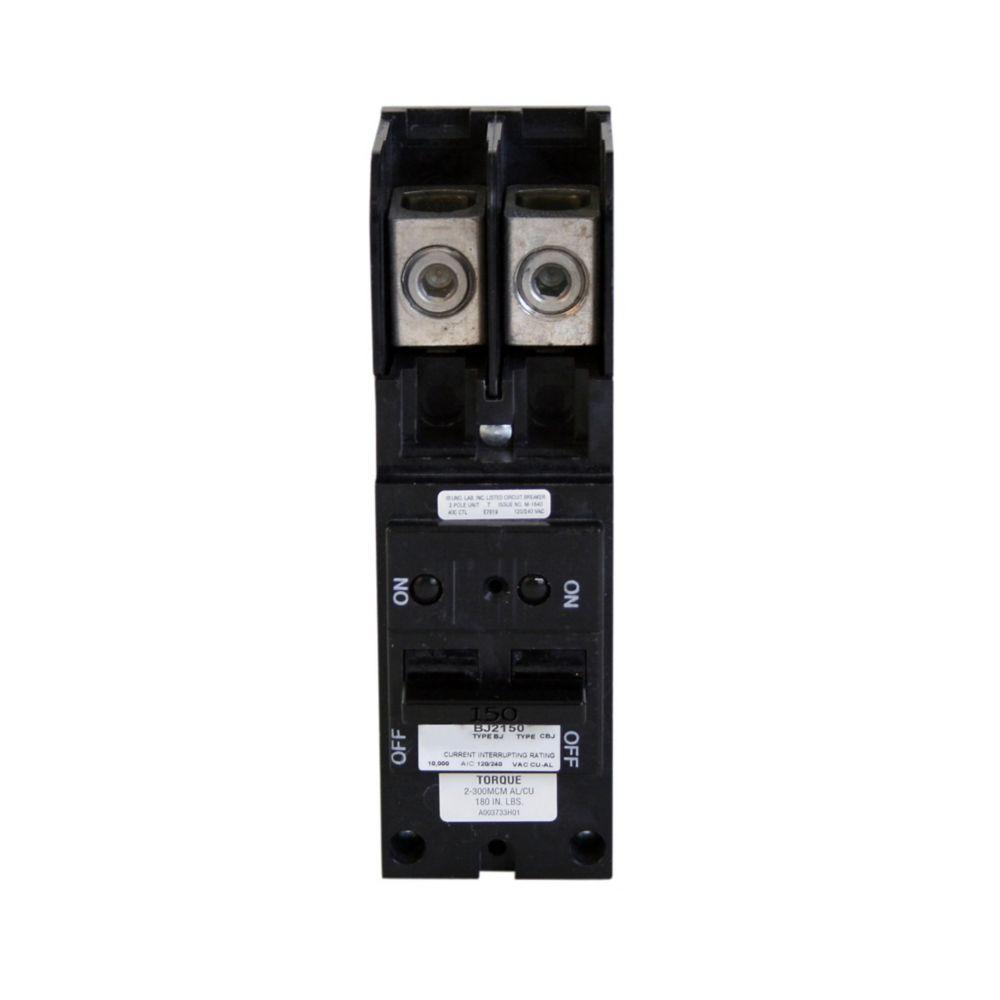

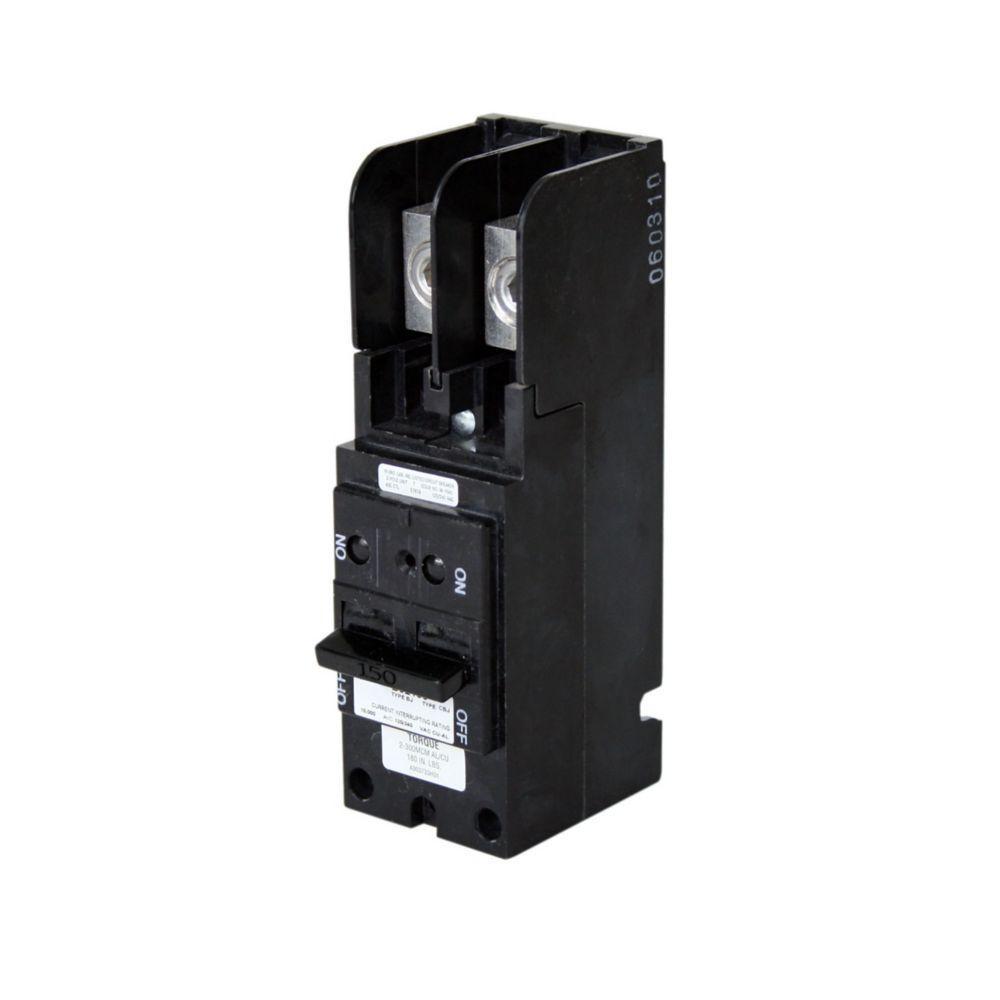

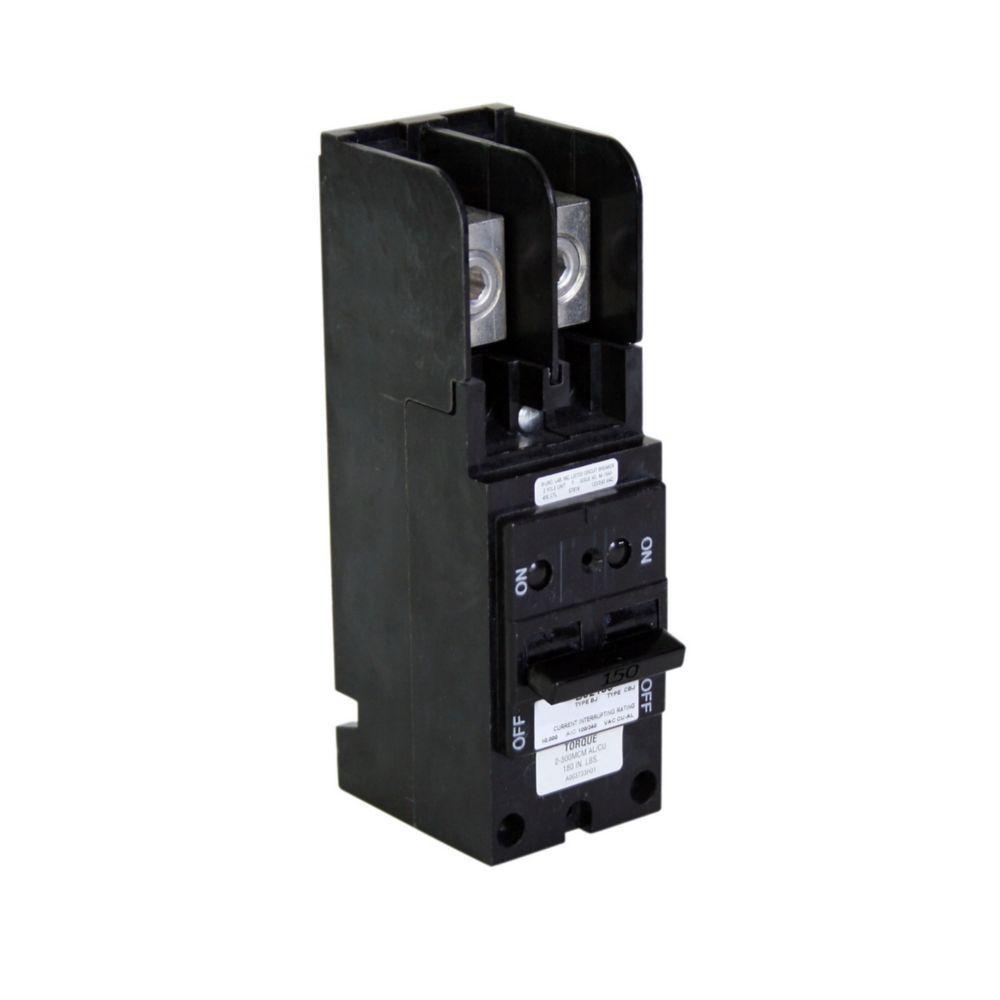

EATON BJ2150 Type BJ Sub Feed Molded Case Circuit Breaker, 120/240 V AC, 150 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Eaton's main circuit breakers are used in a variety of applications including the main or emergency disconnect on the outside of a house, a tenant main breaker in group metering stacks and feed-through lug blocks specifically designed for sub-feeding from an existing panel. Main breakers are available with a variety of accessories including shunt trip, bell alarms and auxiliary switches.
-
BrandEATON
-
UPC786676367103
-
Manufacturer Part NumberBJ2150
-
CountryUSA
-
Temperature Rating75 deg F
-
Trip TypeThermal Magnetic
-
TypeType BJ Sub Feed
-
Connection TypePlug-On
-
Mounting TypePlug-On
-
Voltage Rating120/240 V AC
-
Amperage Rating150 A
-
Wire Size2 AWG to 300 kcmil Copper/Aluminum
-
Number of Poles2
-
Dimensions6-1/2 in L x 3-1/2 in W x 2-1/2 in H
-
Interrupt Rating10 kA
-
Alternative Part Number7434624
-
UNSPSC39121601
-
IDEA Index ID7434624
-
Package DescriptionEACH
-
Standards/ApprovalsUL 489,Federal Specifications Classification W-C375
-
Specification Sheet
-
Owners/User Manual
