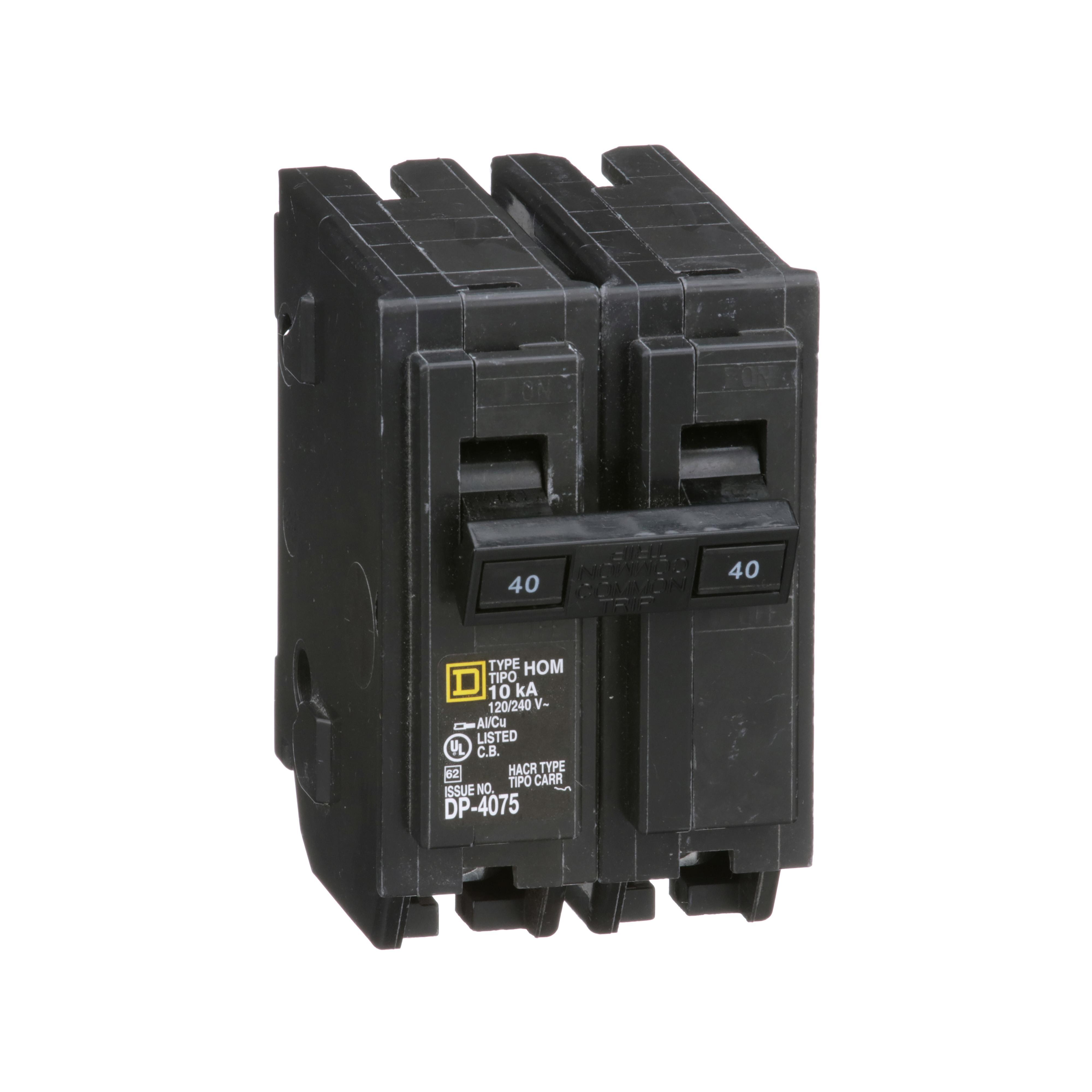

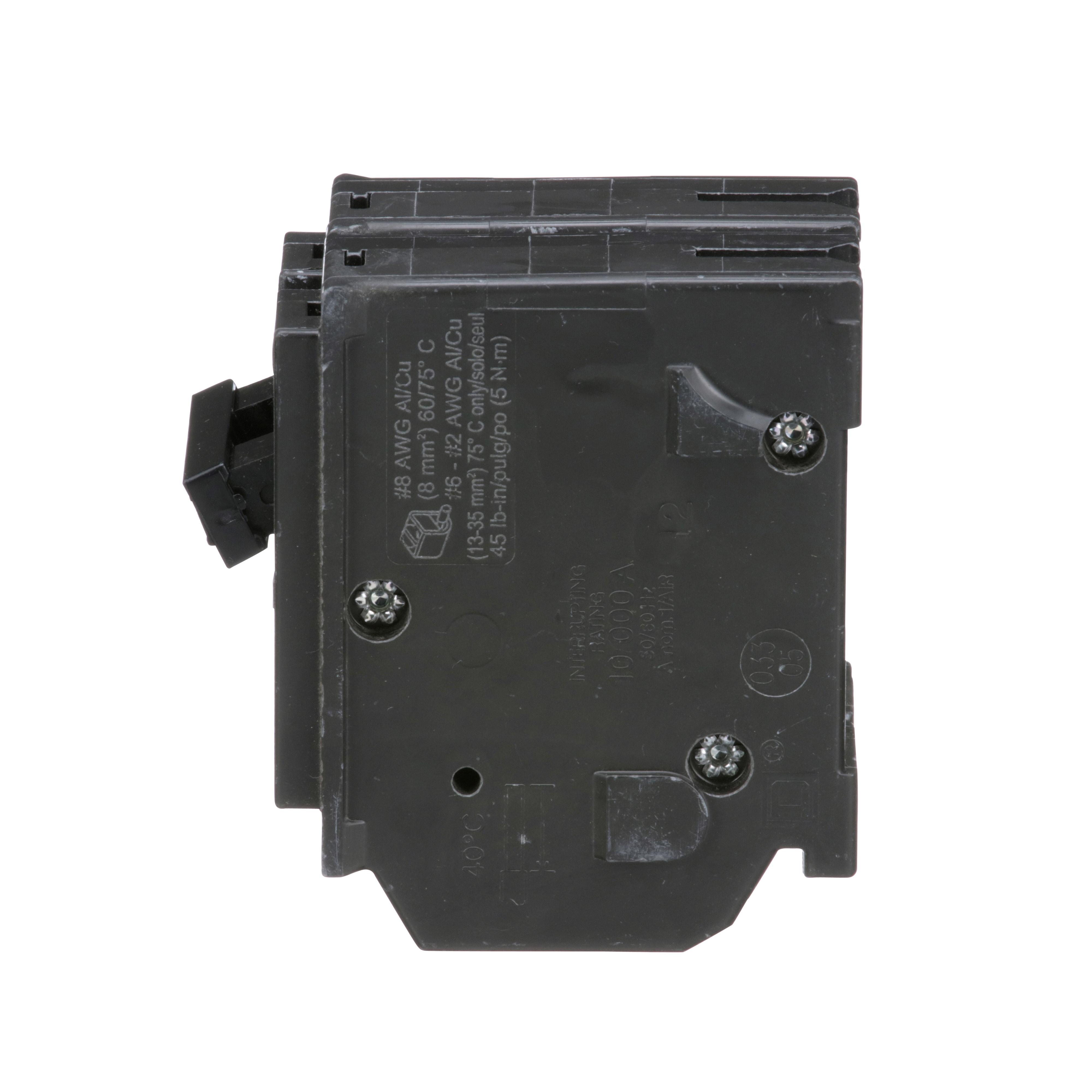

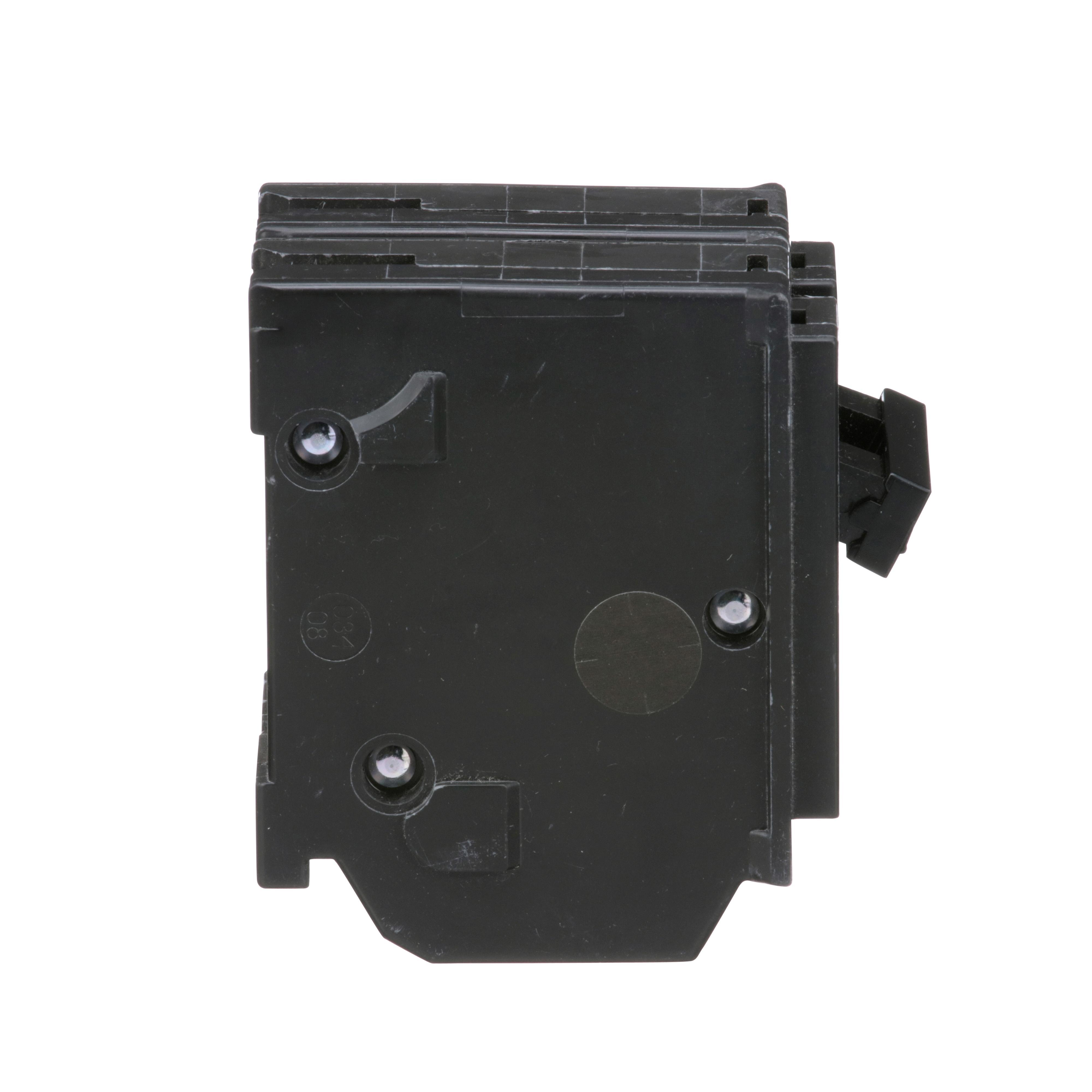

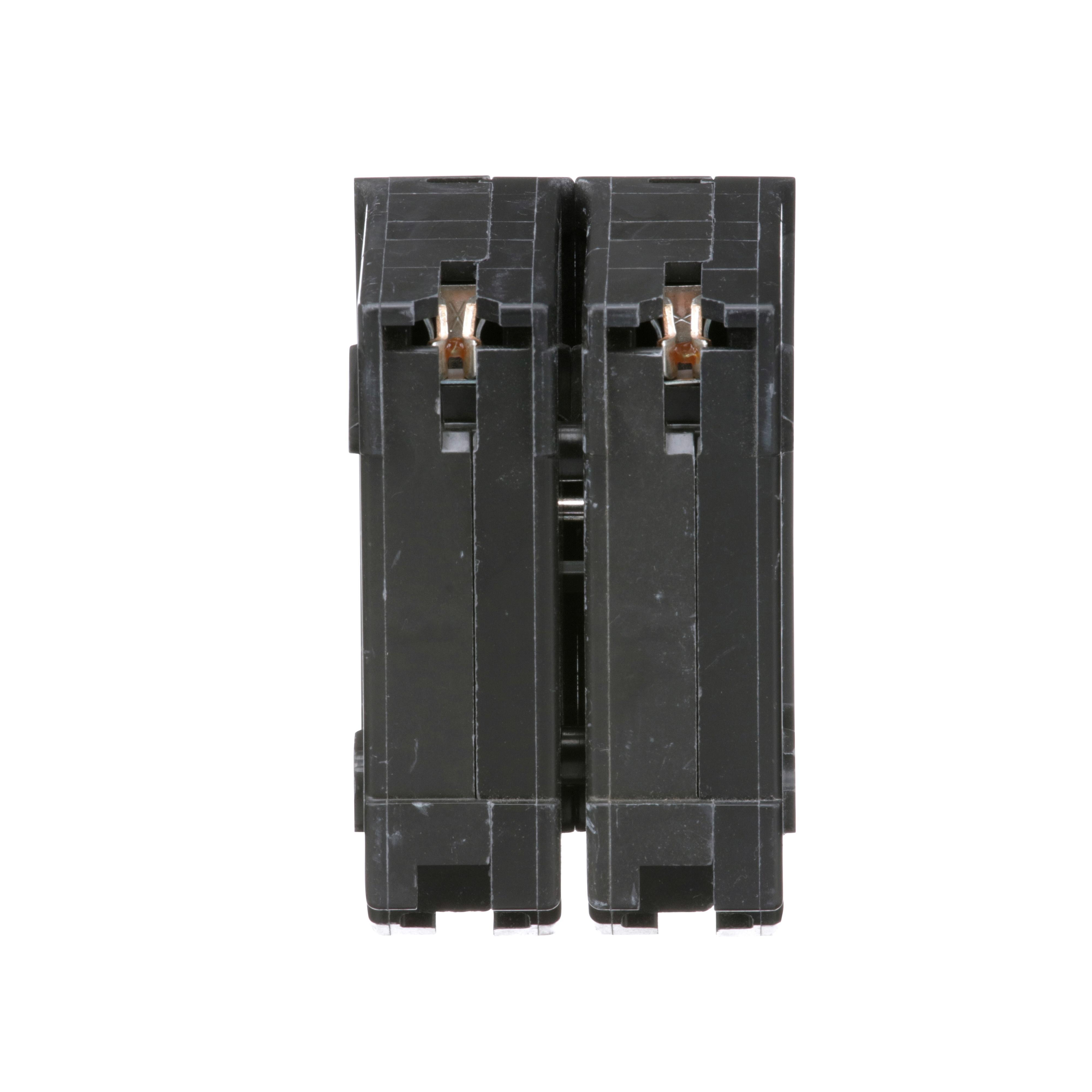

Square-D 40-AMP 2-POLE CIRCUIT BREAKERS SQU HOM-2-40
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 40A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs. The box lugs will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.
-
BrandSquare Dâ„¢
-
UPC785901065302
-
Manufacturer Part NumberHOM240
-
CountryUSA|Canada
-
Temperature Rating104 deg F
-
FrameHOM
-
Frequency Rating50/60 Hz
-
Trip TypeThermal Magnetic
-
TypeStandard
-
Connection TypeTerminal Screw
-
Mounting TypePlug-On
-
Voltage Rating120/240 V AC
-
Amperage Rating40 A
-
Wire Size8 to 2 AWG
-
Number of Poles2
-
Dimensions2.98 in L x 2 in W x 3.13 in H
-
Interrupt Rating10 kA
-
Phase1
- Easy plug on design with SE Homeline Loadcenters
- Square D™ offers Homeline™ a wide range of circuit breakers to meet all National Electrical Code® requirements and provide superior electrical safety
- Homelineâ„¢ load centers accept plug-on neutral, pigtail, full size and tandem circuit breakers on every space
- Saves wire fully distributed split neutral bar
- Frees gutter space no pigtails
- Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
- Faster and easier wiring, all spaces accept tandems
- Square Dâ„¢ Homelineâ„¢ circuit breakers are in a 1 in wide format for 1-pole circuit breakers
- Square D offers Homeline a wide range of circuit breakers to meet all National Electric Code requirements and provide superior electrical safety
- Faster installation - Fewer connections
- Multiple applications - Homeline Circuit Breakers offer a full range of amperage, poles, and advanced function devices that offer superior Arc Fault, Combination Arc Fault (CAFI), and Ground Fault (Class A, GFCI), and Dual Function (CAFI and GFCI) Protection
- 8 - 2 AWG copper/aluminum
- K-Curve trip
- Standard
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 1D356 |
-
Alternative Part Number8001744
-
UNSPSC39121603
-
IDEA Index ID8001744
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|UL Listed|CSA Certified|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov
-
WarrantyLifetime
-
RoHS
-
Specification Sheet
-
Owners/User Manual
